Frame Elements of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

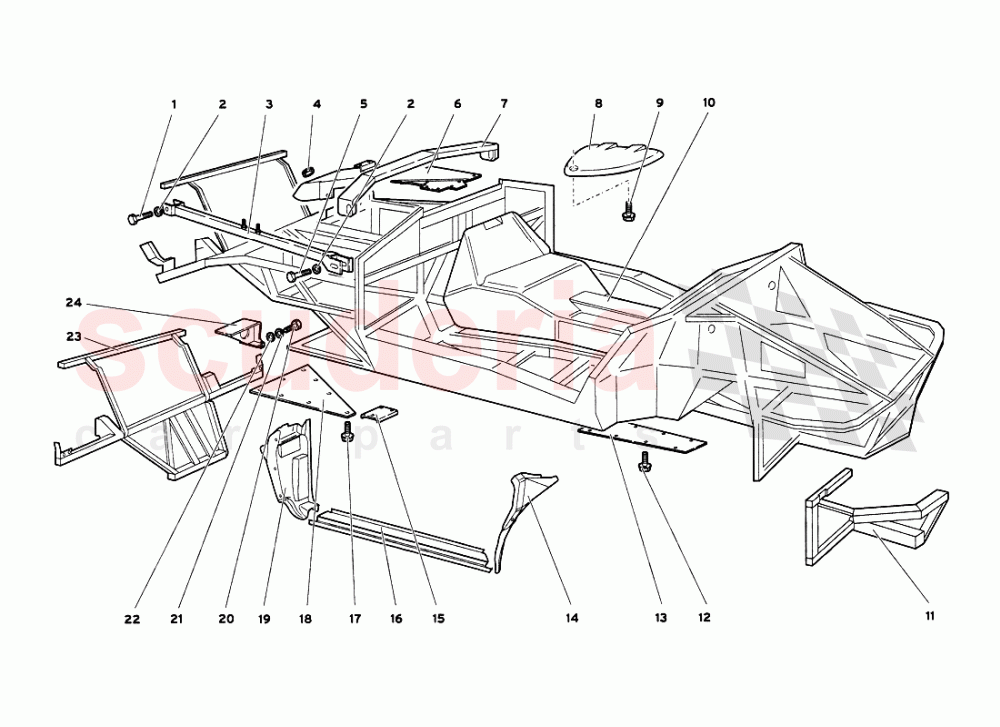

Lamborghini Diablo VT 6.0 (2000-2001) - Frame Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0147519	SCREW M8X50	N0147519 SCREW M8X50	$12.84	2
002	8400820	WASHER	8400820 WASHER	$17.74	4
003	4133595	LEFT CROSSRAIL	4133595 LEFT CROSSRAIL	$413.15 MSRP: ~~430.00~~ (3.9% off)	1
003	4133596	RIGHT CROSSRAIL	4133596 RIGHT CROSSRAIL	$413.15 MSRP: ~~430.00~~ (3.9% off)	1
004	8611606	GASKET	8611606 GASKET	$1.74 MSRP: ~~7.04~~ (75.3% off)	2
005	8700846	SCREW	8700846 SCREW	$2.20	2
006	68006652	RH SUPPORT	68006652 RH SUPPORT	-	1	Enquire
006	68006653	LH SUPPORT	68006653 LH SUPPORT	$268.00	1
007	4131512	CROSSRAIL	4131512 CROSSRAIL	$413.15 MSRP: ~~430.00~~ (3.9% off)	1
008	41006880	PANEL	41006880 PANEL	$111.55	1
009	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	$44.78	1
010	41007855	TUNNEL COVER	41007855 TUNNEL COVER (Valid for GB - March 2001)	$3,678.65	1
010	41006469	TUNNEL COVER	41006469 TUNNEL COVER	$3,672.45	1
010	41007855	TUNNEL COVER	41007855 TUNNEL COVER (Valid for AUSTRALIA - March 2001)	$3,678.65	1
011	4137963	FRONT LH FRAME	4137963 FRONT LH FRAME	$953.89	1
011	4137964	FRONT RH FRAME	4137964 FRONT RH FRAME	$953.89	1
012	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	8
013	68007237	PANEL	68007237 PANEL	$90.32	1
014	9409137	FRONT LH COVERING	9409137 FRONT LH COVERING	$517.36	1
014	9409136	FRONT RH COVERING	9409136 FRONT RH COVERING	$517.36	1
015	4133887	REINFORCEMENT	4133887 REINFORCEMENT	$32.73	2
016	9409134	MIDDLE RH COVERING	9409134 MIDDLE RH COVERING	$114.91	1
016	9409135	MIDDLE LH COVERING	9409135 MIDDLE LH COVERING	$114.91	1
017	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	$44.78	14
018	41006892	LH PANEL	41006892 LH PANEL	$62.42	1
018	41006893	RH PANEL	41006893 RH PANEL	$62.42	1
019	9409132	REAR RH COVERING	9409132 REAR RH COVERING	$624.07 MSRP: ~~631.00~~ (1.1% off)	1
019	9409133	REAR LH COVERING	9409133 REAR LH COVERING	$689.81	1
020	8100812	SCREW	8100812 SCREW	$0.36 MSRP: ~~7.33~~ (95.1% off)	2
021	8410820	WASHER	8410820 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
022	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	2
023	41004924	REAR FRAME	41004924 REAR FRAME	$9,879.01	1
024	4137167	SUPPORT - SUPPORTO SERBATOIO BENZINA	4137167 SUPPORT - SUPPORTO SERBATOIO BENZINA	-	1	Enquire
