Rear Body Elements

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Rear Body Elements

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

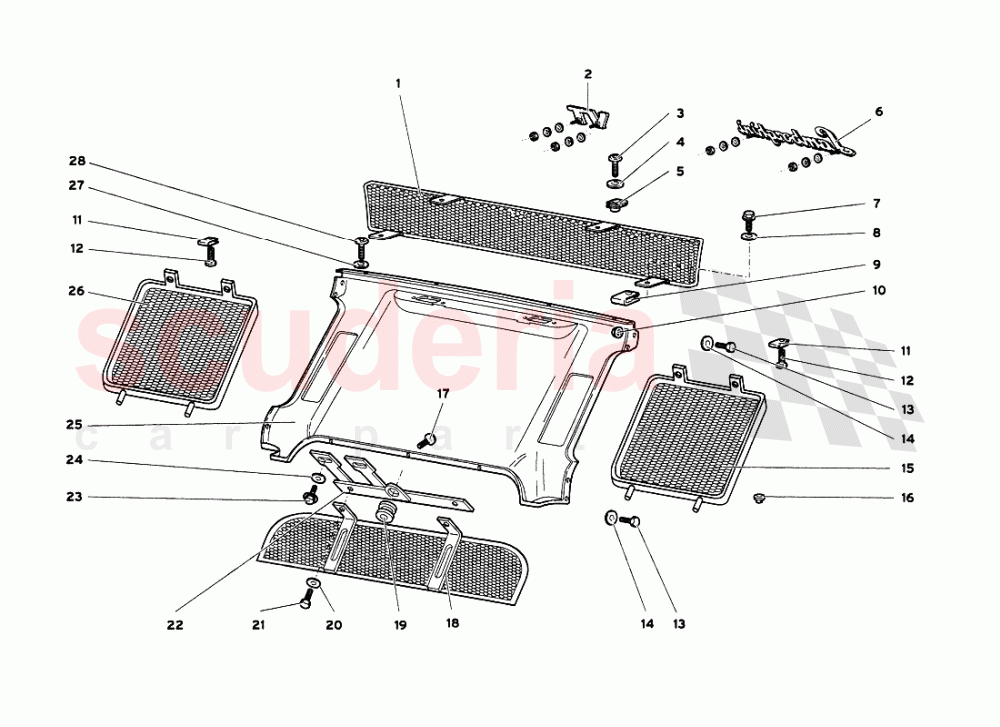

Rear Body Elements of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 66005529
NET 		$1,161.30 (1.2% off) 1
002 94006657
VT ORNAMENT 		$182.37 1
003 8740685
SCREW
IN STOCK 		$21.42 3
004 8400629
WASHER 		$1.44 (79.7% off) 4
005 N90327506
SPEED NUT
IN STOCK 		$0.94 3
006 94005368
LAMBORGHINI ORNAMENT 		$177.41 (3.8% off) 1
007 8700444
SCREW
IN STOCK 		$0.13 (98.2% off) 2
008 N91109201
WASHER
IN STOCK 		$1.55 (73.5% off) 2
009 WHT000916A
CLIP 		$15.41 2
010 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.21 4
011 WHT000916A
CLIP 		$15.41 4
012 8700437
SCREW 		- 4 Enquire
013 8100621
SCREW
IN STOCK 		$0.12 (98.4% off) 8
014 WHT002961
WASHER
IN STOCK 		$0.42 8
015 66006683
LH GRILLE 		$793.24 1
016 66002463
BUSHING 		$3.43 (2% off) 4
017 8740685
SCREW
IN STOCK 		$21.42 3
018 66006659
GRILLE 		$413.15 (1.2% off) 1
019 8611202
RUBBER RING 		- 1 Enquire
020 N91109201
WASHER
IN STOCK 		$1.55 (73.5% off) 2
021 8100502
SCREW
IN STOCK 		$0.16 2
022 66006938
SECURING BRACKET 		$98.89 1
023 N10536103
SCREW M8X16
IN STOCK 		$0.98 (86.5% off) 2
024 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.55 2
025 9410200
REAR PANEL 		$1,929.29 (1.1% off) 1
026 66006682
RH GRILLE 		$954.11 1
027 8400629
WASHER 		$1.44 (79.7% off) 4
028 8100662
SCREW 		- 4 Enquire
