Bumpers of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

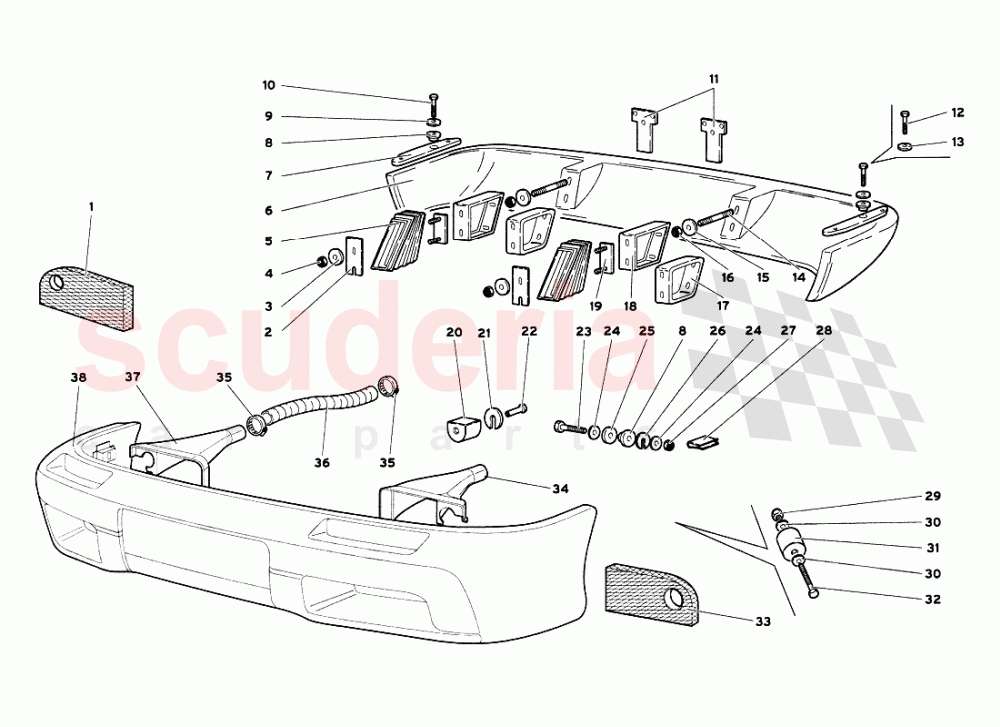

Lamborghini Diablo VT 6.0 (2000-2001) - Bumpers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	93007282	RH NET	93007282 RH NET	-	1	Enquire
002	9463229	PLATE	9463229 PLATE	-	2	Enquire
003	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
004	N0111849	NUT	N0111849 NUT	-	4	Enquire
005	9463204	SHIELD	9463204 SHIELD	-	2	Enquire
006	93006361	REAR BUMPER	93006361 REAR BUMPER	-	1	Enquire
006	93007721	REAR BUMPER	93007721 REAR BUMPER (Valid for ARABIA - March 2001)	-	1	Enquire
007	93003506	SPACER	93003506 SPACER	-	2	Enquire
008	9463109	WASHER	9463109 WASHER	-	4	Enquire
009	WHT001942	WASHER	WHT001942 WASHER	-	2	Enquire
010	9463217	SPRING	9463217 SPRING	-	2	Enquire
011	9466112	BRACKET	9466112 BRACKET	-	2	Enquire
012	8100842	SCREW	8100842 SCREW (Valid for ARABIA - March 2001)	-	2	Enquire
013	7063142	WASHER	7063142 WASHER (Valid for ARABIA - March 2001)	-	4	Enquire
014	8300820	STUD	8300820 STUD	-	4	Enquire
015	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	4	Enquire
016	8200804	NUT M8	8200804 NUT M8	-	4	Enquire
017	9463213	SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO	9463213 SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO (Valid for ARABIA - March 2001)	-	2	Enquire
018	9463208	SUPPORT - SUPPORTO	9463208 SUPPORT - SUPPORTO	-	2	Enquire
019	9463209	PLATE	9463209 PLATE	-	2	Enquire
020	9963122	RUBBER PAD	9963122 RUBBER PAD	-	4	Enquire
021	7063145	SHIM	7063145 SHIM use : 410807567	-	1	Enquire
021	410807255	5.0 MM SHIM	410807255 5.0 MM SHIM	-	1	Enquire
021	9463115	SHIM	9463115 SHIM	-	1	Enquire
022	9463117	SCREW	9463117 SCREW	-	4	Enquire
023	8100810	SCREW	8100810 SCREW	-	2	Enquire
024	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
025	7063142	WASHER	7063142 WASHER	-	2	Enquire
026	9463111	SPACER	9463111 SPACER	-	1	Enquire
026	9463110	SPACER	9463110 SPACER	-	1	Enquire
027	N0111849	NUT	N0111849 NUT	-	2	Enquire
028	8220506	CLIP	8220506 CLIP	-	14	Enquire
029	N0111849	NUT	N0111849 NUT (Valid for ARABIA - March 2001)	-	2	Enquire
030	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5 (Valid for ARABIA - March 2001)	-	4	Enquire
031	9463125	RUBBER PAD	9463125 RUBBER PAD (Valid for ARABIA - March 2001)	-	4	Enquire
032	8100861	SCREW M8X90	8100861 SCREW M8X90 (Valid for ARABIA - March 2001)	-	2	Enquire
033	93007283	LHNET	93007283 LHNET	-	1	Enquire
034	93006360	LH CONVEYOR	93006360 LH CONVEYOR	-	1	Enquire
035	8837501	STRAP	8837501 STRAP	-	4	Enquire
036	9453133	PIPE	9453133 PIPE	-	2	Enquire
037	93006359	RH CONVEYOR	93006359 RH CONVEYOR	-	1	Enquire
038	93006333	FRONT BUMPER	93006333 FRONT BUMPER	-	1	Enquire
