Windscreen Wiper of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Windscreen Wiper

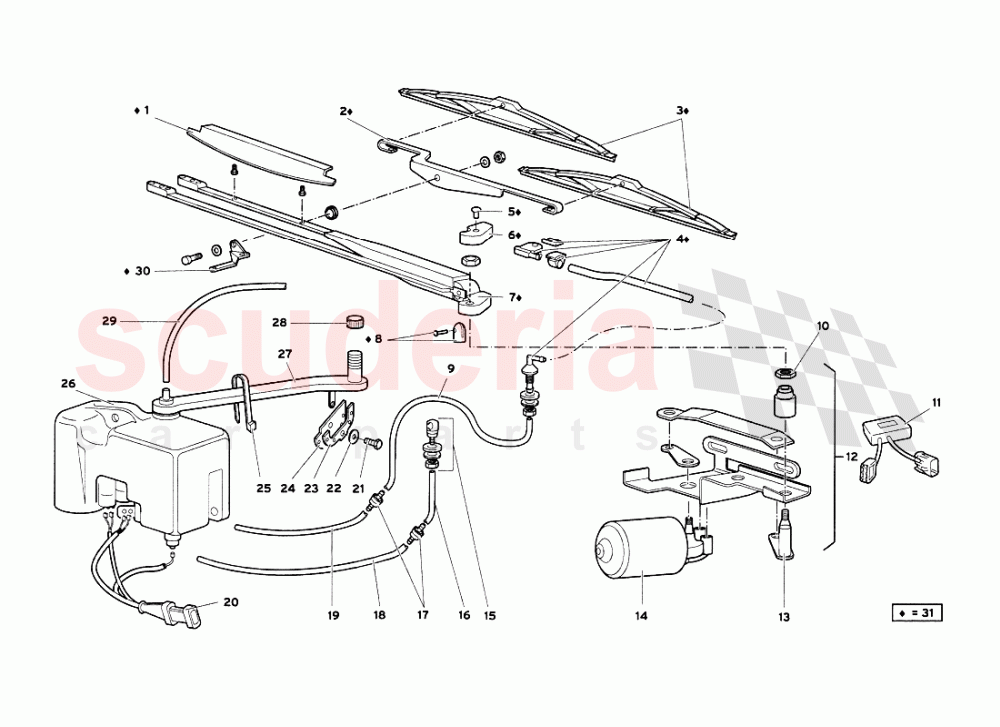

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	71003279	FIN	71003279 FIN	$36.03	1
002	71003213	FORK	71003213 FORK	-	1	Enquire
003	71003278	WIPER BRUSH	71003278 WIPER BRUSH	$34.89	2
004	418955215	WINDSCREEN WASHER	418955215 WINDSCREEN WASHER	$137.10	1
005	WHT003302	SCREW M4X6	WHT003302 SCREW M4X6	$1.81 MSRP: ~~7.10~~ (74.5% off)	1
006	9420137	SHIELD	9420137 SHIELD	-	1	Enquire
007	71003277	WIPER ARM	71003277 WIPER ARM	$1,075.47	1
008	71003938	COUPLING	71003938 COUPLING	-	1	Enquire
009	9420211	PIPE	9420211 PIPE	$7.31	1
010	8200828	NUT	8200828 NUT	-	1	Enquire
011	61006414	INTERMITTENCE	61006414 INTERMITTENCE	$601.74	1
012	71005164	COMPLETE WINDSCREEN WIPER GEARMOTOR	71005164 COMPLETE WINDSCREEN WIPER GEARMOTOR	$591.83	1
013	71005538	PIN	71005538 PIN	-	1	Enquire
014	9420112	ELECT MOTOR	9420112 ELECT MOTOR	$602.99 MSRP: ~~629.00~~ (4.1% off)	1
015	400955985	NOZZLE	400955985 NOZZLE	$5.79	1
016	71002439	PIPE	71002439 PIPE	$13.83	1
017	9420210	VALVE	9420210 VALVE	$6.45	2
018	9420201	PIPE	9420201 PIPE	$13.40 MSRP: ~~13.60~~ (1.5% off)	1
019	9420201	PIPE	9420201 PIPE	$13.40 MSRP: ~~13.60~~ (1.5% off)	1
020	61008781	TANK HARNESS	61008781 TANK HARNESS	$26.49	1
021	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	$44.78	1
022	WHT003093	Washer	WHT003093 Washer	$0.48 MSRP: ~~7.33~~ (93.5% off)	1
023	71007711	SECURING PLATE	71007711 SECURING PLATE	$31.57 MSRP: ~~31.95~~ (1.2% off)	1
024	71007708	SEAL	71007708 SEAL	$15.82 MSRP: ~~16.05~~ (1.4% off)	1
025	8830306	CLAMP	8830306 CLAMP	$3.25	1
026	71005597	WINDSCREEN WASHER RESERVOIR	71005597 WINDSCREEN WASHER RESERVOIR	$1,662.53	1
027	71005420	LIQUID FEED LINE	71005420 LIQUID FEED LINE	$22.39 MSRP: ~~22.65~~ (1.1% off)	1
028	71005419	TANK PLUG	71005419 TANK PLUG	$5.33 MSRP: ~~5.45~~ (2.2% off)	1
029	71007573	PIPE	71007573 PIPE	$11.17 MSRP: ~~11.30~~ (1.2% off)	1
030	71003164	BRACKET	71003164 BRACKET	-	1	Enquire
031	71003276	WIND SCREEN WIPER KIT	71003276 WIND SCREEN WIPER KIT	$1,491.93	1
