Doors 1 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

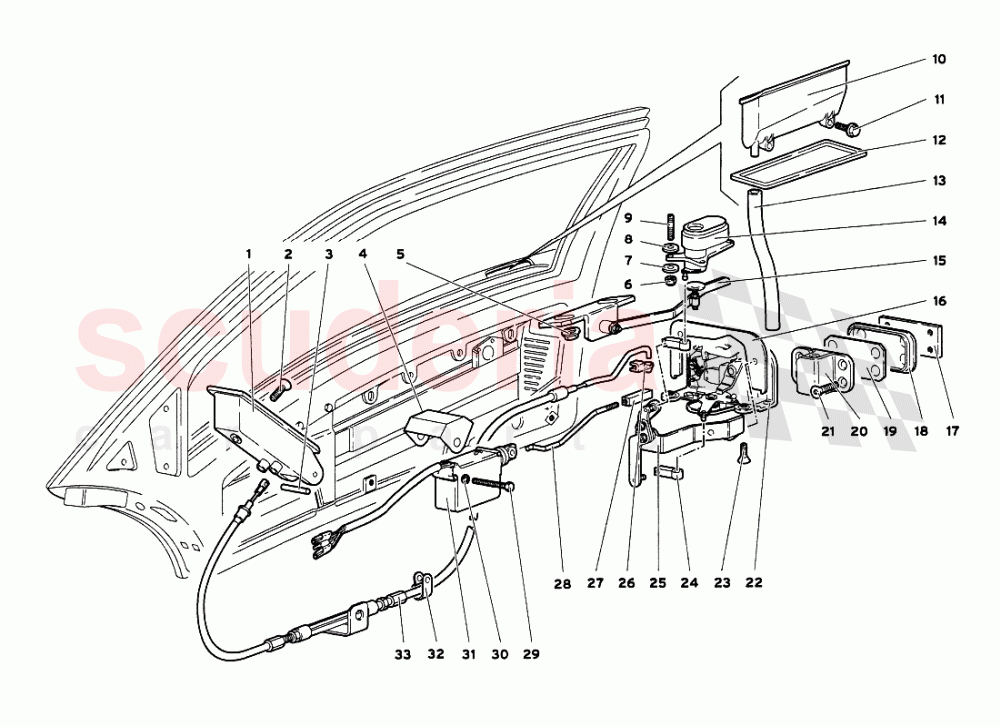

Lamborghini Diablo VT 6.0 (2000-2001) - Doors 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400827185	HANDLE	400827185 HANDLE	$1,868.29	2
002	8700539	SCREW	8700539 SCREW	-	2	Enquire
003	8900305	PIN - SPINA	8900305 PIN - SPINA	$0.27 MSRP: ~~7.35~~ (96.3% off)	2
004	9921112	RIGHT SHIELD	9921112 RIGHT SHIELD	$85.50	1
004	9921113	LEFT SHIELD	9921113 LEFT SHIELD	$15.63 MSRP: ~~15.80~~ (1.1% off)	1
005	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.21	4
006	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	6
007	8400401	WASHER	8400401 WASHER	$0.13	6
008	8400401	WASHER	8400401 WASHER	$0.13	1
009	9921221	STUD	9921221 STUD	$4.29 MSRP: ~~4.40~~ (2.5% off)	2
009	8300403	STUD	8300403 STUD	$26.37 MSRP: ~~27.55~~ (4.3% off)	4
010	9421201	LEFT HANDLE	9421201 LEFT HANDLE	$360.44	1
010	9421200	RIGHT HANDLE	9421200 RIGHT HANDLE	$343.79	1
011	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	4
012	9421712	RIGHT GASKET	9421712 RIGHT GASKET	$5.47 MSRP: ~~5.55~~ (1.4% off)	1
012	9421713	LEFT GASKET	9421713 LEFT GASKET	$13.22	1
013	9421245	PIPE	9421245 PIPE	$17.89	2
014	72005036	LH & RH DOOR BUTTONS	72005036 LH & RH DOOR BUTTONS	$502.27	1
015	9921224	LEFT IDLE LEVER	9921224 LEFT IDLE LEVER	$243.81 MSRP: ~~246.50~~ (1.1% off)	1
015	72008667	RH IDLE LEVER	72008667 RH IDLE LEVER	$292.19	1
016	9421272	LEFT GASKET	9421272 LEFT GASKET	-	1	Enquire
016	9421273	RIGHT GASKET	9421273 RIGHT GASKET	-	1	Enquire
017	7021253	PLATE	7021253 PLATE	$714.63	2
018	410837899	ORNAMENT IN STOCK	410837899 ORNAMENT IN STOCK	$15.91	2
019	410837963	SPACER IN STOCK	410837963 SPACER IN STOCK	$16.19	4
019	410837964	SPACER	410837964 SPACER	$15.73	4
020	410831407A	Hinge Half Left Hand IN STOCK	410831407A Hinge Half Left Hand IN STOCK	$489.25	1
020	410831408A	Hinge Half Right hand IN STOCK	410831408A Hinge Half Right hand IN STOCK	$862.90	1
021	8700610	SCREW IN STOCK	8700610 SCREW IN STOCK	$0.67 MSRP: ~~7.29~~ (90.8% off)	8
022	9421278	RH LOCK	9421278 RH LOCK	$1,229.52	1
022	9421279	LH LOCK	9421279 LH LOCK	$528.55	1
023	8700610	SCREW IN STOCK	8700610 SCREW IN STOCK	$0.67 MSRP: ~~7.29~~ (90.8% off)	8
024	9421214	COUPLING	9421214 COUPLING	-	4	Enquire
025	9921225	RIGHT IDLE LEVER	9921225 RIGHT IDLE LEVER	$358.24	1
025	9921226	LEFT IDLE LEVER	9921226 LEFT IDLE LEVER	$243.81 MSRP: ~~246.50~~ (1.1% off)	1
026	9421251	CLIP	9421251 CLIP	-	2	Enquire
027	7021016	PAWL	7021016 PAWL	-	2	Enquire
028	9921211	LEFT TIE ROD	9921211 LEFT TIE ROD	$22.03	1
028	9921204	RIGHT TIE ROD	9921204 RIGHT TIE ROD	$22.03	1
029	8100404	SCREW	8100404 SCREW	$0.64	4
030	8400401	WASHER	8400401 WASHER	$0.13	4
031	R1320008	RHS door actuator	R1320008 RHS door actuator	$468.99	1
031	R1320007	LHS door actuator	R1320007 LHS door actuator	$988.63	1
032	8830907	STRAP IN STOCK	8830907 STRAP IN STOCK	$0.49 MSRP: ~~7.30~~ (93.3% off)	6
033	9921010	RIGHT CABLE	9921010 RIGHT CABLE	$96.69	1
033	9921011	LEFT CABLE	9921011 LEFT CABLE	$96.69	1
