Brake System of Ferrari Ferrari 430 Challenge (2006)

View All

Ferrari 430 Challenge (2006) - Brake System

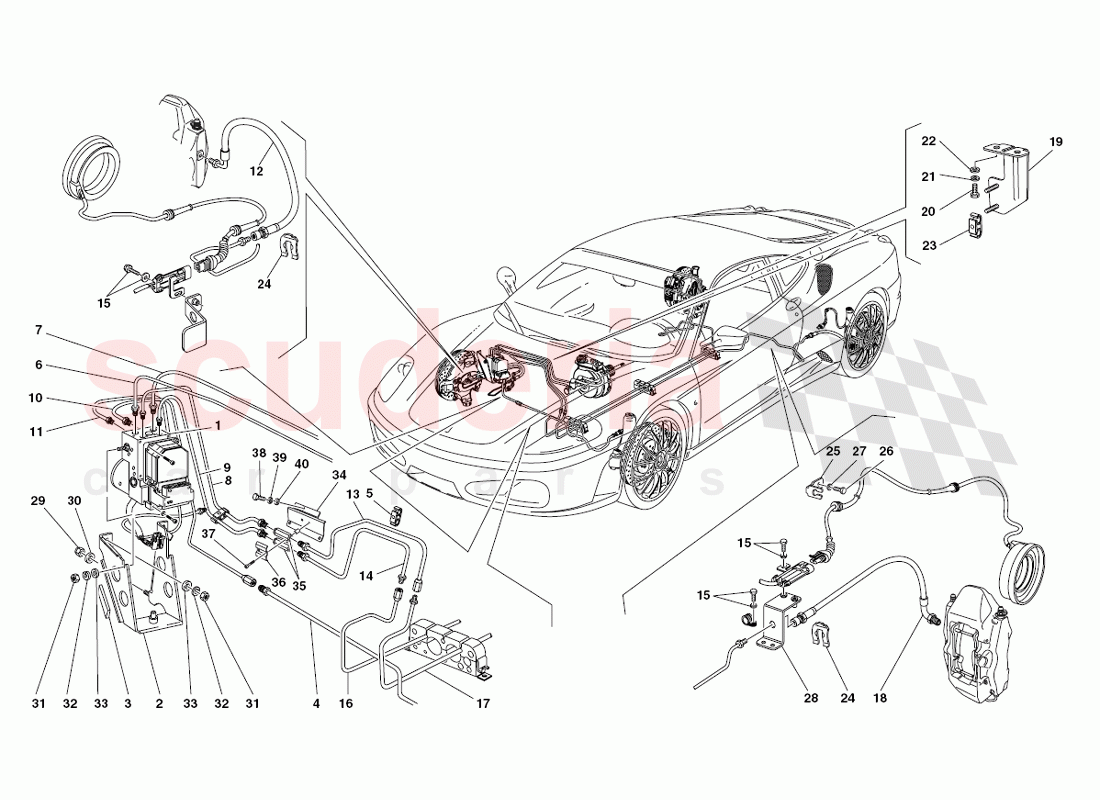

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	224795	ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179412	CONTROL STATION SUPPORTING BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	197149	VIBRATION DAMPER	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	205295	INTERMEDIATE PIPE	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	212645	CLIP	$3.19	To Order

Photo	Part No	Description	Price (each)	Stock
	224268	BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	224269	BRAKE PIPE FROM REAR PUMP TO CONTROL STATION	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	225353	PIPE FROM CONTROL STATION TO LH BRAKE REGULATOR	$8.59	To Order

Photo	Part No	Description	Price (each)	Stock
	225351	PIPE FROM CONTROL STATION TO RH BRAKE REGULATOR	$8.59	To Order

Photo	Part No	Description	Price (each)	Stock
	224726	PIPE FROM CONTROL STATION INTERMEDIATE PIPE	$6.16	To Order

Photo	Part No	Description	Price (each)	Stock
	224727	PIPE FROM CONTROL STATION TO RH FRONT BRAKE PIPE	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	225857	FRONT HOSE	$117.12	To Order

Photo	Part No	Description	Price (each)	Stock
	225355	BRAKE PIPE FROM REGULATOR TO LH UNION	$27.21	To Order

Photo	Part No	Description	Price (each)	Stock
	225352	BRAKE PIPE FROM REGULATOR TO RH UNION	$8.59	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW	$7.60	To Order

Photo	Part No	Description	Price (each)	Stock
	205093	PIPE TO REAR RH HOSE	$148.16	To Order

Photo	Part No	Description	Price (each)	Stock
	205094	TUBE TO REAR LH HOSE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	225858	PIPE	$154.03	To Order

Photo	Part No	Description	Price (each)	Stock
	207278	BRAKE PIPE MOUNTING BRACKET	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	212645	CLIP	$3.19	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	178938	CABLE MOUNTING	$32.17	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	185283	REAR MOUNTING	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	182549	BRACKET FOR BRAKING REGULATOR SUPPORTING	$24.34	To Order

Photo	Part No	Description	Price (each)	Stock
	225350	BRAKING REGULATOR	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	225175	BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	224795	ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION	224795 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION	-	1	Enquire
2	179412	CONTROL STATION SUPPORTING BRACKET	179412 CONTROL STATION SUPPORTING BRACKET	$18.62	1
3	197149	VIBRATION DAMPER	197149 VIBRATION DAMPER	$0.44	1
4	205295	INTERMEDIATE PIPE	205295 INTERMEDIATE PIPE	$54.54	1
5	212645	CLIP	212645 CLIP	$3.19	2
6	224268	BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION	224268 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION	$42.98	1
7	224269	BRAKE PIPE FROM REAR PUMP TO CONTROL STATION	224269 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION	$59.35	1
8	225353	PIPE FROM CONTROL STATION TO LH BRAKE REGULATOR	225353 PIPE FROM CONTROL STATION TO LH BRAKE REGULATOR	$8.59	1
9	225351	PIPE FROM CONTROL STATION TO RH BRAKE REGULATOR	225351 PIPE FROM CONTROL STATION TO RH BRAKE REGULATOR	$8.59	1
10	224726	PIPE FROM CONTROL STATION INTERMEDIATE PIPE	224726 PIPE FROM CONTROL STATION INTERMEDIATE PIPE	$6.16	1
11	224727	PIPE FROM CONTROL STATION TO RH FRONT BRAKE PIPE	224727 PIPE FROM CONTROL STATION TO RH FRONT BRAKE PIPE	$5.58	1
12	225857	FRONT HOSE	225857 FRONT HOSE	$117.12	2
13	225355	BRAKE PIPE FROM REGULATOR TO LH UNION	225355 BRAKE PIPE FROM REGULATOR TO LH UNION	$27.21	1
14	225352	BRAKE PIPE FROM REGULATOR TO RH UNION	225352 BRAKE PIPE FROM REGULATOR TO RH UNION	$8.59	1
15	250657	SCREW	250657 SCREW	$7.60	6
16	205093	PIPE TO REAR RH HOSE	205093 PIPE TO REAR RH HOSE	$148.16	1
17	205094	TUBE TO REAR LH HOSE	205094 TUBE TO REAR LH HOSE	$336.95	1
18	225858	PIPE	225858 PIPE	$154.03	2
19	207278	BRAKE PIPE MOUNTING BRACKET	207278 BRAKE PIPE MOUNTING BRACKET	$20.84	1
20	10902424	SCREW	10902424 SCREW	$0.15 MSRP: ~~0.70~~ (78.6% off)	2
21	127494	WASHER	127494 WASHER (minimum order quantity = 20)	$0.08 MSRP: ~~0.68~~ (88.2% off)	2
22	12644424	WASHER	12644424 WASHER	$0.06 MSRP: ~~0.40~~ (85% off)	2
23	212645	CLIP	212645 CLIP	$3.19	2
24	116374	CLIP	116374 CLIP	$2.51 MSRP: ~~3.50~~ (28.3% off)	8
25	178938	CABLE MOUNTING	178938 CABLE MOUNTING	$32.17	2
26	10977524	SCREW	10977524 SCREW	$0.15	2
27	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
28	185283	REAR MOUNTING	185283 REAR MOUNTING	$224.63	2
29	147985	NUT	147985 NUT	$0.16 MSRP: ~~0.50~~ (68% off)	1
30	12638524	WASHER	12638524 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	1
31	14040711	NUT	14040711 NUT	$0.41	4
32	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
33	12638524	WASHER	12638524 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	4
34	182549	BRACKET FOR BRAKING REGULATOR SUPPORTING	182549 BRACKET FOR BRAKING REGULATOR SUPPORTING	$24.34	1
35	225350	BRAKING REGULATOR	225350 BRAKING REGULATOR	$258.00	2
36	225175	BRACKET	225175 BRACKET	$18.62	1
37	231622	SCREW	231622 SCREW	$0.36 MSRP: ~~0.50~~ (28% off)	2
38	14305324	SCREW	14305324 SCREW	$0.08	3
39	127494	WASHER	127494 WASHER (minimum order quantity = 20)	$0.08 MSRP: ~~0.68~~ (88.2% off)	3
40	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	3
