Lubrication System - Tank - heater exchange of Ferrari Ferrari 430 Challenge (2006)

View All

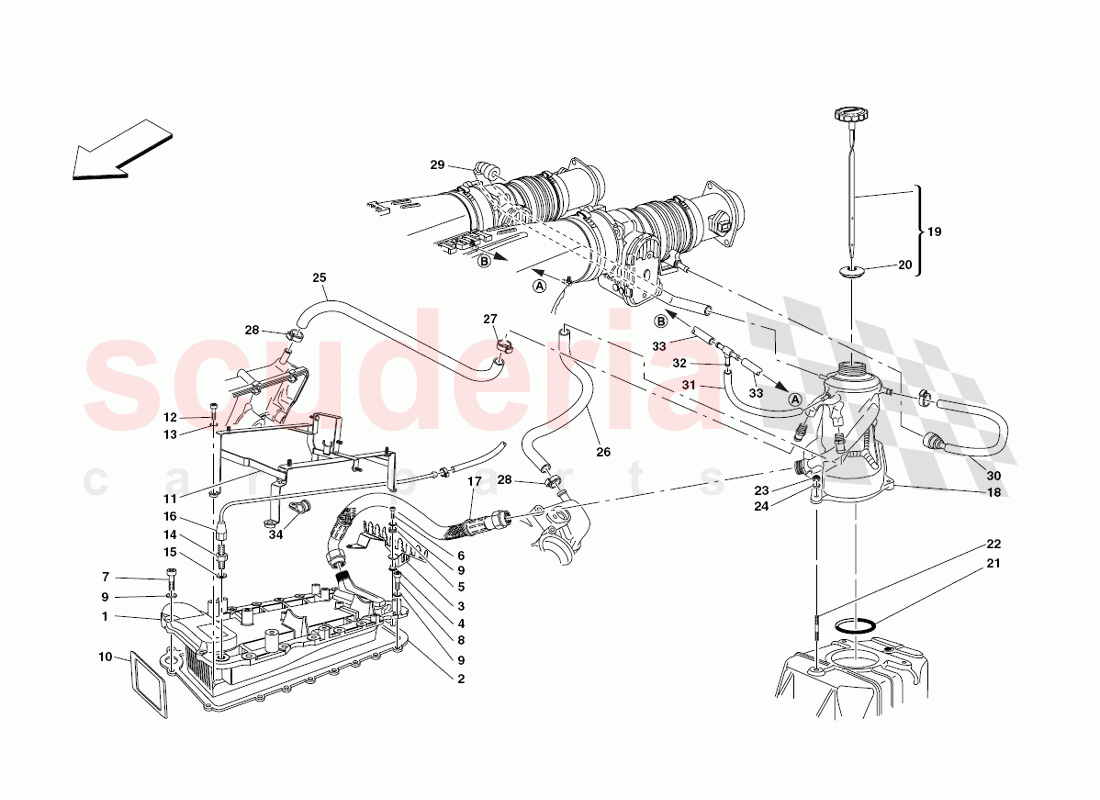

Ferrari 430 Challenge (2006) - Lubrication System - Tank - heater exchange

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	197150	HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247146	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	210388	CONNECTORS MOUNTING BRACKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1430562	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1430552	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1430542	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1119777	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322664	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	223408	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	192327	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211844	VENT PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	195351	OIL PIPE FROM ENGINE TO SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216061	WATER-OIL SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254573	TANK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211634	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13517124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211813	RH BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211814	LH BREATHER PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177996	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	216063	RH VAPOUR INTAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216064	LH VAPOUR INTAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195330	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	159539	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	197150	HEAT EXCHANGER	197150 HEAT EXCHANGER	-	1	Enquire
2	247146	GASKET IN STOCK	247146 GASKET IN STOCK	-	1	Enquire
3	210388	CONNECTORS MOUNTING BRACKET IN STOCK	210388 CONNECTORS MOUNTING BRACKET IN STOCK	-	1	Enquire
4	149707	SPACER IN STOCK	149707 SPACER IN STOCK	-	2	Enquire
5	177576	CABLE GROMMET IN STOCK	177576 CABLE GROMMET IN STOCK	-	2	Enquire
6	1430562	SCREW	1430562 SCREW	-	4	Enquire
7	1430552	SCREW	1430552 SCREW	-	4	Enquire
8	1430542	SCREW	1430542 SCREW	-	4	Enquire
9	1119777	WASHER	1119777 WASHER	-	4	Enquire
10	322664	GASKET IN STOCK	322664 GASKET IN STOCK	-	1	Enquire
11	223408	BRACKET	223408 BRACKET	-	1	Enquire
12	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	-	4	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	4	Enquire
14	192327	CONNECTOR	192327 CONNECTOR	-	1	Enquire
15	127497	WASHER IN STOCK	127497 WASHER IN STOCK	-	1	Enquire
16	211844	VENT PIPE IN STOCK	211844 VENT PIPE IN STOCK	-	1	Enquire
17	195351	OIL PIPE FROM ENGINE TO SEPARATOR	195351 OIL PIPE FROM ENGINE TO SEPARATOR	-	1	Enquire
18	216061	WATER-OIL SEPARATOR	216061 WATER-OIL SEPARATOR	-	1	Enquire
19	254573	TANK CAP	254573 TANK CAP	-	1	Enquire
20	211634	GASKET IN STOCK	211634 GASKET IN STOCK	-	1	Enquire
21	176388	O-RING IN STOCK	176388 O-RING IN STOCK	-	1	Enquire
22	13517124	STUD BOLT	13517124 STUD BOLT	-	3	Enquire
23	147985	NUT IN STOCK	147985 NUT IN STOCK	-	3	Enquire
24	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	3	Enquire
25	211813	RH BREATHER PIPE	211813 RH BREATHER PIPE	-	1	Enquire
26	211814	LH BREATHER PIPE IN STOCK	211814 LH BREATHER PIPE IN STOCK	-	1	Enquire
27	177996	CLAMP	177996 CLAMP	-	2	Enquire
28	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	-	2	Enquire
29	216063	RH VAPOUR INTAKE PIPE	216063 RH VAPOUR INTAKE PIPE	-	1	Enquire
30	216064	LH VAPOUR INTAKE PIPE	216064 LH VAPOUR INTAKE PIPE	-	1	Enquire
31	195330	RUBBER PIPE	195330 RUBBER PIPE	-	1	Enquire
32	258855	3-WAY CONNECTOR IN STOCK	258855 3-WAY CONNECTOR IN STOCK	-	1	Enquire
33	159539	RUBBER PIPE	159539 RUBBER PIPE	-	2	Enquire
34	10440990	BRACKET WITH SHEATH IN STOCK	10440990 BRACKET WITH SHEATH IN STOCK	-	1	Enquire
