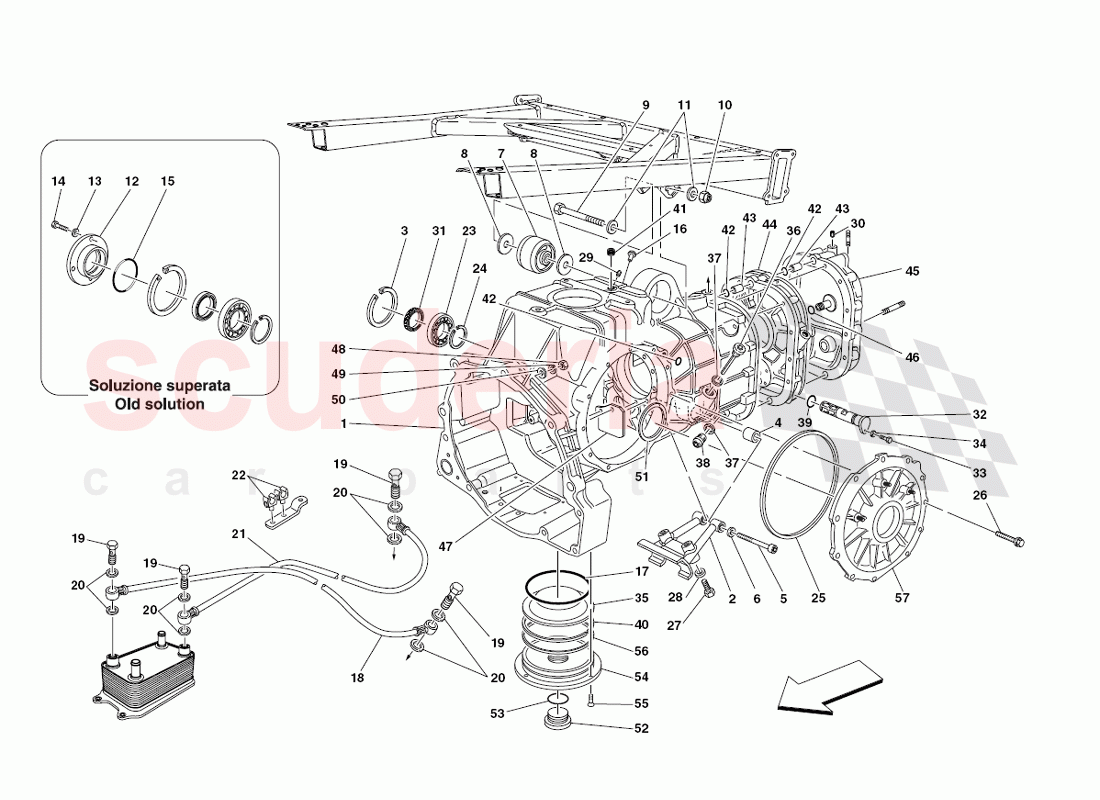

Ferrari 430 Challenge (2006) - Gearbox - Covers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	227700	GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215599	RETENTION BRACKET ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185723	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213174	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14314774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13507734	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237531	Gearbox Mounting Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188141	RETAINER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11117134	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106004	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183981	FLANGE FOR RH SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194379	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14460981	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197797	OIL BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190183	O-RING D.69.85 - 8 X 100	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198163	OIL DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184727	Banjo bolt For Union M16 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	872137	GASKET Dia.16,7-26X1,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198166	OIL RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	652500	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205881	SHIM	Enquire	To Order
	206349	SHIM	Enquire	To Order
	206350	SHIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16287321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15231524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148995	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143281	THREADED PLUG	Enquire	To Order
	14326050	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181618	RH GASKET	Enquire	To Order
	184006	RH OIL SEAL RING.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182100	GEARBOX OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11199277	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122429	Oil Pickup Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182117	DIPSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182119	GEARBOX OIL FILTER O-RING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	185723	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14324911	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14456981	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150957	ALIGNMENT BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173611	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212634	REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183986	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144966	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185034	RING	Enquire	To Order
	185029	RING	Enquire	To Order
	185033	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102761	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102650	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198596	OIL FILTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207541	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171117	DIFFERENTIAL COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	219180	COMPLETE TRANSMISSION	219180 COMPLETE TRANSMISSION	-	1	Enquire
1	227700	GEARBOX	227700 GEARBOX	-	1	Enquire
2	215599	RETENTION BRACKET ABSORBER	215599 RETENTION BRACKET ABSORBER	-	1	Enquire
3	185723	SEEGER RING	185723 SEEGER RING	-	1	Enquire
4	213174	BUSHING	213174 BUSHING	-	1	Enquire
5	14314774	SCREW	14314774 SCREW	-	1	Enquire
6	13507734	WASHER	13507734 WASHER	-	1	Enquire
7	237531	Gearbox Mounting Bush	237531 Gearbox Mounting Bush	-	1	Enquire
8	188141	RETAINER WASHER	188141 RETAINER WASHER	-	2	Enquire
9	11117134	SCREW	11117134 SCREW	-	1	Enquire
10	106004	NUT	106004 NUT	-	1	Enquire
11	14496824	WASHER	14496824 WASHER	-	2	Enquire
12	183981	FLANGE FOR RH SHAFT	183981 FLANGE FOR RH SHAFT Soluzione superata-Old solution-	-	2	Enquire
13	11194379	WASHER	11194379 WASHER Soluzione superata-Old solution-	-	4	Enquire
14	10902224	SCREW	10902224 SCREW Soluzione superata-Old solution-	-	4	Enquire
15	14460981	O-RING	14460981 O-RING Soluzione superata-Old solution-	-	1	Enquire
16	197797	OIL BREATHER	197797 OIL BREATHER	-	1	Enquire
17	190183	O-RING D.69.85 - 8 X 100	190183 O-RING D.69.85 - 8 X 100	-	1	Enquire
18	198163	OIL DELIVERY PIPE	198163 OIL DELIVERY PIPE	-	1	Enquire
19	184727	Banjo bolt For Union M16 x 1.5	184727 Banjo bolt For Union M16 x 1.5	-	4	Enquire
20	872137	GASKET Dia.16,7-26X1,5	872137 GASKET Dia.16,7-26X1,5	-	8	Enquire
21	198166	OIL RETURN PIPE	198166 OIL RETURN PIPE	-	1	Enquire
22	652500	CLIP	652500 CLIP	-	-	Enquire
23	184995	BEARING	184995 BEARING	-	1	Enquire
24	184994	SNAP RING	184994 SNAP RING	-	1	Enquire
25	205881	SHIM	205881 SHIM mm. 2,5-mm. 2,5-	-	1	Enquire
25	206349	SHIM	206349 SHIM mm. 2,2-mm. 2,2-	-	1	Enquire
25	206350	SHIM	206350 SHIM mm. 2,8-mm. 2,8-	-	1	Enquire
25	206351	SHIM	206351 SHIM mm. 3,0-mm. 3,0-	-	1	Enquire
26	16287321	SCREW	16287321 SCREW	-	11	Enquire
27	15231524	SCREW	15231524 SCREW	-	2	Enquire
28	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
29	148995	THREADED PLUG	148995 THREADED PLUG	-	1	Enquire
30	143281	THREADED PLUG	143281 THREADED PLUG D. 8-Not as spare part-	-	1	Enquire
30	14326050	CAP	14326050 CAP D. 10-Not as spare part-	-	1	Enquire
31	181618	RH GASKET	181618 RH GASKET Soluzione superata-Old solution-	-	1	Enquire
31	184006	RH OIL SEAL RING.	184006 RH OIL SEAL RING.	-	1	Enquire
32	182100	GEARBOX OIL FILTER	182100 GEARBOX OIL FILTER	-	1	Enquire
33	10977624	SCREW	10977624 SCREW	-	1	Enquire
34	11199277	WASHER	11199277 WASHER	-	1	Enquire
35	122429	Oil Pickup Filter	122429 Oil Pickup Filter	-	1	Enquire
36	182117	DIPSTICK	182117 DIPSTICK	-	1	Enquire
37	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	3	Enquire
38	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	183962 OIL DRAIN PLUG MAGNETIC 22X1.5	-	2	Enquire
39	182119	GEARBOX OIL FILTER O-RING ARRIVING SOON	182119 GEARBOX OIL FILTER O-RING ARRIVING SOON	-	1	Enquire
40	185723	SEEGER RING	185723 SEEGER RING	-	1	Enquire
41	14324911	CAP	14324911 CAP	-	2	Enquire
42	14456981	GASKET	14456981 GASKET	-	4	Enquire
43	150957	ALIGNMENT BUSHING	150957 ALIGNMENT BUSHING	-	4	Enquire
44	173611	PLATE	173611 PLATE	-	1	Enquire
45	212634	REAR COVER	212634 REAR COVER	-	1	Enquire
46	137192	O-RING	137192 O-RING	-	2	Enquire
47	183986	PLATE	183986 PLATE	-	1	Enquire
48	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	7	Enquire
49	127497	WASHER	127497 WASHER	-	7	Enquire
50	144966	WASHER	144966 WASHER	-	24	Enquire
51	185034	RING	185034 RING Thickness mm. 2,60-Possible fi tting-	-	1	Enquire
51	185029	RING	185029 RING Thickness mm. 3,30-	-	1	Enquire
51	185033	RING	185033 RING Thickness mm. 2,95-Possible fi tting-	-	1	Enquire
52	102761	PLUG	102761 PLUG	-	40	Enquire
53	102650	GASKET	102650 GASKET	-	60	Enquire
54	198596	OIL FILTER COVER	198596 OIL FILTER COVER	-	1	Enquire
55	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	4	Enquire
56	207541	O-Ring	207541 O-Ring	-	1	Enquire
57	171117	DIFFERENTIAL COVER	171117 DIFFERENTIAL COVER	-	1	Enquire
