Timing - Controls of Ferrari Ferrari 430 Challenge (2006)

View All

Ferrari 430 Challenge (2006) - Timing - Controls

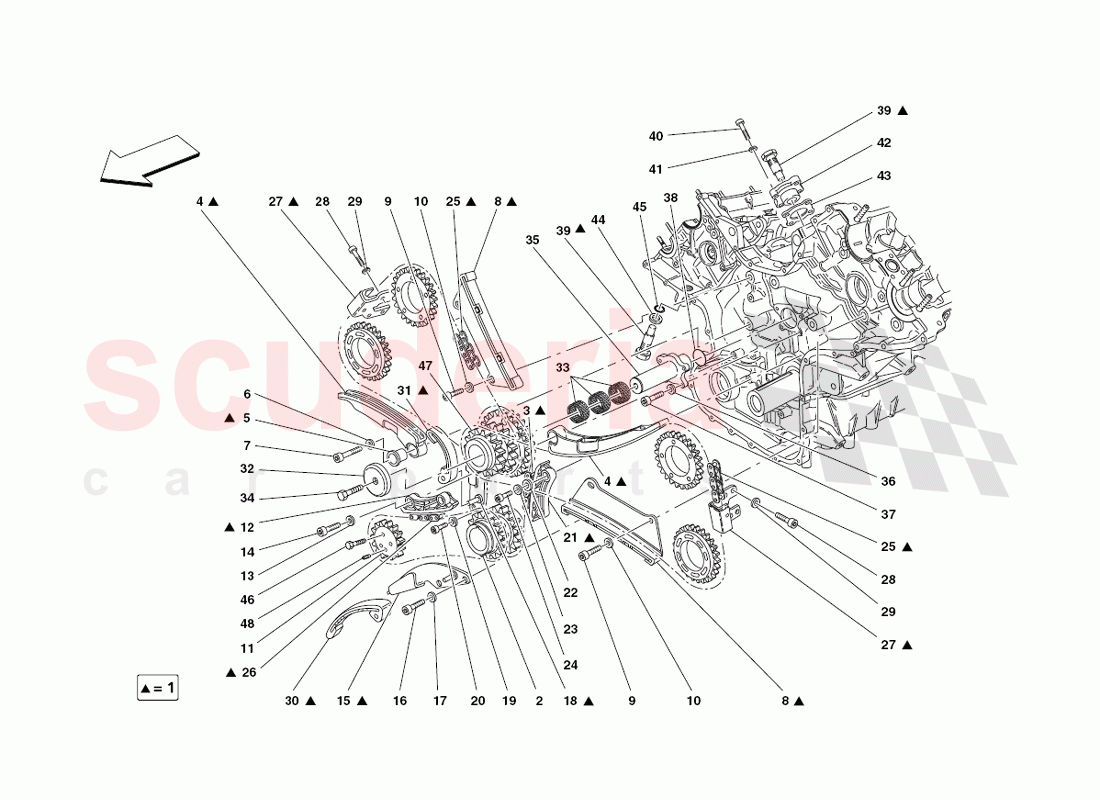

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	197879	VALVE TIMING SYSTEM	$1,556.44	To Order

Photo	Part No	Description	Price (each)	Stock
	186854	CRANKSHAFT GEAR	$150.82	To Order

Photo	Part No	Description	Price (each)	Stock
	175286	DRIVE CHAIN	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	186184	TIMING CHAIN GUIDING SHOE	$155.63	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	255527	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	186185	Fixed Tension Guide - Timing Chain	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	189564	PUMP DRIVE GEAR	$516.03	To Order

Photo	Part No	Description	Price (each)	Stock
	186186	FIXED SHOE	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	185724	SHOE MOUNTING	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	186159	CHAIN SUPPORT	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	306094	FIXED SHOE	$68.98	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	193616	VALVE TIMING CHAIN	$143.05	To Order

Photo	Part No	Description	Price (each)	Stock
	175314	OIL PUMP DRIVE CHAIN	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	189569	UPPER FIXED TENSION PLATE	$38.49	To Order

Photo	Part No	Description	Price (each)	Stock
	14082210	SCREW	$2.90	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	185725	CHAIN TENSIONER SHOE	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	196683	SHOE ASSEMBLY	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	194262	SHOULDER	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	175282	ROLLER BEARING CAGE	$10.50	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	194261	MOUNTING	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	197880	HYDRAULIC TENSIONER	$152.42	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	190060	TENSIONER BUSHING	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	323282	GASKET	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	190171	SPACER	$6.89	To Order

Photo	Part No	Description	Price (each)	Stock
	192069	O-RING D.26 X 1.5	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	189563	SCREW	$19.32	To Order

Photo	Part No	Description	Price (each)	Stock
	193565	DRIVE GEAR	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	189779	DOWEL	$2.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	197879	VALVE TIMING SYSTEM	197879 VALVE TIMING SYSTEM	$1,556.44	1
2	186854	CRANKSHAFT GEAR	186854 CRANKSHAFT GEAR	$150.82	1
3	175286	DRIVE CHAIN	175286 DRIVE CHAIN	$48.12	1
4	186184	TIMING CHAIN GUIDING SHOE	186184 TIMING CHAIN GUIDING SHOE	$155.63	2
5	175303	BUSH	175303 BUSH	$37.25	2
6	255527	WASHER	255527 WASHER	$0.06	2
7	14306424	SCREW	14306424 SCREW	$0.24 MSRP: ~~0.41~~ (41.5% off)	2
8	186185	Fixed Tension Guide - Timing Chain	186185 Fixed Tension Guide - Timing Chain	$60.96	2
9	86768100	SCREW	86768100 SCREW	$0.50	4
10	11193874	WASHER	11193874 WASHER	$0.06	4
11	189564	PUMP DRIVE GEAR	189564 PUMP DRIVE GEAR	$516.03	1
12	186186	FIXED SHOE	186186 FIXED SHOE	$30.47	1
13	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
14	231620	SCREW	231620 SCREW	$0.32 MSRP: ~~0.35~~ (8.6% off)	2
15	185724	SHOE MOUNTING	185724 SHOE MOUNTING	$28.87	1
16	248334	SCREW	248334 SCREW	$0.68	2
17	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
18	186159	CHAIN SUPPORT	186159 CHAIN SUPPORT	$32.08	1
19	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
20	248334	SCREW	248334 SCREW	$0.68	2
21	306094	FIXED SHOE ARRIVING SOON	306094 FIXED SHOE ARRIVING SOON	$68.98	1
22	14498801	WASHER	14498801 WASHER	$0.11 MSRP: ~~0.20~~ (45% off)	2
23	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
24	231619	SCREW	231619 SCREW	$0.31	2
25	193616	VALVE TIMING CHAIN	193616 VALVE TIMING CHAIN	$143.05	2
26	175314	OIL PUMP DRIVE CHAIN	175314 OIL PUMP DRIVE CHAIN	$49.73	1
27	189569	UPPER FIXED TENSION PLATE	189569 UPPER FIXED TENSION PLATE	$38.49	2
28	14082210	SCREW	14082210 SCREW	$2.90	8
29	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	8
30	185725	CHAIN TENSIONER SHOE	185725 CHAIN TENSIONER SHOE	$91.45 MSRP: ~~122.00~~ (25% off)	1
31	196683	SHOE ASSEMBLY	196683 SHOE ASSEMBLY	$48.12	1
32	194262	SHOULDER	194262 SHOULDER	$41.70	1
33	175282	ROLLER BEARING CAGE	175282 ROLLER BEARING CAGE	$10.50 MSRP: ~~11.69~~ (10.2% off)	3
34	16043124	SCREW	16043124 SCREW	$0.18	1
35	194261	MOUNTING	194261 MOUNTING	$208.58	1
36	11181574	WASHER	11181574 WASHER	$0.02	4
37	14304124	SCREW	14304124 SCREW	$0.16 MSRP: ~~0.75~~ (78.7% off)	4
38	104212	O-RING	104212 O-RING	$0.70 MSRP: ~~1.00~~ (30% off)	1
39	197880	HYDRAULIC TENSIONER	197880 HYDRAULIC TENSIONER	$152.42 MSRP: ~~190.38~~ (19.9% off)	2
40	231619	SCREW	231619 SCREW	$0.31	4
41	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
42	190060	TENSIONER BUSHING	190060 TENSIONER BUSHING	$39.17	1
43	323282	GASKET	323282 GASKET	$2.22	1
44	190171	SPACER	190171 SPACER	$6.89	1
45	192069	O-RING D.26 X 1.5	192069 O-RING D.26 X 1.5	$0.53 MSRP: ~~0.60~~ (11.7% off)	1
46	189563	SCREW	189563 SCREW	$19.32	3
47	193565	DRIVE GEAR	193565 DRIVE GEAR	$224.63	1
48	189779	DOWEL	189779 DOWEL	$2.54	1
