Pneumatic actuator system

Find Your Part

Ferrari 430 Challenge (2006) - Pneumatic actuator system

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
207624 VACUUM ACCUMULATOR TANK $465.32 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
222112 COMPLETE RH VACUUM PIPE $369.04 To Order
Photo Part No Description Price (each) Stock
222114 COMPLETE LH VACUUM PIPE $369.04 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
124406 PIPE FROM TANK TO CONNECTOR $14.26 To Order
Photo Part No Description Price (each) Stock
315769 ON/OFF SOLENOID VALVE $56.14 To Order
Photo Part No Description Price (each) Stock
200111 BRACKET $81.82 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
12544179 Washer $0.57 To Order
Photo Part No Description Price (each) Stock
122126 RUBBER PIPE $10.89 To Order
Photo Part No Description Price (each) Stock
178491 CONNECTOR $26.44 To Order
Photo Part No Description Price (each) Stock
168248 RUBBER PIPE $38.69 To Order
Photo Part No Description Price (each) Stock
248008 CAP $14.59 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
View All

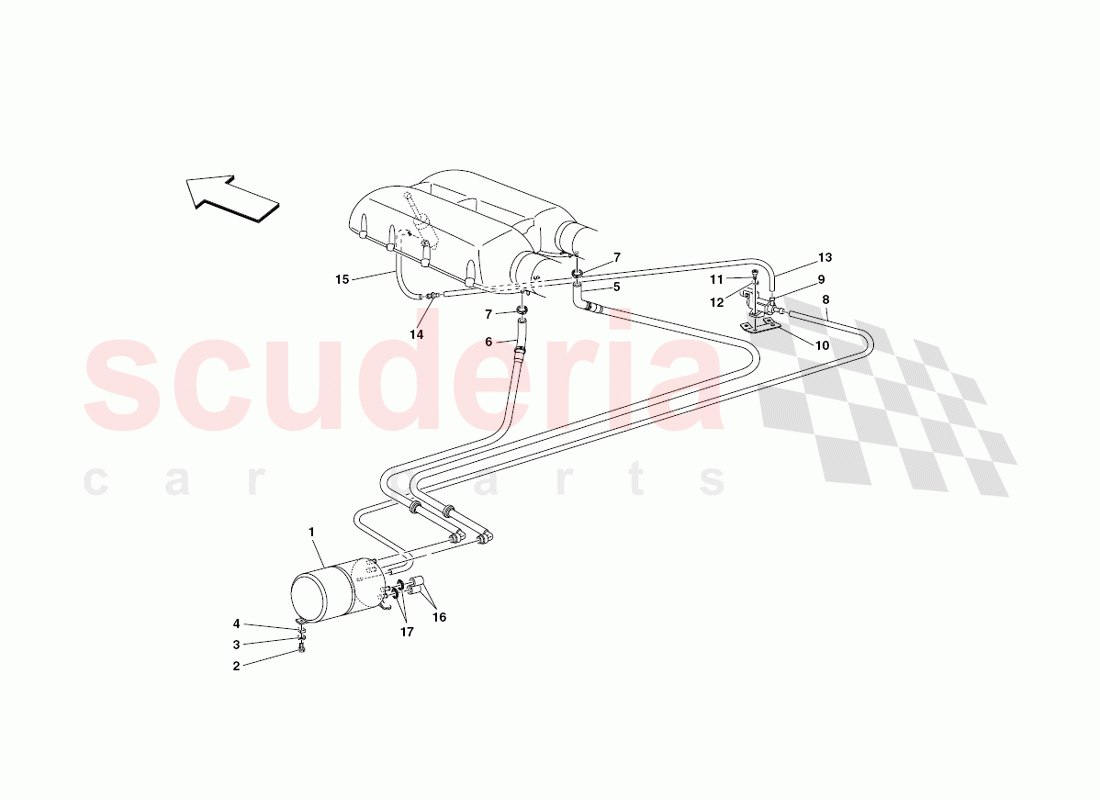

Pneumatic actuator system of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 207624
VACUUM ACCUMULATOR TANK 		$465.32 1
2 10902224
SCREW M6 X 16 		$0.06 (86.7% off) 3
3 11197774
WASHER 		$0.06 (80% off) 3
4 12639724
WASHER 		$0.05 (90% off) 3
5 222112
COMPLETE RH VACUUM PIPE 		$369.04 1
6 222114
COMPLETE LH VACUUM PIPE 		$369.04 (28.5% off) 1
7 13432070
HOSE COLLAR 		$0.57 (46.7% off) 2
8 124406
PIPE FROM TANK TO CONNECTOR 		$14.26 1
9 315769
ON/OFF SOLENOID VALVE 		$56.14 1
10 200111
BRACKET 		$81.82 1
11 14304124
SCREW 		$0.16 (78.7% off) 2
12 12544179
Washer 		$0.57 2
13 122126
RUBBER PIPE 		$10.89 1
14 178491
CONNECTOR 		$26.44 1
15 168248
RUBBER PIPE 		$38.69 1
16 248008
CAP 		$14.59 2
17 13432070
HOSE COLLAR 		$0.57 (46.7% off) 2
