Crankshaft, Conrods And Pistons of Ferrari Ferrari 430 Challenge (2006)

View All

Ferrari 430 Challenge (2006) - Crankshaft, Conrods And Pistons

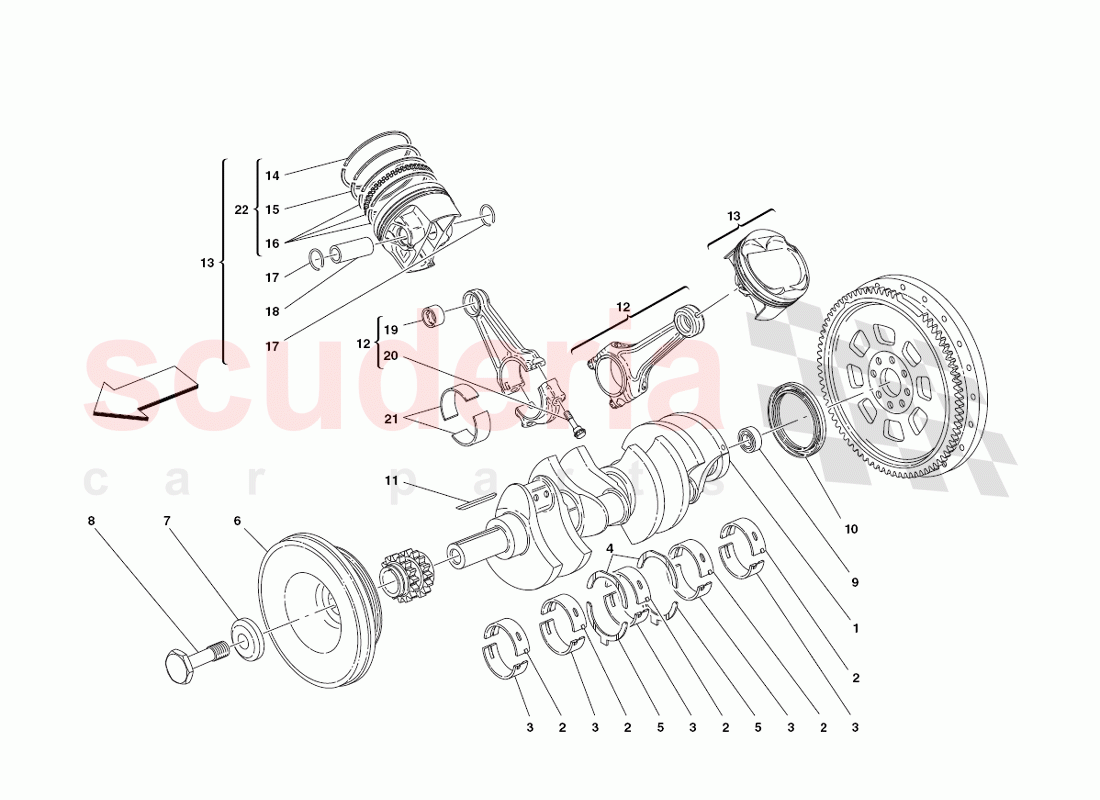

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	196460	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

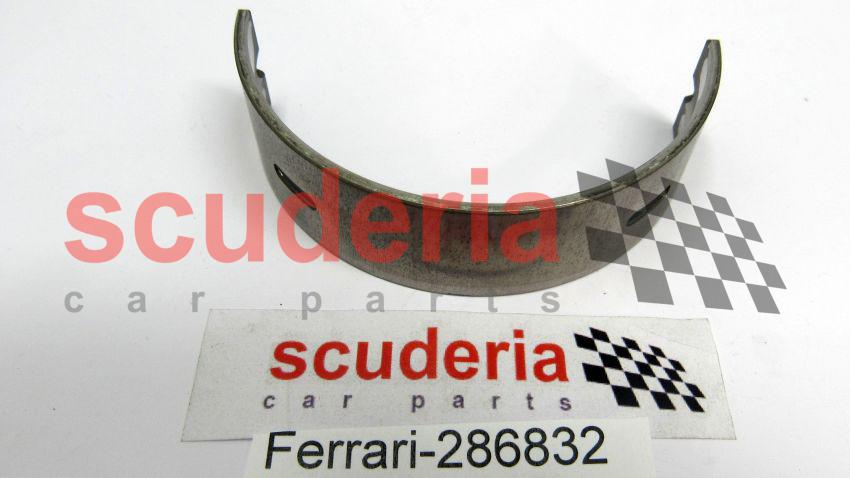

	286832	UPPER MAIN HALF BEARING BLUE	Enquire	To Order
	286834	UPPER HALF-BEARING	Enquire	To Order
	286833	UPPER HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200194	Lower Main Half Bearing Blue	Enquire	To Order
	286838	LOWER HALF-BEARING	Enquire	To Order
	286837	LOWER HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196648	UPPER SHIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196649	LOWER SHIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212322	TORSION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263683	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196216	SCREW FOR DAMPER FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	GROOVED BALL BEARING D.30-35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200323	REAR MAIN OIL SEALING RING D.80-100X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

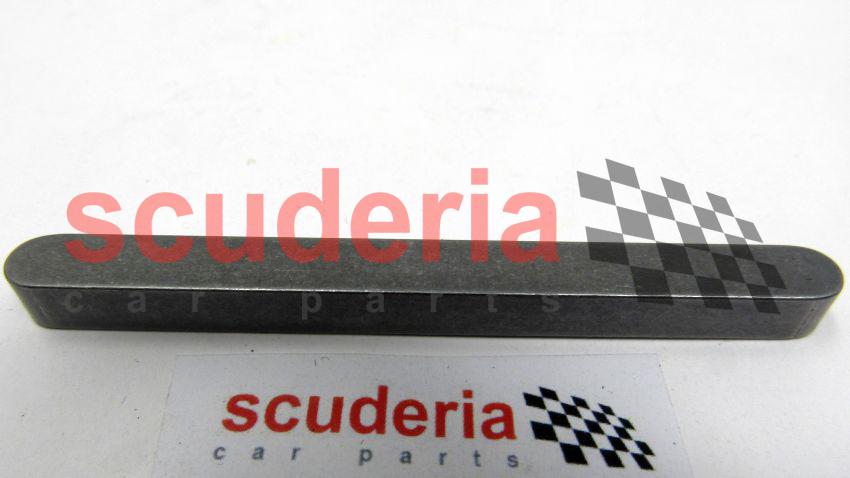

	186201	TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244887	COMPL. CONNECTING ROD AND CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210361	PISTON COMPL. WITH RINGS, LH CYLINDER BANK	Enquire	To Order
	210360	PISTON COMPL. WITH RINGS, RH CYLINDER BANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236497	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226260	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175614	OIL SCRAPER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178890	STOP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175367	GUDGEON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234861	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215530	CON. ROD FASTENER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204290	Connecting Rod Half Bearing Red	Enquire	To Order
	204291	CONNECTING ROD HALF-BEARING	Enquire	To Order
	204292	CONNECTING ROD HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240375	COMPLETE PISTON RING SET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	196460	CRANKSHAFT	196460 CRANKSHAFT	-	1	Enquire
2	286832	UPPER MAIN HALF BEARING BLUE	286832 UPPER MAIN HALF BEARING BLUE Blue Standard	-	5	Enquire
2	286834	UPPER HALF-BEARING	286834 UPPER HALF-BEARING Green	-	5	Enquire
2	286833	UPPER HALF-BEARING	286833 UPPER HALF-BEARING Yellow	-	5	Enquire
3	200194	Lower Main Half Bearing Blue	200194 Lower Main Half Bearing Blue Blue Standard	-	5	Enquire
3	286838	LOWER HALF-BEARING	286838 LOWER HALF-BEARING Green	-	5	Enquire
3	286837	LOWER HALF-BEARING	286837 LOWER HALF-BEARING Yellow	-	5	Enquire
4	196648	UPPER SHIM RING	196648 UPPER SHIM RING	-	2	Enquire
5	196649	LOWER SHIM RING	196649 LOWER SHIM RING	-	2	Enquire
6	212322	TORSION DAMPER	212322 TORSION DAMPER	-	1	Enquire
7	263683	WASHER	263683 WASHER	-	1	Enquire
8	196216	SCREW FOR DAMPER FIXING	196216 SCREW FOR DAMPER FIXING	-	1	Enquire
9	103877	GROOVED BALL BEARING D.30-35	103877 GROOVED BALL BEARING D.30-35	-	1	Enquire
10	200323	REAR MAIN OIL SEALING RING D.80-100X10	200323 REAR MAIN OIL SEALING RING D.80-100X10	-	1	Enquire
11	186201	TAB	186201 TAB	-	1	Enquire
12	244887	COMPL. CONNECTING ROD AND CAP	244887 COMPL. CONNECTING ROD AND CAP	-	8	Enquire
13	210361	PISTON COMPL. WITH RINGS, LH CYLINDER BANK	210361 PISTON COMPL. WITH RINGS, LH CYLINDER BANK	-	4	Enquire
13	210360	PISTON COMPL. WITH RINGS, RH CYLINDER BANK	210360 PISTON COMPL. WITH RINGS, RH CYLINDER BANK	-	4	Enquire
14	236497	SEAL RING	236497 SEAL RING 1st groove	-	8	Enquire
15	226260	SEAL RING	226260 SEAL RING 2nd groove	-	8	Enquire
16	175614	OIL SCRAPER RING	175614 OIL SCRAPER RING 3nd groove	-	8	Enquire
17	178890	STOP RING	178890 STOP RING	-	1	Enquire
18	175367	GUDGEON PIN	175367 GUDGEON PIN	-	8	Enquire
19	234861	BUSHING	234861 BUSHING	-	8	Enquire
20	215530	CON. ROD FASTENER SCREW	215530 CON. ROD FASTENER SCREW	-	16	Enquire
21	204290	Connecting Rod Half Bearing Red	204290 Connecting Rod Half Bearing Red Standard Red	-	16	Enquire
21	204291	CONNECTING ROD HALF-BEARING	204291 CONNECTING ROD HALF-BEARING Blue	-	16	Enquire
21	204292	CONNECTING ROD HALF-BEARING	204292 CONNECTING ROD HALF-BEARING Black	-	16	Enquire
22	240375	COMPLETE PISTON RING SET	240375 COMPLETE PISTON RING SET	-	12	Enquire
