LH Cylinder Head of Ferrari Ferrari 430 Challenge (2006)

View All

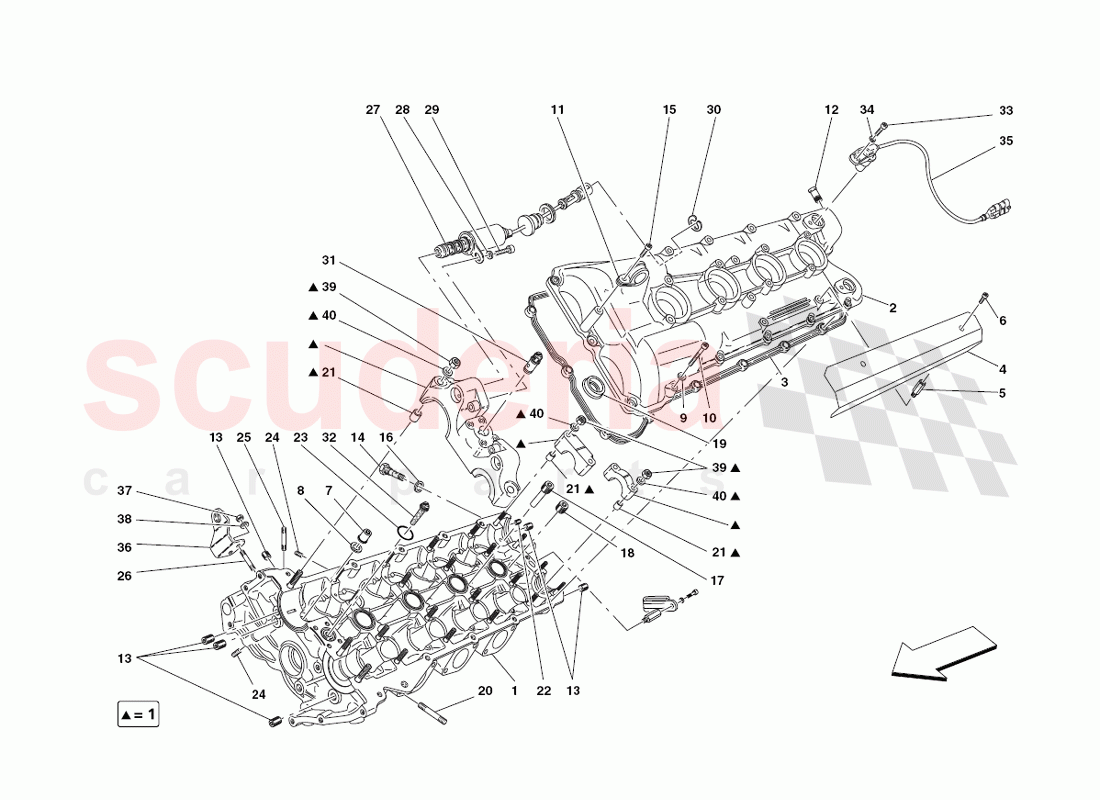

Ferrari 430 Challenge (2006) - LH Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	221078	COMPLETE LH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224063	LH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198928	LH Head Cover Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	220404	ANTI-HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220417	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	223838	HOLED SCREW	Enquire	IN STOCK
	156834	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124342	THREADED CONNECTOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180267	OIL NON RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	187706	Spark Plug Sleeve Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541334	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250646	Variable Valve Timing Adjuster Solenoid Valve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11087374	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184681	OIL PRESSURE REGULATOR VALVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	241406	OIL FILTER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219867	LH EXHAUST CAMSHAFT TIMING SENSOR	Enquire	IN STOCK
	219866	LH INTAKE TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207422	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	221078	COMPLETE LH HEAD	221078 COMPLETE LH HEAD	-	1	Enquire
2	224063	LH CYLINDER HEAD COVER	224063 LH CYLINDER HEAD COVER	-	1	Enquire
3	198928	LH Head Cover Gasket IN STOCK	198928 LH Head Cover Gasket IN STOCK	-	1	Enquire
4	220404	ANTI-HEAT SHIELD	220404 ANTI-HEAT SHIELD	-	1	Enquire
5	220417	STUD	220417 STUD	-	2	Enquire
6	14305324	SCREW IN STOCK	14305324 SCREW IN STOCK	-	1	Enquire
7	321187	NUT	321187 NUT	-	10	Enquire
8	151117	WASHER 11.25-22X2.5 IN STOCK	151117 WASHER 11.25-22X2.5 IN STOCK	-	10	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	14	Enquire
10	223838	HOLED SCREW IN STOCK	223838 HOLED SCREW IN STOCK	-	1	Enquire
10	156834	Screw	156834 Screw	-	13	Enquire
11	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	-	2	Enquire
12	124342	THREADED CONNECTOR IN STOCK	124342 THREADED CONNECTOR IN STOCK	-	1	Enquire
13	282755	THREADED PLUG	282755 THREADED PLUG	-	6	Enquire
14	180267	OIL NON RETURN VALVE	180267 OIL NON RETURN VALVE	-	1	Enquire
15	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
16	10261060	GASKET COPPER 12 - 16 X 1.5 IN STOCK	10261060 GASKET COPPER 12 - 16 X 1.5 IN STOCK	-	1	Enquire
17	127635	THREADED PLUG	127635 THREADED PLUG	-	4	Enquire
18	164400	THREADED PLUG IN STOCK	164400 THREADED PLUG IN STOCK	-	1	Enquire
19	187706	Spark Plug Sleeve Gasket IN STOCK	187706 Spark Plug Sleeve Gasket IN STOCK	-	4	Enquire
20	211641	STUD BOLT IN STOCK	211641 STUD BOLT IN STOCK	-	8	Enquire
21	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	22	Enquire
22	14326101	THREADED PLUG	14326101 THREADED PLUG	-	1	Enquire
23	134233	O-RING IN STOCK	134233 O-RING IN STOCK	-	1	Enquire
24	199760	THREADED PLUG IN STOCK	199760 THREADED PLUG IN STOCK	-	4	Enquire
25	13541334	STUD BOLT	13541334 STUD BOLT	-	8	Enquire
26	13516624	STUD BOLT	13516624 STUD BOLT	-	2	Enquire
27	250646	Variable Valve Timing Adjuster Solenoid Valve IN STOCK	250646 Variable Valve Timing Adjuster Solenoid Valve IN STOCK	-	1	Enquire
28	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	1	Enquire
29	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	-	1	Enquire
30	11087374	SNAP RING	11087374 SNAP RING	-	1	Enquire
31	184681	OIL PRESSURE REGULATOR VALVE IN STOCK	184681 OIL PRESSURE REGULATOR VALVE IN STOCK	-	1	Enquire
32	241406	OIL FILTER IN STOCK	241406 OIL FILTER IN STOCK	-	1	Enquire
33	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	-	1	Enquire
34	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	1	Enquire
35	219867	LH EXHAUST CAMSHAFT TIMING SENSOR IN STOCK	219867 LH EXHAUST CAMSHAFT TIMING SENSOR IN STOCK	-	1	Enquire
35	219866	LH INTAKE TIMING SENSOR	219866 LH INTAKE TIMING SENSOR	-	1	Enquire
36	207422	BRACKET	207422 BRACKET	-	1	Enquire
37	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED IN STOCK	-	2	Enquire
38	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	-	2	Enquire
39	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	22	Enquire
40	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	22	Enquire
