Name: RH cylinder head
Rating: 4.7 (1 reviews)

RH cylinder head of Ferrari Ferrari 430 Challenge (2006)

View All

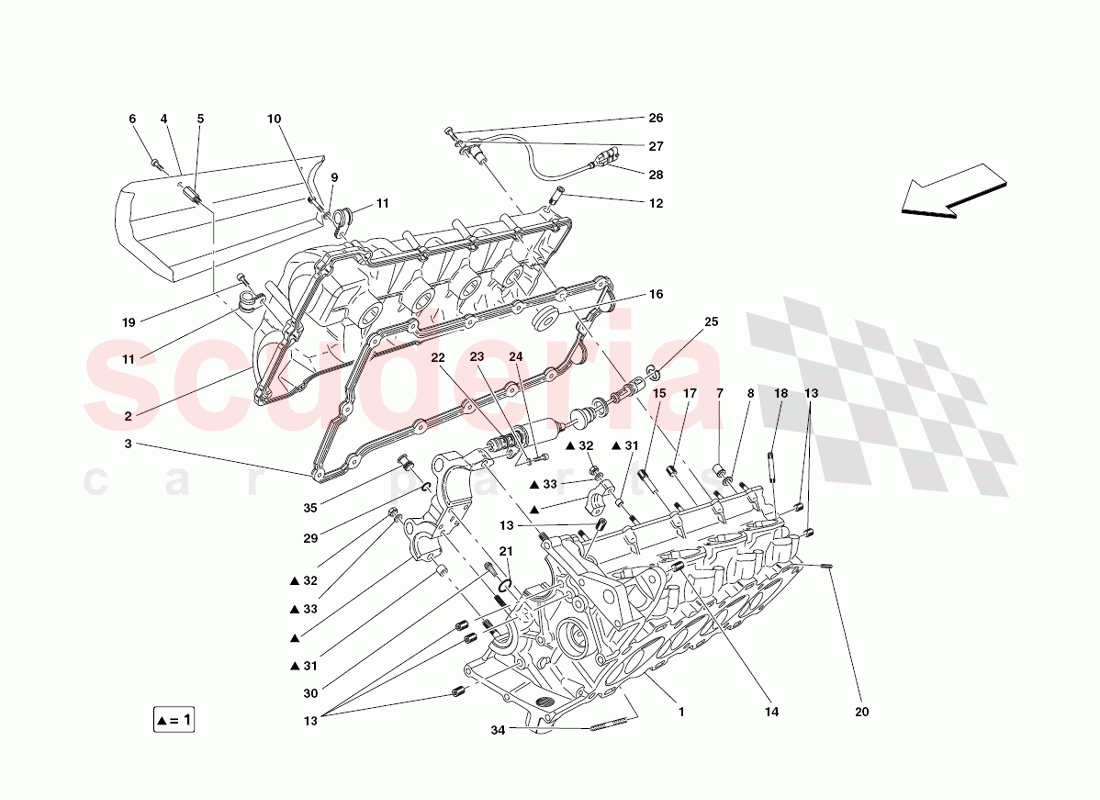

Ferrari 430 Challenge (2006) - RH cylinder head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	221076	COMPLETE RH HEAD	$1,205.85	To Order

Photo	Part No	Description	Price (each)	Stock
	224062	RH CYLINDER HEAD COVER	$1,174.61	To Order

Photo	Part No	Description	Price (each)	Stock
	198927	RH Head Cover Gasket	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	231263	SHIELD	$80.93	To Order

Photo	Part No	Description	Price (each)	Stock
	220417	STUD	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	223838	HOLED SCREW	$0.84	To Order
	156834	ALLEN SCREW M6 X 30	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	124342	THREADED CONNECTOR	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	140135	THREADED INSERT	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	187706	Spark Plug Sleeve Gasket	$8.49	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13541334	STUD BOLT	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	250646	Variable Valve Timing Adjuster Solenoid Valve	$978.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11087374	SNAP RING	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	219865	RH Exhaust Camshaft Sensor	$351.73	To Order
	219864	RH INTAKE TIMING SENSOR	$328.23	To Order

Photo	Part No	Description	Price (each)	Stock
	220245	GASKET	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	241406	OIL FILTER	$16.29	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	220239	CAP	$7.07	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	221076	COMPLETE RH HEAD	221076 COMPLETE RH HEAD	$1,205.85	1
2	224062	RH CYLINDER HEAD COVER	224062 RH CYLINDER HEAD COVER	$1,174.61	1
3	198927	RH Head Cover Gasket	198927 RH Head Cover Gasket	$43.31 MSRP: ~~62.00~~ (30.1% off)	1
4	231263	SHIELD	231263 SHIELD	$80.93	1
5	220417	STUD	220417 STUD	$85.03	2
6	14305324	SCREW	14305324 SCREW	$0.08	1
7	321187	NUT	321187 NUT	-	10	Enquire
8	151117	WASHER	151117 WASHER	$1.20	10
9	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	14
10	223838	HOLED SCREW	223838 HOLED SCREW	$0.84	1
10	156834	ALLEN SCREW M6 X 30	156834 ALLEN SCREW M6 X 30	$3.71	13
11	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$0.57 MSRP: ~~1.68~~ (66.1% off)	2
12	124342	THREADED CONNECTOR	124342 THREADED CONNECTOR	$6.56	1
13	282755	THREADED PLUG	282755 THREADED PLUG	$2.14	6
14	140135	THREADED INSERT	140135 THREADED INSERT	$3.40	1
15	127635	THREADED PLUG	127635 THREADED PLUG	$3.32 MSRP: ~~4.17~~ (20.4% off)	4
16	187706	Spark Plug Sleeve Gasket	187706 Spark Plug Sleeve Gasket	$8.49 MSRP: ~~12.30~~ (31% off)	4
17	164400	THREADED PLUG	164400 THREADED PLUG	$3.81	1
18	13541334	STUD BOLT	13541334 STUD BOLT	$0.50	8
19	248334	SCREW	248334 SCREW	$0.68	1
20	199760	THREADED PLUG	199760 THREADED PLUG	$0.31	4
21	134233	O-RING	134233 O-RING	$0.47 MSRP: ~~1.50~~ (68.7% off)	1
22	250646	Variable Valve Timing Adjuster Solenoid Valve	250646 Variable Valve Timing Adjuster Solenoid Valve	$978.79 MSRP: ~~1,372.32~~ (28.7% off)	1
23	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
24	231619	SCREW	231619 SCREW	$0.31	1
25	11087374	SNAP RING	11087374 SNAP RING	$0.65	1
26	231619	SCREW	231619 SCREW	$0.31	1
27	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
28	219865	RH Exhaust Camshaft Sensor	219865 RH Exhaust Camshaft Sensor	$351.73	1
28	219864	RH INTAKE TIMING SENSOR	219864 RH INTAKE TIMING SENSOR	$328.23	1
29	220245	GASKET	220245 GASKET	$0.16 MSRP: ~~1.00~~ (84% off)	1
30	241406	OIL FILTER	241406 OIL FILTER	$16.29	1
31	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.17 MSRP: ~~2.25~~ (48% off)	22
32	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	22
33	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	22
34	211641	STUD BOLT	211641 STUD BOLT	$1.04	8
35	220239	CAP	220239 CAP	$7.07	1
