Ferrari 430 Challenge (2006) - Front Suspension - shock absorber and brake disc

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
224336 FRONT SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
181420 SPRING 0,0463 mm/Kg Enquire To Order
Photo Part No Description Price (each) Stock
245623 UPPER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
181408 LOWER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
157630 BALL JOINT Enquire IN STOCK
Photo Part No Description Price (each) Stock
193492 SCREW SPACER Enquire IN STOCK
Photo Part No Description Price (each) Stock
174727 UPPER SPRING RETENTION CAP Enquire To Order
Photo Part No Description Price (each) Stock
181404 SHOCK ABSORBER PAD Enquire To Order
Photo Part No Description Price (each) Stock
181410 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
181412 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
182505 PIN Enquire To Order
Photo Part No Description Price (each) Stock
14302821 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
107618 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
133216 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
182526 COMPLETE SMALL LINK Enquire To Order
Photo Part No Description Price (each) Stock
329184 FLANBLOC Enquire To Order
Photo Part No Description Price (each) Stock
11306934 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
204977 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
255271 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
155002 Washer Enquire IN STOCK
Photo Part No Description Price (each) Stock
14307821 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
222480 FRONT ANTI-ROLL BAR Enquire To Order
179776 FRONT ANTI-ROLL BAR Enquire To Order
Photo Part No Description Price (each) Stock
181467 ANTI-ROLL BAR SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
181468 BAR BUFFER Enquire To Order
181469 BAR BUFFER Enquire To Order
Photo Part No Description Price (each) Stock
220562 LH HUB COMPLETE BEARING Enquire IN STOCK
220558 RH HUB COMPLETE BEARING Enquire To Order
Photo Part No Description Price (each) Stock
223160 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
224859 FRONT BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
11566227 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
169092 Spacer Enquire IN STOCK
Photo Part No Description Price (each) Stock
180591 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
10732414 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
180542 BEARING FASTENING PIN Enquire To Order
Photo Part No Description Price (each) Stock
220589 RING FOR LH DISC COOLING Enquire To Order
220588 RING FOR RH DISC COOLING Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
178341 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
223161 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
101598 STUD Enquire To Order
View All

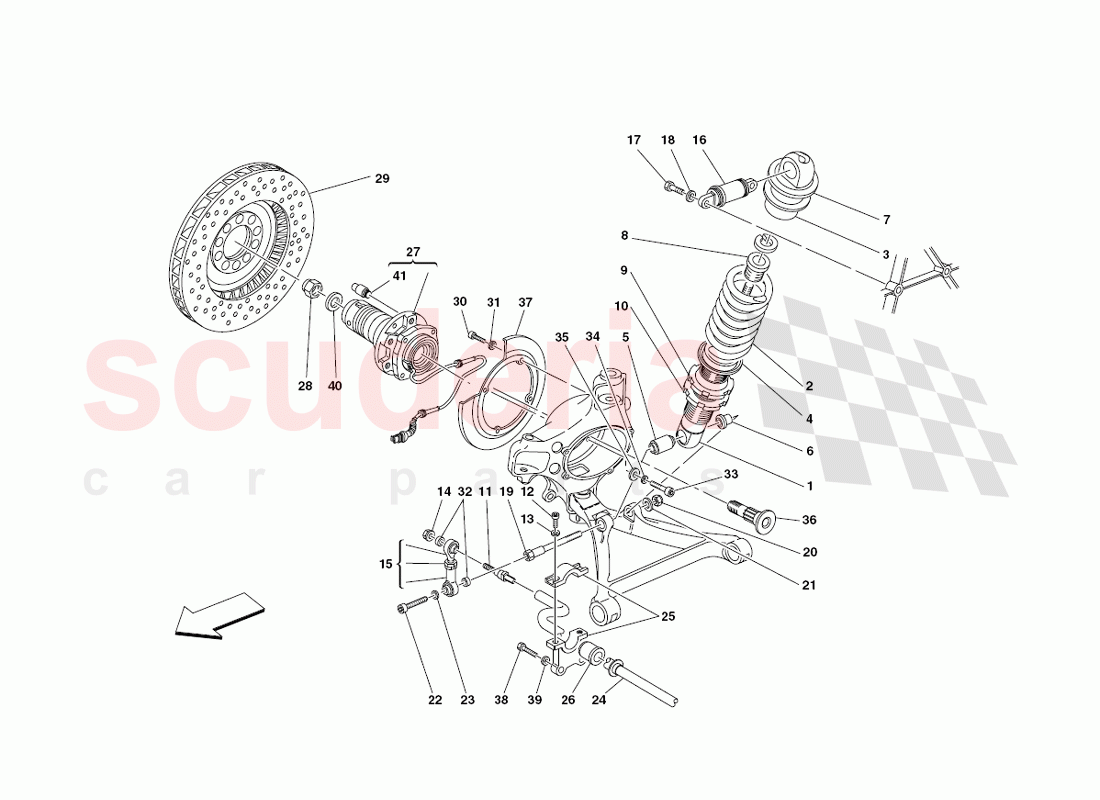

Front Suspension - shock absorber and brake disc of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 224336
FRONT SHOCK ABSORBER 		- 2 Enquire
2 181420
SPRING 0,0463 mm/Kg 		- 2 Enquire
3 245623
UPPER SPACER 		- 2 Enquire
4 181408
LOWER SPACER 		- 2 Enquire
5 157630
BALL JOINT
IN STOCK 		- 2 Enquire
6 193492
SCREW SPACER
IN STOCK 		- 2 Enquire
7 174727
UPPER SPRING RETENTION CAP 		- 2 Enquire
8 181404
SHOCK ABSORBER PAD 		- 2 Enquire
9 181410
SPACER 		- 2 Enquire
10 181412
RING NUT 		- 2 Enquire
11 182505
PIN 		- 2 Enquire
12 14302821
SCREW 		- 4 Enquire
13 107618
WASHER
IN STOCK 		- 4 Enquire
14 133216
NUT
IN STOCK 		- 2 Enquire
15 182526
COMPLETE SMALL LINK 		- 2 Enquire
16 329184
FLANBLOC 		- 2 Enquire
17 11306934
SCREW 		- 4 Enquire
18 160092
WASHER
IN STOCK 		- 4 Enquire
19 204977
SCREW
IN STOCK 		- 2 Enquire
20 255271
NUT
IN STOCK 		- 2 Enquire
21 155002
Washer
IN STOCK 		- 2 Enquire
22 14307821
SCREW 		- 2 Enquire
23 160092
WASHER
IN STOCK 		- 2 Enquire
24 222480
FRONT ANTI-ROLL BAR
Diameter 19 mm- 		- 1 Enquire
24 179776
FRONT ANTI-ROLL BAR
Diameter 21 mm-As an alternative- 		- 1 Enquire
25 181467
ANTI-ROLL BAR SUPPORT 		- 2 Enquire
26 181468
BAR BUFFER
Diameter 19 mm- 		- 2 Enquire
26 181469
BAR BUFFER
Diameter 21 mm-As an alternative- 		- 2 Enquire
27 220562
LH HUB COMPLETE BEARING
IN STOCK 		- 2 Enquire
27 220558
RH HUB COMPLETE BEARING 		- 2 Enquire
28 223160
NUT
IN STOCK 		- 2 Enquire
29 224859
FRONT BRAKE DISC 		- 2 Enquire
30 11566227
SCREW
IN STOCK 		- 8 Enquire
31 12604178
Washer 		- 8 Enquire
32 169092
Spacer
IN STOCK 		- 4 Enquire
33 180591
SCREW 		- 8 Enquire
34 160092
WASHER
IN STOCK 		- 8 Enquire
35 10732414
WASHER 		- 8 Enquire
36 180542
BEARING FASTENING PIN 		- 2 Enquire
37 220589
RING FOR LH DISC COOLING 		- 1 Enquire
37 220588
RING FOR RH DISC COOLING 		- 1 Enquire
38 14306924
SCREW
IN STOCK 		- 4 Enquire
39 178341
WASHER 		- 4 Enquire
40 223161
WASHER
IN STOCK 		- 2 Enquire
41 101598
STUD 		- 10 Enquire
