Clutch And Gearbox Hydraulic Control

Ferrari 430 Challenge (2006)

Find Your Part

Ferrari 430 Challenge (2006) - Clutch and Gearbox Hydraulic Control

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
248084 HYDRAULIC ACTUATOR KIT Enquire To Order
Photo Part No Description Price (each) Stock
11501024 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11500724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
103038 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
179340 PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407- Enquire To Order
Photo Part No Description Price (each) Stock
179342 PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408- Enquire To Order
Photo Part No Description Price (each) Stock
179343 PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409- Enquire To Order
Photo Part No Description Price (each) Stock
179344 PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410- Enquire To Order
Photo Part No Description Price (each) Stock
179345 PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411- Enquire To Order
Photo Part No Description Price (each) Stock
248101 EVF PIPE KIT Enquire To Order
Photo Part No Description Price (each) Stock
204545 UNION -Fixing EV3, EV4 and EV5 to power unit- Enquire To Order
171454 PIPE UNION Enquire To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
179346 PROTECTIVE SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
171454 PIPE UNION Enquire To Order
204543 UNION -Fixing EV3, EV4 and EV5 to actuator- Enquire To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
175667 BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
171755 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
210468 QUICK MALE COUPLING Enquire To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
171630 UNION-Valid for F1- Enquire To Order
Photo Part No Description Price (each) Stock
152954 BLEED NIPPLE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
152955 PROTECTIVE CAP Enquire To Order
Photo Part No Description Price (each) Stock
242682 UPPER ACTUATOR MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13516424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
195549 LOWER ACTUATOR SUPPORT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16043124 SCREW M8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
208101 TUBES MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
242669 SHIELD MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
110752 ACTUATOR GUARD SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
15896470 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
248095 Position Sensor Kit Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
192865 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
124034 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
13540724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
208103 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
16043124 SCREW M8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
222502 POTENTIOMETERS FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
192866 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
208622 SENSOR GUARD SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
15896470 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
180745 SHIELD MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13516424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
248088 RECIRCULATION PIPE KIT Enquire To Order
Photo Part No Description Price (each) Stock
213472 CLIP Enquire To Order
View All

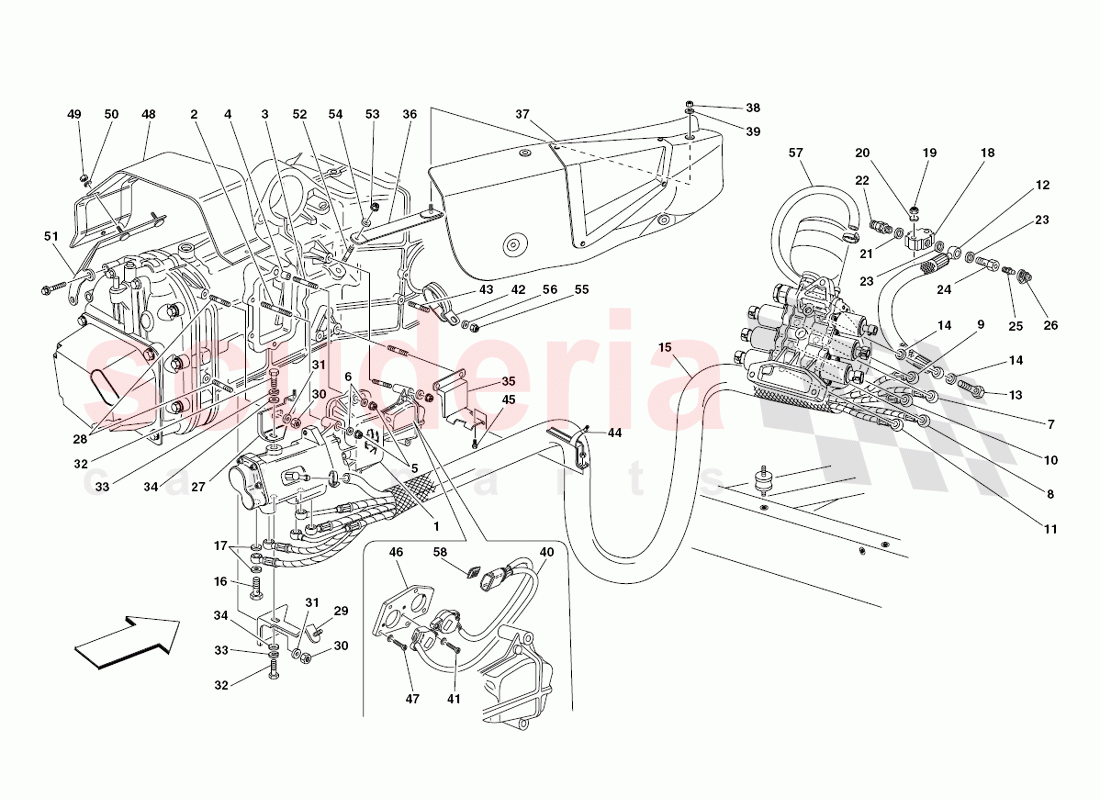

Clutch and Gearbox Hydraulic Control of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 232406
F1-TYPE GEARBOX SYSTEM COMPONENTS KIT 		- 1 Enquire
1 248084
HYDRAULIC ACTUATOR KIT 		- 1 Enquire
2 11501024
STUD BOLT 		- 4 Enquire
3 11500724
STUD BOLT 		- 2 Enquire
4 103038
DOWEL 		- 2 Enquire
5 14040711
NUT M8 FLANGED 		- 2 Enquire
6 127496
WASHER 		- 2 Enquire
7 179340
PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407- 		- 1 Enquire
8 179342
PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408- 		- 1 Enquire
9 179343
PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409- 		- 1 Enquire
10 179344
PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410- 		- 1 Enquire
11 179345
PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411- 		- 1 Enquire
12 248101
EVF PIPE KIT 		- 1 Enquire
13 204545
UNION -Fixing EV3, EV4 and EV5 to power unit-
EV3, EV4, EV5- 		- 3 Enquire
13 171454
PIPE UNION
EV1, EV2, clutch- 		- 3 Enquire
14 10261060
GASKET COPPER 12 - 16 X 1.5 		- 12 Enquire
15 179346
PROTECTIVE SHEATH 		- 1 Enquire
16 171454
PIPE UNION
EV1, EV2- 		- 2 Enquire
16 204543
UNION -Fixing EV3, EV4 and EV5 to actuator-
EV3, EV4, EV5- 		- 3 Enquire
17 10261060
GASKET COPPER 12 - 16 X 1.5 		- 10 Enquire
18 175667
BLOCK 		- 1 Enquire
19 14059290
FLANGED NUT M6 		- 2 Enquire
20 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
21 171755
WASHER 		- 1 Enquire
22 210468
QUICK MALE COUPLING 		- 1 Enquire
23 10261060
GASKET COPPER 12 - 16 X 1.5 		- 2 Enquire
24 171630
UNION-Valid for F1- 		- 1 Enquire
25 152954
BLEED NIPPLE SCREW 		- 1 Enquire
26 152955
PROTECTIVE CAP 		- 1 Enquire
27 242682
UPPER ACTUATOR MOUNTING BRACKET 		- 1 Enquire
28 13516424
STUD BOLT 		- 2 Enquire
29 195549
LOWER ACTUATOR SUPPORT BRACKET 		- 1 Enquire
30 14040711
NUT M8 FLANGED 		- 2 Enquire
31 127496
WASHER 		- 2 Enquire
32 16043124
SCREW M8 X 14 		- 2 Enquire
33 127496
WASHER 		- 2 Enquire
34 84653800
WASHER 		- 2 Enquire
35 208101
TUBES MOUNTING BRACKET 		- 1 Enquire
36 242669
SHIELD MOUNTING BRACKET 		- 1 Enquire
37 110752
ACTUATOR GUARD SHIELD 		- 1 Enquire
38 15896470
NUT 		- 4 Enquire
39 12637824
WASHER 		- 4 Enquire
40 248095
Position Sensor Kit
ARRIVING SOON 		- 1 Enquire
41 192865
SCREW 		- 4 Enquire
42 124034
BRACKET WITH SHEATH 		- 1 Enquire
43 13540724
STUD BOLT 		- 1 Enquire
44 208103
BRACKET 		- 1 Enquire
45 16043124
SCREW M8 X 14 		- 1 Enquire
46 222502
POTENTIOMETERS FLANGE 		- 1 Enquire
47 192866
SCREW 		- 4 Enquire
48 208622
SENSOR GUARD SHIELD 		- 1 Enquire
49 15896470
NUT 		- 2 Enquire
50 12637824
WASHER 		- 2 Enquire
51 180745
SHIELD MOUNTING BRACKET 		- 1 Enquire
52 13516424
STUD BOLT 		- 1 Enquire
53 14040711
NUT M8 FLANGED 		- 1 Enquire
54 12638524
WASHER 		- 2 Enquire
55 14059290
FLANGED NUT M6 		- 1 Enquire
56 12643724
WASHER 		- 1 Enquire
57 248088
RECIRCULATION PIPE KIT 		- 1 Enquire

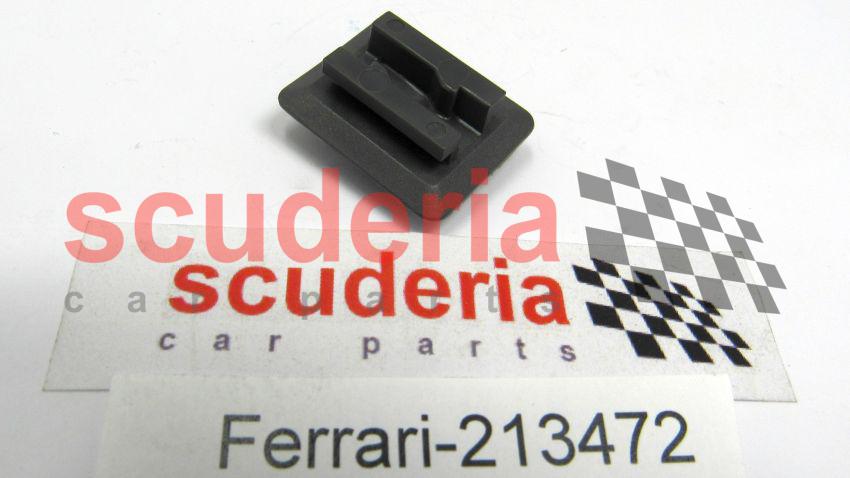

58 213472
CLIP 		- 1 Enquire
