Fuel Pumps and Pipes of Ferrari Ferrari 430 Challenge (2006)

View All

Ferrari 430 Challenge (2006) - Fuel Pumps and Pipes

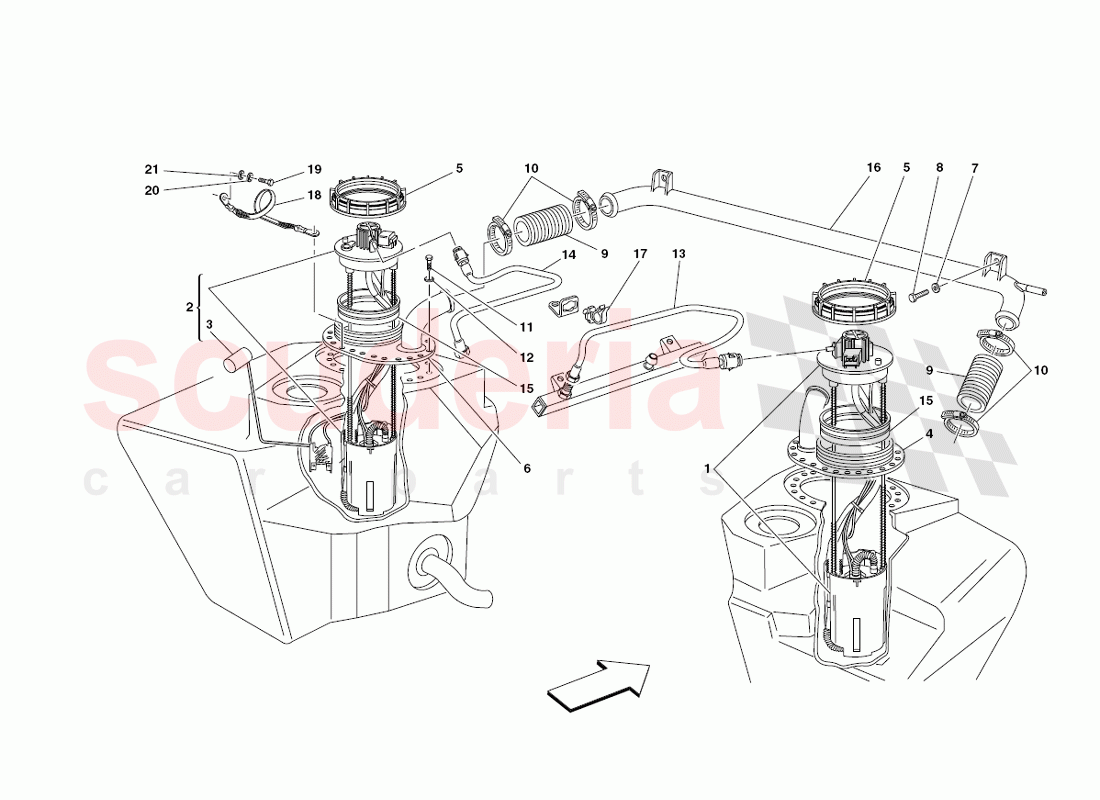

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

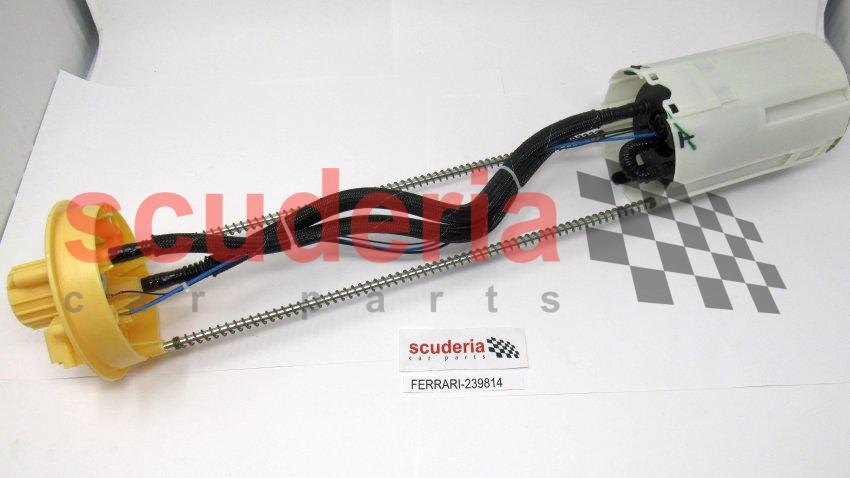

	239814	RH Fuel Pump	Enquire	To Order
	239814	RH Fuel Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

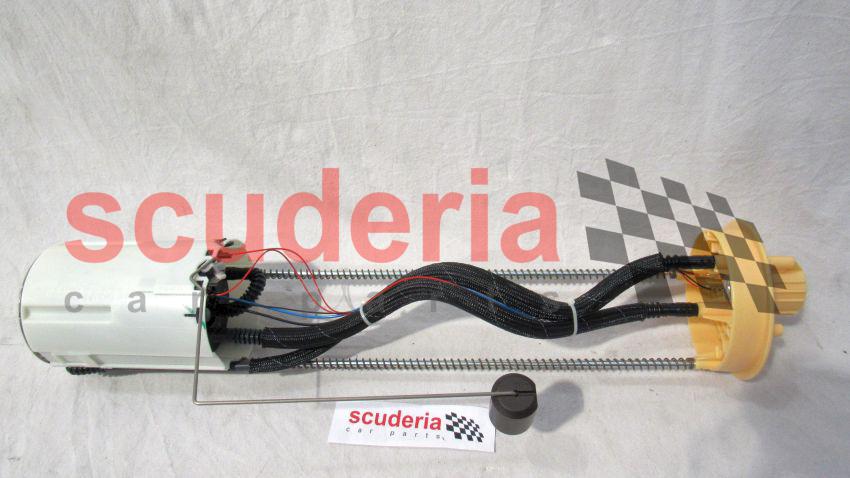

	239815	L.H. COMPLETE FUEL PUMP AND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194140	FUEL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182501	R.H. PUMP SUPPORT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170945	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182502	L.H. PUMP SUPPORT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183103	CONNECTION SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13001690	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221434	RH FUEL DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221435	LH FUEL DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

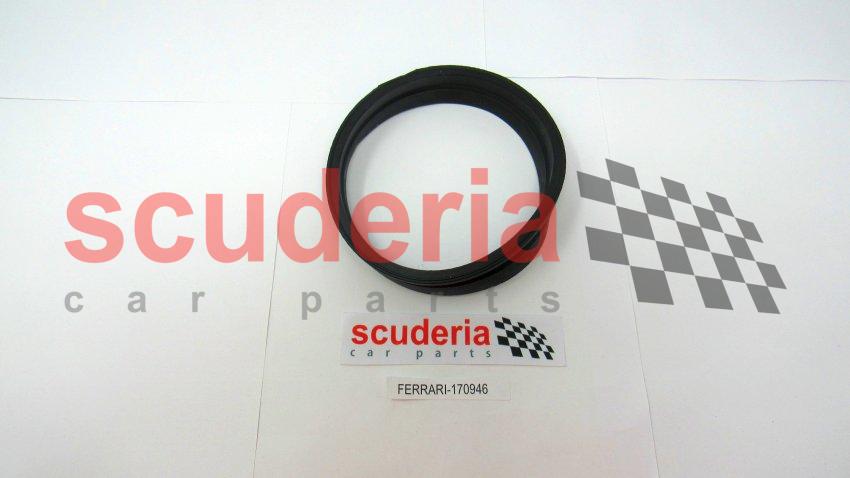

	170946	FUEL PUMP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182900	DISAREATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160855	GROUND CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	239814	RH Fuel Pump	239814 RH Fuel Pump use on exhaustion of: 164146	-	1	Enquire
1	239814	RH Fuel Pump	239814 RH Fuel Pump use part number: 239814	-	1	Enquire
2	239815	L.H. COMPLETE FUEL PUMP AND	239815 L.H. COMPLETE FUEL PUMP AND	-	1	Enquire
3	194140	FUEL LEVEL INDICATOR	194140 FUEL LEVEL INDICATOR	-	1	Enquire
4	182501	R.H. PUMP SUPPORT COVER	182501 R.H. PUMP SUPPORT COVER	-	1	Enquire
5	170945	RING NUT	170945 RING NUT	-	2	Enquire
6	182502	L.H. PUMP SUPPORT COVER	182502 L.H. PUMP SUPPORT COVER	-	1	Enquire
7	12643724	WASHER	12643724 WASHER (minimum order quantity = 20)	-	2	Enquire
8	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
9	183103	CONNECTION SLEEVE	183103 CONNECTION SLEEVE	-	2	Enquire
10	13001690	SCREW COLLAR	13001690 SCREW COLLAR	-	4	Enquire
11	10902224	SCREW	10902224 SCREW	-	38	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	38	Enquire
13	221434	RH FUEL DELIVERY TUBE	221434 RH FUEL DELIVERY TUBE	-	1	Enquire
14	221435	LH FUEL DELIVERY TUBE	221435 LH FUEL DELIVERY TUBE	-	1	Enquire
15	170946	FUEL PUMP SEAL	170946 FUEL PUMP SEAL	-	2	Enquire
16	182900	DISAREATOR	182900 DISAREATOR	-	1	Enquire
17	178430	FASTENER CLIP	178430 FASTENER CLIP	-	4	Enquire
18	160855	GROUND CABLE	160855 GROUND CABLE	-	2	Enquire
19	10902424	SCREW	10902424 SCREW	-	2	Enquire
20	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
21	12643724	WASHER	12643724 WASHER	-	2	Enquire
