Steering Column of Ferrari Ferrari 430 Challenge (2006)

View All

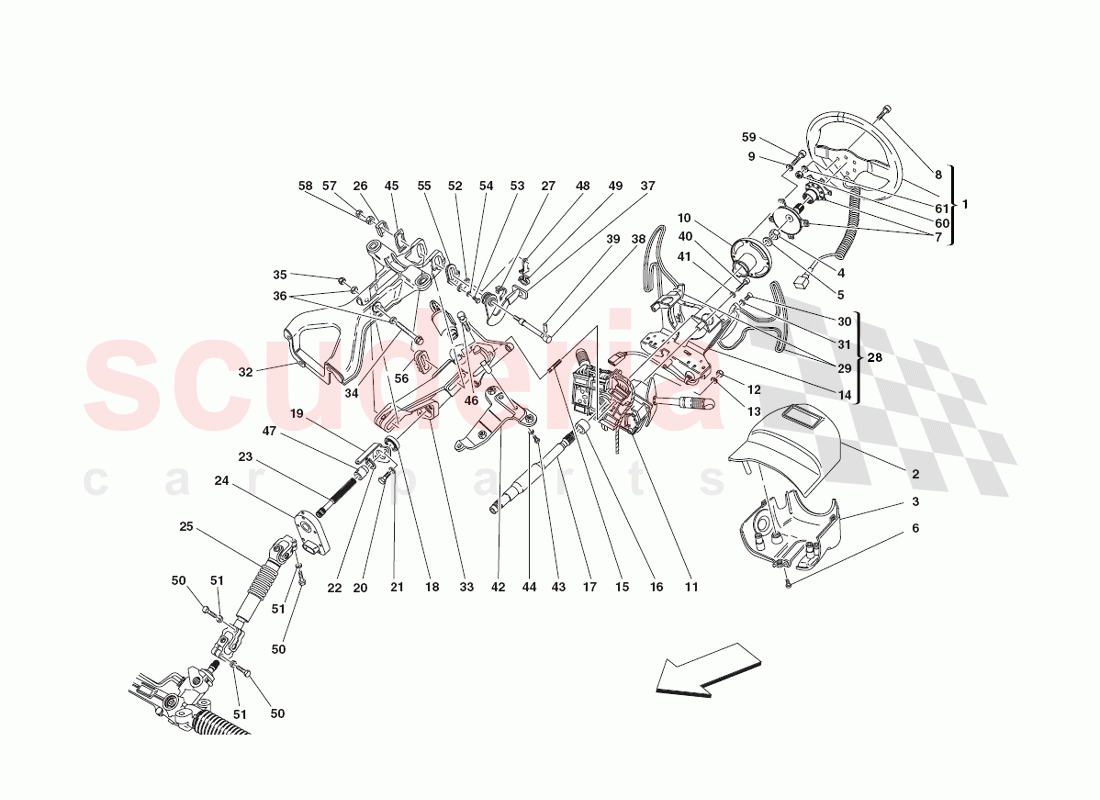

Ferrari 430 Challenge (2006) - Steering Column

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	221748	COMPLETE STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68097900	UPPER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68161600	LOWER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299557	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152034	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15960507	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222200	QUICK RELEASE STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14440734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221117	STEERING WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177585	STEERING COLUMN SWITCH ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203317	GEAR SHIFT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199094	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197701	UPPER SHAFT STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171540	BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201016	COMPLETE STEERING SENSOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183993	LOWER COLUMN AXLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195590	STEERING ANGLE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171528	STEERING CARDAN SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171529	MOBILE SPLINED SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171531	PIN RETENTION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221724	F1 GEARBOX CONTROL LEVERS ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13308977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606673	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197702	STEERING COLUMN MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197700	COLUMN MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180632	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171535	TRIMMED LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171503	ARM PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10336630	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274611	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6516420	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171502	SLIPPER SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172563	ANTI-THEFT SYSTEM FASTENER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200970	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177977	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192229	HEXAGONAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192230	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171523	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171544	ARM SIDE SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171501	SPLINED FIXED SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171542	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14433126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12577821	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1357911	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	221748	COMPLETE STEERING WHEEL	221748 COMPLETE STEERING WHEEL	-	1	Enquire
2	68097900	UPPER TRIM	68097900 UPPER TRIM	-	1	Enquire
3	68161600	LOWER COVER	68161600 LOWER COVER	-	1	Enquire
4	299557	NUT	299557 NUT	-	1	Enquire
5	152034	WASHER	152034 WASHER	-	1	Enquire
6	15960507	SCREW	15960507 SCREW	-	5	Enquire
7	222200	QUICK RELEASE STEERING WHEEL	222200 QUICK RELEASE STEERING WHEEL	-	1	Enquire
8	14440734	SCREW	14440734 SCREW	-	6	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
10	221117	STEERING WHEEL HUB	221117 STEERING WHEEL HUB	-	1	Enquire
11	177585	STEERING COLUMN SWITCH ASSEMBLY	177585 STEERING COLUMN SWITCH ASSEMBLY	-	1	Enquire
12	15896470	NUT	15896470 NUT (minimum order quantity = 20)	-	2	Enquire
13	12604178	Washer	12604178 Washer	-	2	Enquire
14	203317	GEAR SHIFT BRACKET	203317 GEAR SHIFT BRACKET	-	1	Enquire
15	11001424	STUD BOLT	11001424 STUD BOLT	-	2	Enquire
16	199094	ROLLER BEARING	199094 ROLLER BEARING	-	1	Enquire
17	197701	UPPER SHAFT STEERING COLUMN	197701 UPPER SHAFT STEERING COLUMN	-	1	Enquire
18	171540	BALL BEARING	171540 BALL BEARING	-	1	Enquire
19	201016	COMPLETE STEERING SENSOR MOUNTING BRACKET	201016 COMPLETE STEERING SENSOR MOUNTING BRACKET	-	1	Enquire
20	10902224	SCREW	10902224 SCREW	-	2	Enquire
21	11181874	WASHER	11181874 WASHER	-	2	Enquire
22	11067376	SEEGER RING	11067376 SEEGER RING	-	1	Enquire
23	183993	LOWER COLUMN AXLE	183993 LOWER COLUMN AXLE	-	1	Enquire
24	195590	STEERING ANGLE SENSOR	195590 STEERING ANGLE SENSOR	-	1	Enquire
25	171528	STEERING CARDAN SHAFT	171528 STEERING CARDAN SHAFT	-	1	Enquire
26	171529	MOBILE SPLINED SLIPPER	171529 MOBILE SPLINED SLIPPER	-	1	Enquire
27	171531	PIN RETENTION SPRING	171531 PIN RETENTION SPRING	-	1	Enquire
28	221724	F1 GEARBOX CONTROL LEVERS ASSEMBLY	221724 F1 GEARBOX CONTROL LEVERS ASSEMBLY	-	1	Enquire
30	13308977	SCREW	13308977 SCREW	-	4	Enquire
31	12606673	WASHER	12606673 WASHER	-	4	Enquire
32	197702	STEERING COLUMN MOUNTING BRACKET	197702 STEERING COLUMN MOUNTING BRACKET	-	1	Enquire
33	197700	COLUMN MOUNTING	197700 COLUMN MOUNTING	-	1	Enquire
34	180632	SCREW	180632 SCREW	-	1	Enquire
35	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	1	Enquire
36	12625224	WASHER	12625224 WASHER	-	2	Enquire
37	171535	TRIMMED LEVER	171535 TRIMMED LEVER	-	1	Enquire
38	171503	ARM PIN	171503 ARM PIN	-	1	Enquire
39	10336630	PIN	10336630 PIN	-	1	Enquire
40	13274611	SCREW	13274611 SCREW	-	3	Enquire
41	12604178	Washer	12604178 Washer	-	3	Enquire
42	6516420	BRACKET	6516420 BRACKET	-	1	Enquire
43	13273977	SCREW	13273977 SCREW (minimum order quantity = 10)	-	3	Enquire
44	62769800	WASHER	62769800 WASHER	-	3	Enquire
45	171502	SLIPPER SPRING	171502 SLIPPER SPRING	-	1	Enquire
46	172563	ANTI-THEFT SYSTEM FASTENER SCREW	172563 ANTI-THEFT SYSTEM FASTENER SCREW	-	1	Enquire
47	200970	RING NUT	200970 RING NUT	-	1	Enquire
48	177977	PLATE	177977 PLATE	-	1	Enquire
49	178430	FASTENER CLIP	178430 FASTENER CLIP	-	1	Enquire
50	192229	HEXAGONAL SCREW	192229 HEXAGONAL SCREW	-	3	Enquire
51	192230	WASHER	192230 WASHER	-	3	Enquire
52	171523	PLATE	171523 PLATE	-	1	Enquire
53	10977724	SCREW	10977724 SCREW	-	2	Enquire
54	11181574	WASHER	11181574 WASHER	-	2	Enquire
55	171544	ARM SIDE SLIPPER	171544 ARM SIDE SLIPPER	-	1	Enquire
56	171501	SPLINED FIXED SLIPPER	171501 SPLINED FIXED SLIPPER	-	1	Enquire
57	147985	NUT	147985 NUT	-	1	Enquire
58	171542	NUT	171542 NUT	-	1	Enquire
59	14433126	SCREW	14433126 SCREW	-	4	Enquire
60	12577821	NUT	12577821 NUT	-	6	Enquire
61	1357911	WASHER	1357911 WASHER	-	6	Enquire
