Water/Oil Pump of Ferrari Ferrari 430 Challenge (2006)

View All

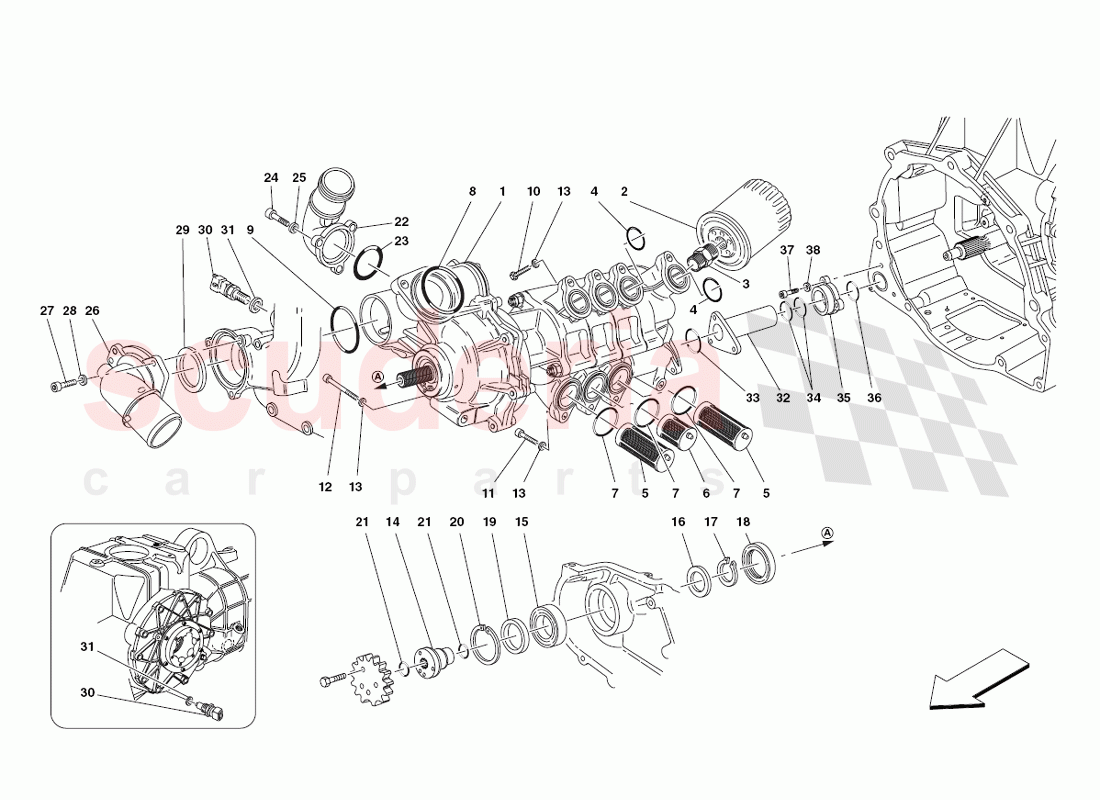

Ferrari 430 Challenge (2006) - Water/Oil Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	217628	WATER/OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915754	OIL FILTER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	177604	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133938	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187051	LATERAL OIL RECOVERY FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187162	CENTRAL ENGINE OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140071	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132829	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141250	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185345	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14359324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189778	JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155996	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177597	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11067276	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121276	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177596	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11381076	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186272	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241609	WATER INLET COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

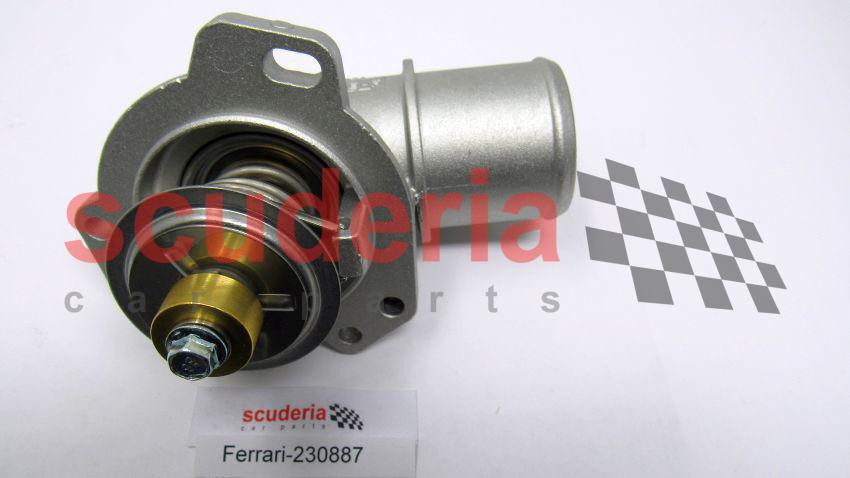

	230887	Thermostat Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234583	OIL SUCTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151914	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149536	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234582	FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	217628	WATER/OIL PUMP	217628 WATER/OIL PUMP	-	1	Enquire
2	915754	OIL FILTER ARRIVING SOON	915754 OIL FILTER ARRIVING SOON	-	1	Enquire
3	177604	THREADED CONNECTOR	177604 THREADED CONNECTOR	-	1	Enquire
4	133938	O-RING	133938 O-RING	-	4	Enquire
5	187051	LATERAL OIL RECOVERY FILTER	187051 LATERAL OIL RECOVERY FILTER	-	2	Enquire
6	187162	CENTRAL ENGINE OIL FILTER	187162 CENTRAL ENGINE OIL FILTER	-	1	Enquire
7	140071	O-Ring	140071 O-Ring	-	3	Enquire
8	132829	O-RING	132829 O-RING	-	1	Enquire
9	141250	O-Ring	141250 O-Ring	-	1	Enquire
10	185345	SCREW	185345 SCREW M 8X25-	-	4	Enquire
11	14306424	SCREW	14306424 SCREW M 8X25-	-	3	Enquire
11	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 M 8X30-	-	3	Enquire
12	14359324	SCREW	14359324 SCREW M 8X65-	-	2	Enquire
13	986899	WASHER	986899 WASHER	-	10	Enquire
14	189778	JOINT	189778 JOINT	-	1	Enquire
15	155996	BEARING	155996 BEARING	-	1	Enquire
16	177597	COMPENSATOR RING	177597 COMPENSATOR RING	-	1	Enquire
17	11067276	SEEGER RING	11067276 SEEGER RING	-	1	Enquire
18	121276	GASKET	121276 GASKET	-	1	Enquire
19	177596	COMPENSATOR RING	177596 COMPENSATOR RING	-	1	Enquire
20	11381076	SEEGER RING	11381076 SEEGER RING	-	1	Enquire
21	186272	O-RING	186272 O-RING	-	2	Enquire
22	241609	WATER INLET COVER	241609 WATER INLET COVER	-	1	Enquire
23	154191	GASKET	154191 GASKET	-	1	Enquire
24	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	3	Enquire
25	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
26	230887	Thermostat Cover	230887 Thermostat Cover	-	1	Enquire
27	14305324	SCREW	14305324 SCREW	-	3	Enquire
28	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
29	137873	O-Ring	137873 O-Ring	-	1	Enquire
30	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	2	Enquire
31	10298460	GASKET	10298460 GASKET	-	2	Enquire
32	234583	OIL SUCTION PIPE	234583 OIL SUCTION PIPE	-	1	Enquire
33	151914	GASKET	151914 GASKET	-	1	Enquire
34	149536	GASKET	149536 GASKET	-	2	Enquire
35	234582	FLANGE	234582 FLANGE	-	1	Enquire
36	862084	GASKET	862084 GASKET	-	1	Enquire
37	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	6	Enquire
38	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
