Radiator And Cooling Fans

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - RADIATOR AND COOLING FANS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
384000101 WATER RADIATOR $977.60 To Order
Photo Part No Description Price (each) Stock
189453 BUSH $2.00 To Order
Photo Part No Description Price (each) Stock
383300023 AIR DEFLECTOR ASSY $1,124.74 To Order
Photo Part No Description Price (each) Stock
15958807 SCREW $2.00 To Order
Photo Part No Description Price (each) Stock
980000960 COOLING FANS RESISTOR $117.47 To Order
Photo Part No Description Price (each) Stock
373330320 REBOUND STRAP $6.96 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $2.00 To Order
Photo Part No Description Price (each) Stock
14498801 Washer $1.57 To Order
Photo Part No Description Price (each) Stock
371390773 PLATE $10.25 To Order
Photo Part No Description Price (each) Stock
327720338 SCREW $2.84 To Order
Photo Part No Description Price (each) Stock
14498801 Washer $1.57 To Order
Photo Part No Description Price (each) Stock
315520376 BUSH $6.68 To Order
Photo Part No Description Price (each) Stock
219456 VIBRATION-DAMPING MOUNT $2.56 To Order
Photo Part No Description Price (each) Stock
12646604 WASHER $2.56 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.55 IN STOCK
Photo Part No Description Price (each) Stock
268185 CLAMP $2.00 To Order
Photo Part No Description Price (each) Stock
384000386 UPPER PLUG $11.32 To Order
Photo Part No Description Price (each) Stock
384000385 WATER RADIATOR GASKET $10.97 To Order
Photo Part No Description Price (each) Stock
384000144 RH BRACKET $38.13 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $2.00 To Order
Photo Part No Description Price (each) Stock
384000143 LH BRACKET $14.23 To Order
View All

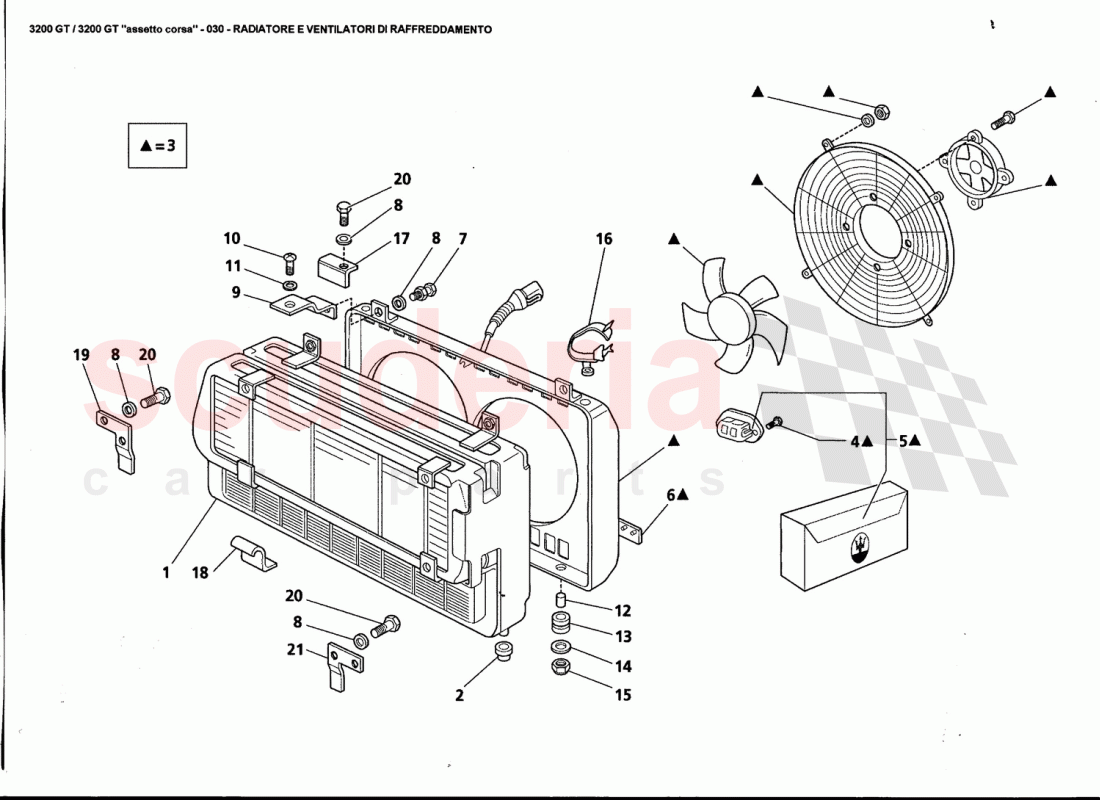

RADIATOR AND COOLING FANS of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 384000101
WATER RADIATOR 		$977.60 1
2 189453
BUSH 		$2.00 2
3 383300023
AIR DEFLECTOR ASSY 		$1,124.74 1
4 15958807
SCREW 		$2.00 2
5 980000960
COOLING FANS RESISTOR 		$117.47 1
6 373330320
REBOUND STRAP 		$6.96 8
7 10902224
SCREW M6 X 16 		$2.00 2
8 14498801
Washer 		$1.57 6
9 371390773
PLATE 		$10.25 2
10 327720338
SCREW 		$2.84 2
11 14498801
Washer 		$1.57 2
12 315520376
BUSH 		$6.68 2
13 219456
VIBRATION-DAMPING MOUNT 		$2.56 2
14 12646604
WASHER 		$2.56 2
15 14039614
NUT
IN STOCK 		$1.55 2
16 268185
CLAMP 		$2.00 6
17 384000386
UPPER PLUG 		$11.32 2
18 384000385
WATER RADIATOR GASKET 		$10.97 2
19 384000144
RH BRACKET 		$38.13 1
20 10902224
SCREW M6 X 16 		$2.00 4
21 384000143
LH BRACKET 		$14.23 1
