Name: IGNITION SYSTEM
Rating: 5.0 (1 reviews)

View All

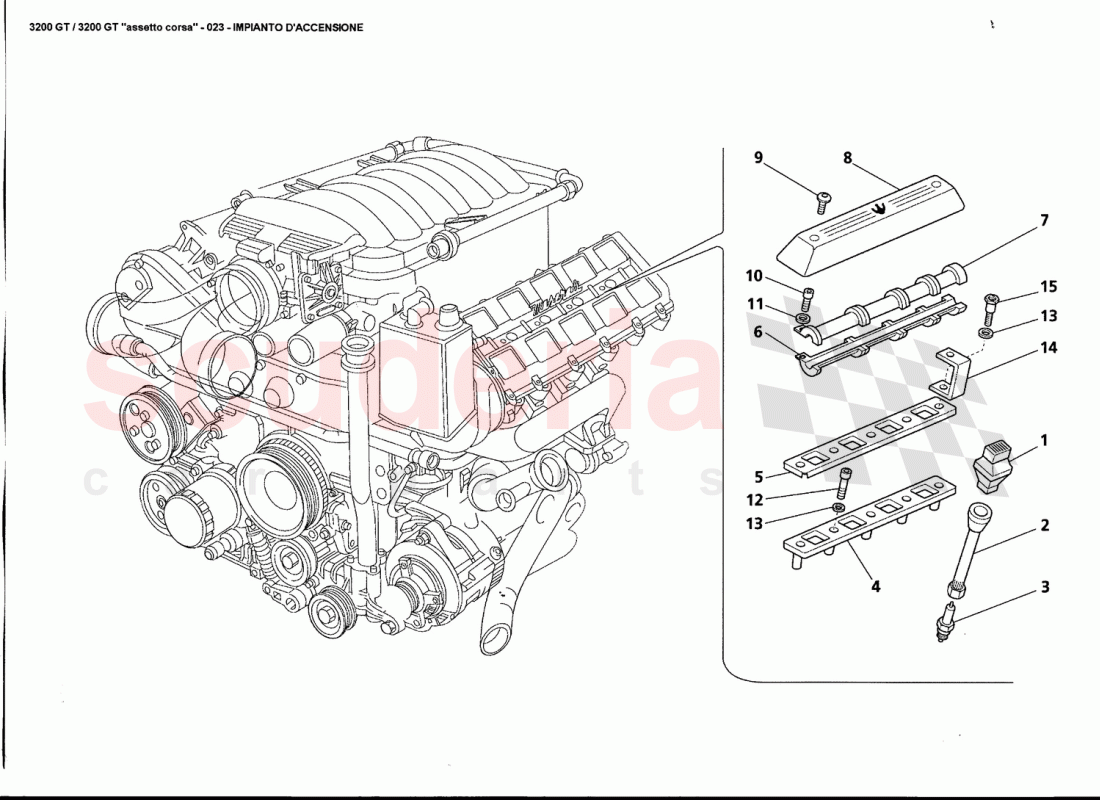

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	571084200	COIL ON SPARK PLUGS	$210.87	To Order

Photo	Part No	Description	Price (each)	Stock
	571085101	EXTENSION	$118.20	To Order

Photo	Part No	Description	Price (each)	Stock
	192637	Spark Plug NGK	$26.17	To Order

Photo	Part No	Description	Price (each)	Stock
	578982700	COIL FASTENING ASSY PLATE	$53.11	To Order

Photo	Part No	Description	Price (each)	Stock
	578982000	COIL RETAINING COVER	$50.20	To Order

Photo	Part No	Description	Price (each)	Stock
	479061400	LOWER HALF-SHELL	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	479061300	UPPER HALF-SHELL	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	46401657	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14496400	SPRING WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14306021	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	585009602	BRACKET	$55.64	To Order

Photo	Part No	Description	Price (each)	Stock
	585414300	STUD	$26.19	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	571084200	COIL ON SPARK PLUGS	571084200 COIL ON SPARK PLUGS	$210.87	8
2	571085101	EXTENSION	571085101 EXTENSION	$118.20	8
3	192637	Spark Plug NGK	192637 Spark Plug NGK	$26.17 MSRP: ~~33.83~~ (22.6% off)	8
4	578982700	COIL FASTENING ASSY PLATE	578982700 COIL FASTENING ASSY PLATE	$53.11	2
5	578982000	COIL RETAINING COVER	578982000 COIL RETAINING COVER	$50.20	2
6	479061400	LOWER HALF-SHELL	479061400 LOWER HALF-SHELL	$3.53	2
7	479061300	UPPER HALF-SHELL	479061300 UPPER HALF-SHELL	$3.53	2
8	585000801	COIL RETAINING COVER RH	585000801 COIL RETAINING COVER RH Only GS	$81.11	2
8	585000860	COIL RETAINING COVER RH	585000860 COIL RETAINING COVER RH Only GD	$221.43	2
8	585000901	COIL RETAINING COVER LH	585000901 COIL RETAINING COVER LH	$105.25	2
9	46401657	SCREW	46401657 SCREW	$2.83	4
10	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	14305521 ALLEN SCREW SOCKET HEAD M6 X 30	$1.97	8
11	14496400	SPRING WASHER	14496400 SPRING WASHER	$1.55	8
12	14306021	SCREW	14306021 SCREW	$2.39	8
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	$2.41	10
14	585009602	BRACKET	585009602 BRACKET	$55.64	2
15	585414300	STUD	585414300 STUD	$26.19	2
