ENGINE COOLING PIPES AND THERMOSTAT

Find Your Part

Maserati 3200 GT / Assetto Corsa - ENGINE COOLING PIPES AND THERMOSTAT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
585048000 WATER MANIFOLD FROM HEAD TO PUMP $199.04 To Order
Photo Part No Description Price (each) Stock
13097390 CLAMP $4.22 To Order
Photo Part No Description Price (each) Stock

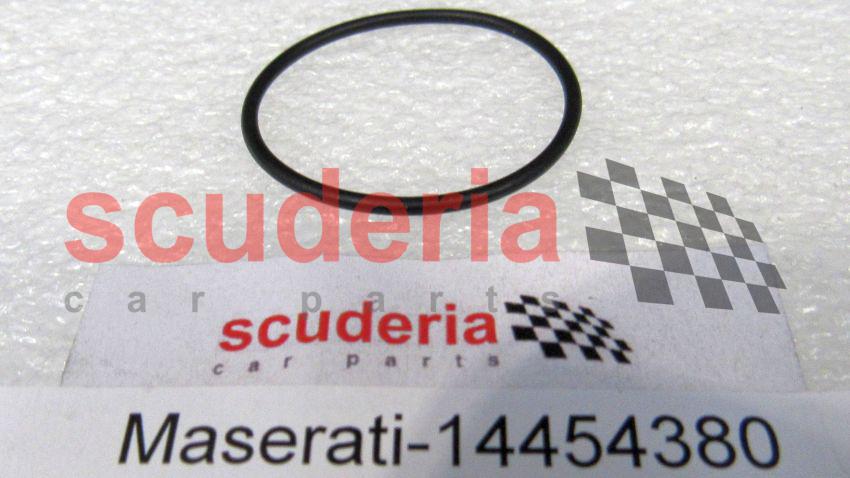

14454380 RUBBER GASKET $1.32 To Order
Photo Part No Description Price (each) Stock
479009902 UNION $20.86 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $1.55 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.92 To Order
Photo Part No Description Price (each) Stock
183013 UNION $17.77 To Order
Photo Part No Description Price (each) Stock
312020410 CLAMP $3.53 To Order
Photo Part No Description Price (each) Stock
585042560 SLEEVE $37.85 To Order
585042501 SLEEVE $32.62 To Order
585042500 SLEEVE $139.41 To Order
Photo Part No Description Price (each) Stock
374091382 CLAMP $1.27 To Order
Photo Part No Description Price (each) Stock
578369600 RUBBER HOSE $155.51 To Order
Photo Part No Description Price (each) Stock
585042200 WATER DELIVERY LINE $247.87 To Order
585042201 WATER DELIVERY LINE $25.21 To Order
585042260 WATER DELIVERY LINE $21.75 To Order
Photo Part No Description Price (each) Stock
319220424 WASHER $1.27 To Order
Photo Part No Description Price (each) Stock
312020510 SCREW $8.88 To Order
Photo Part No Description Price (each) Stock
585041800 WATER VAPOURS VENT $158.76 To Order
Photo Part No Description Price (each) Stock
13125370 STRIP COLLAR $1.97 To Order
Photo Part No Description Price (each) Stock
384000511 SLEEVE $191.07 To Order
Photo Part No Description Price (each) Stock
585042600 SLEEVE $34.16 To Order
Photo Part No Description Price (each) Stock
12646604 WASHER $2.53 To Order
Photo Part No Description Price (each) Stock
585047000 HOSE $132.74 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $1.55 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
384000318 UNION FOR WIPER RESERVOIR $487.93 To Order
Photo Part No Description Price (each) Stock
98108 CLAMP $2.83 To Order
Photo Part No Description Price (each) Stock
98088 CLIP $2.83 To Order
Photo Part No Description Price (each) Stock
585049600 BRACKET $6.62 To Order
Photo Part No Description Price (each) Stock
384000316 PIPES $15.33 To Order
Photo Part No Description Price (each) Stock
10461987 RING $2.83 To Order
Photo Part No Description Price (each) Stock
254717 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
82404496 WASHER $3.67 To Order
Photo Part No Description Price (each) Stock
384000136 NOURICE SUPPORTING SHELF $24.79 To Order
Photo Part No Description Price (each) Stock
16286127 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12646604 WASHER $2.53 To Order
Photo Part No Description Price (each) Stock
14305521 ALLEN SCREW SOCKET HEAD M6 X 30 $1.97 To Order
Photo Part No Description Price (each) Stock
384001370 NOURICE PROTECTION PLATE $323.03 To Order
384010370 NOURICE PROTECTION PLATE $144.81 To Order
Photo Part No Description Price (each) Stock
384000102 EXPANSION TANK LHD $88.71 To Order
384000102 EXPANSION TANK LHD $88.71 To Order
Photo Part No Description Price (each) Stock
585079801 WATER TEMPERATURE SENSOR $23.25 To Order
Photo Part No Description Price (each) Stock
10261560 COPPER WASHER $1.27 To Order
Photo Part No Description Price (each) Stock
384000324 SLEEVE $62.04 To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR $1.97 To Order
Photo Part No Description Price (each) Stock
296782 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
384000320 SLEEVE $84.30 To Order
Photo Part No Description Price (each) Stock
384001320 SLEEVE $105.78 To Order
Photo Part No Description Price (each) Stock
384001339 SLEEVE $198.71 To Order
Photo Part No Description Price (each) Stock
384000340 SLEEVE $75.99 To Order
Photo Part No Description Price (each) Stock
585045600 Water Thermostat $230.15 To Order
Photo Part No Description Price (each) Stock
384000323 SLEEVE $108.34 To Order
Photo Part No Description Price (each) Stock
384000337 PIPE $213.47 To Order
Photo Part No Description Price (each) Stock
13000490 SCREW COLLAR $1.97 To Order
Photo Part No Description Price (each) Stock
980145477 CAP FOR COOLANT TANK $23.08 To Order
Photo Part No Description Price (each) Stock
10461987 RING $2.83 To Order
Photo Part No Description Price (each) Stock
NLA04052021 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
363200327 CLAMP $5.22 To Order
Photo Part No Description Price (each) Stock
385510200 RIGID PIPE $116.12 To Order
385501200 RIGID PIPE $118.95 To Order
Photo Part No Description Price (each) Stock
385500371 GASKET $1.97 To Order
View All

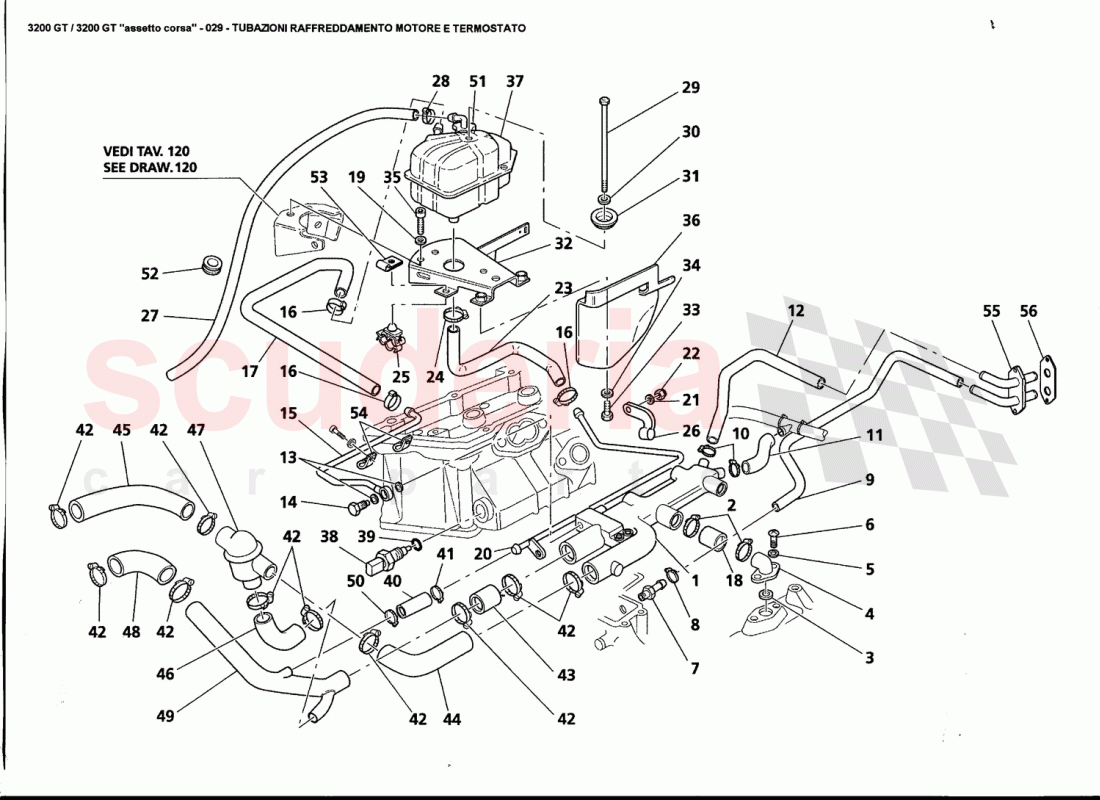

ENGINE COOLING PIPES AND THERMOSTAT of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 585048000
WATER MANIFOLD FROM HEAD TO PUMP 		$199.04 1
2 13097390
CLAMP 		$4.22 8
3 14454380
RUBBER GASKET 		$1.32 4
4 479009902
UNION 		$20.86 4
5 10519424
WASHER 		$1.55 8
6 231617
SCREW M6 X 18 		$2.92 8
7 183013
UNION 		$17.77 1
8 312020410
CLAMP 		$3.53 1
9 585042560
SLEEVE
Only GD 		$37.85 1
9 585042501
SLEEVE
Only GS / Valid from Ass. Nr. 4856 		$32.62 1
9 585042500
SLEEVE
Only GS / Valid till Ass. Nr. 4855 		$139.41 1
10 374091382
CLAMP 		$1.27 2
11 578369600
RUBBER HOSE 		$155.51 1
12 585042200
WATER DELIVERY LINE
Only GS / Valid till Ass. Nr. 4855 		$247.87 1
12 585042201
WATER DELIVERY LINE
Only GS / Valid from Ass. Nr. 4856 		$25.21 1
12 585042260
WATER DELIVERY LINE
Only GD 		$21.75 1
13 319220424
WASHER 		$1.27 2
14 312020510
SCREW 		$8.88 1
15 585041800
WATER VAPOURS VENT 		$158.76 1
16 13125370
STRIP COLLAR 		$1.97 3
17 384000511
SLEEVE 		$191.07 1
18 585042600
SLEEVE 		$34.16 4
19 12646604
WASHER 		$2.53 2
20 585047000
HOSE 		$132.74 1
21 10519424
WASHER 		$1.55 1
22 14039614
NUT 		$1.54 1
23 384000318
UNION FOR WIPER RESERVOIR 		$487.93 1
24 98108
CLAMP 		$2.83 1
25 98088
CLIP 		$2.83 1
26 585049600
BRACKET 		$6.62 1
27 384000316
PIPES 		$15.33 1
28 10461987
RING 		$2.83 1
29 254717
SCREW 		- 1 Enquire
30 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		$2.41 1
31 82404496
WASHER 		$3.67 1
32 384000136
NOURICE SUPPORTING SHELF 		$24.79 1
33 16286127
SCREW 		- 2 Enquire
34 12646604
WASHER 		$2.53 2
35 14305521
ALLEN SCREW SOCKET HEAD M6 X 30 		$1.97 2
36 384001370
NOURICE PROTECTION PLATE
Only GS 		$323.03 1
36 384010370
NOURICE PROTECTION PLATE
Only GD 		$144.81 1
37 384000102
EXPANSION TANK LHD
Valid from Ass. Nr.2759 		$88.71 1
37 384000102
EXPANSION TANK LHD
Valid till Ass. Nr.2758 		$88.71 1
38 585079801
WATER TEMPERATURE SENSOR 		$23.25 1
39 10261560
COPPER WASHER 		$1.27 1
40 384000324
SLEEVE 		$62.04 1
41 13001690
SCREW COLLAR 		$1.97 3
42 296782
SCREW COLLAR 		- 10 Enquire
43 384000320
SLEEVE 		$84.30 1
44 384001320
SLEEVE 		$105.78 1
45 384001339
SLEEVE 		$198.71 1
46 384000340
SLEEVE 		$75.99 1
47 585045600
Water Thermostat 		$230.15 1
48 384000323
SLEEVE 		$108.34 1
49 384000337
PIPE 		$213.47 1
50 13000490
SCREW COLLAR 		$1.97 1
51 980145477
CAP FOR COOLANT TANK 		$23.08 1
52 10461987
RING 		$2.83 1
53 NLA04052021
SLEEVE 		- 1 Enquire
54 363200327
CLAMP 		$5.22 2
55 385510200
RIGID PIPE
Only GD 		$116.12 1
55 385501200
RIGID PIPE
Only GS 		$118.95 1
56 385500371
GASKET 		$1.97 1
