OIL VAPOUR RECOVERY of Maserati Maserati 3200 GT / Assetto Corsa

View All

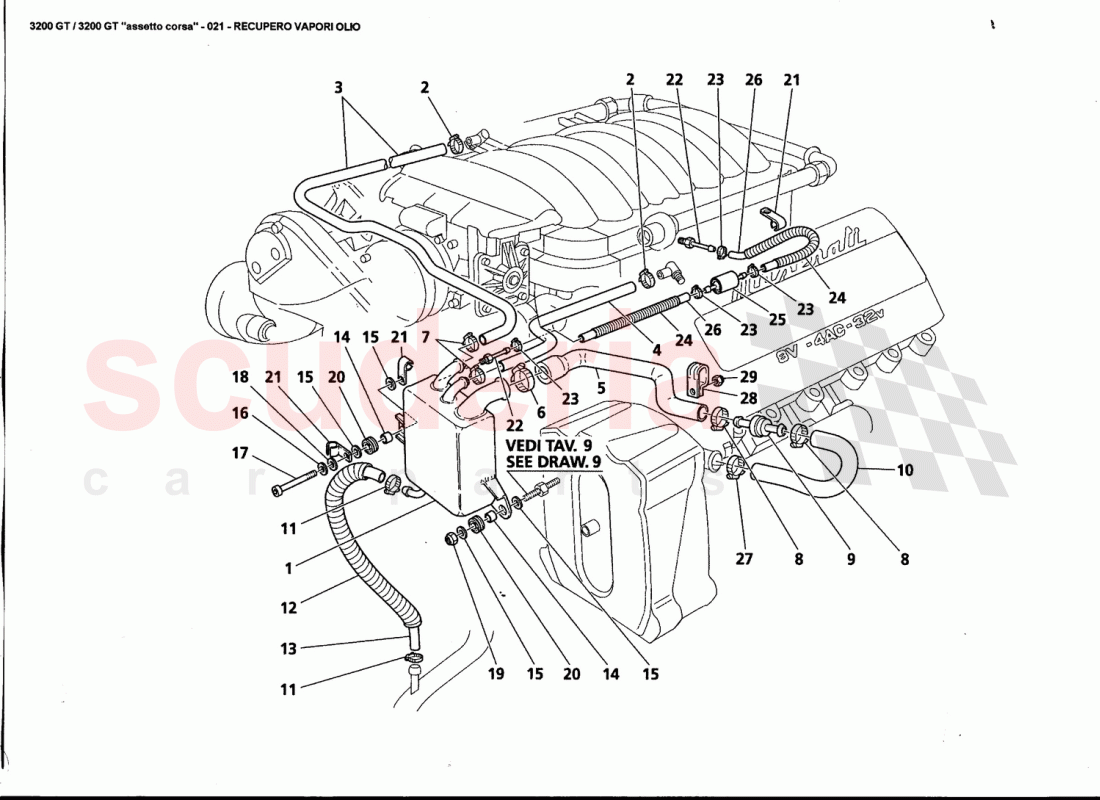

Maserati 3200 GT / Assetto Corsa - OIL VAPOUR RECOVERY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	585043003	OIL VAPOURS SEPARATOR	Enquire	To Order
	585043003	OIL VAPOURS SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377492352	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585003400	OIL VAPOURS BREATHER PIPE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585003500	OIL VAPOURS BREATHER PIPE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585046601	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	578410800	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377492352	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	578410900	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585069900	UNIDIRECTIONAL VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NLA04052021	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	374091380	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318720333	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	19300485	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219457	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219456	VIBRATION-DAMPING MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187713	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585412100	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	97218	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315520169	UNIDIRECTIONAL VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300100803	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	369205151	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	585043003	OIL VAPOURS SEPARATOR	585043003 OIL VAPOURS SEPARATOR Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454	-	1	Enquire
1	585043003	OIL VAPOURS SEPARATOR	585043003 OIL VAPOURS SEPARATOR Valid for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454	-	1	Enquire
2	377492352	CLAMP	377492352 CLAMP	-	2	Enquire
3	585003400	OIL VAPOURS BREATHER PIPE RH	585003400 OIL VAPOURS BREATHER PIPE RH	-	1	Enquire
4	585003500	OIL VAPOURS BREATHER PIPE LH	585003500 OIL VAPOURS BREATHER PIPE LH	-	1	Enquire
5	585046601	SLEEVE	585046601 SLEEVE	-	1	Enquire
6	578410800	CLAMP	578410800 CLAMP	-	1	Enquire
7	377492352	CLAMP	377492352 CLAMP	-	2	Enquire
8	578410900	CLAMP	578410900 CLAMP	-	2	Enquire
9	585069900	UNIDIRECTIONAL VALVE	585069900 UNIDIRECTIONAL VALVE	-	1	Enquire
10	NLA04052021	SLEEVE	NLA04052021 SLEEVE	-	1	Enquire
11	374091380	CLAMP	374091380 CLAMP	-	2	Enquire
12	318720333	PIPE	318720333 PIPE Section in meters: order minimum amount of 1 m or multiples	-	-	Enquire
13	19300485	SLEEVE	19300485 SLEEVE Section in meters: order minimum amount of 1 m or multiples	-	-	Enquire
14	219457	SPACER	219457 SPACER	-	2	Enquire
15	14498801	Washer	14498801 Washer	-	4	Enquire
16	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
17	14304824	SCREW	14304824 SCREW	-	1	Enquire
18	10519424	WASHER	10519424 WASHER	-	1	Enquire
19	14039614	NUT	14039614 NUT	-	1	Enquire
20	219456	VIBRATION-DAMPING MOUNT	219456 VIBRATION-DAMPING MOUNT	-	2	Enquire
21	187713	RETAINING CLIP	187713 RETAINING CLIP	-	4	Enquire
22	585412100	UNION	585412100 UNION	-	2	Enquire
23	262109	COLLAR	262109 COLLAR	-	4	Enquire
24	97218	PIPE	97218 PIPE Section in meters: order minimum amount of 1 m or multiples	-	-	Enquire
25	315520169	UNIDIRECTIONAL VALVE	315520169 UNIDIRECTIONAL VALVE	-	1	Enquire
26	300100803	RUBBER HOSE	300100803 RUBBER HOSE Section in meters: order minimum amount of 1 m or multiples	-	-	Enquire
27	262109	COLLAR	262109 COLLAR	-	1	Enquire
28	369205151	CLAMP	369205151 CLAMP	-	1	Enquire
29	14039614	NUT	14039614 NUT	-	1	Enquire
