TIMING of Maserati Maserati 3200 GT / Assetto Corsa

View All

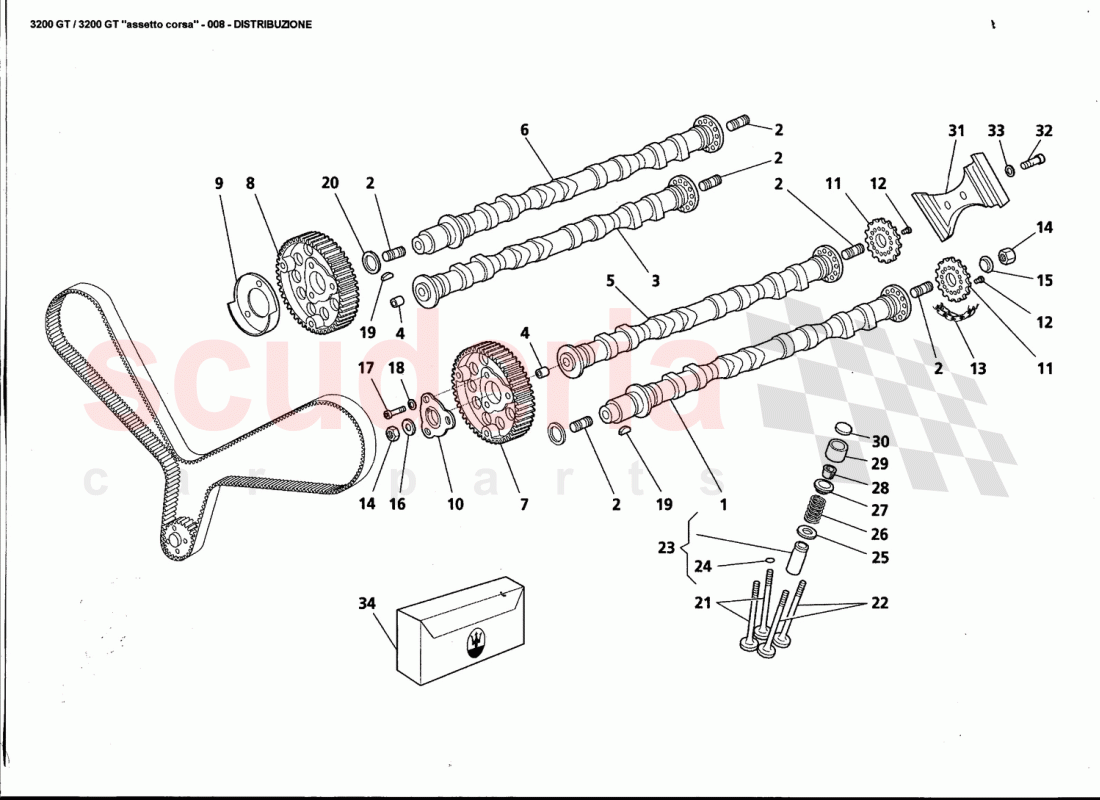

Maserati 3200 GT / Assetto Corsa - TIMING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	585030300	EXHAUST CAMSHAFT LH HEAD ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	475034900	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585030003	INTAKE CAMSHAFT LH HEAD ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311053392	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585030100	INTAKE CAMSHAFT RH HEAD ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585030202	EXHAUST CAMSHAFT RH HEAD ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	475030801	LH CAMSHAFT CONTROL PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585035500	RH CAMSHAFT CONTROL PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585030600	CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	475031700	PULLEY DRIVING FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	475036500	CAMSHAFT CHAIN PINION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311053308	CAMSHAFT DRIVING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	479034500	CAM DRIVING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11691124	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	475038200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	475033600	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311053460	WOODRUFF KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311053314	SHIM WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	578031900	NTAKE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585032002	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310620005	VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310620314	RETAINING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	600032200	LOWER VALVE SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585032300	VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585032100	UPPER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	571032500	HALF CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	600032803	VALVE CONTROL BOWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	600033308	VALVE CLEARANCE ADJ. CAP 2,900 THICK	Enquire	To Order
	600033309	VALVE CLEARANCE ADJ. CAP 2,950 THICK	Enquire	To Order
	600033310	VALVE CLEARANCE ADJ. CAP 3,000 THICK	Enquire	To Order

...and 27 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	578036700	Shoe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9555	Valve Adjusting Cap Kit	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	585030300	EXHAUST CAMSHAFT LH HEAD ASSY	585030300 EXHAUST CAMSHAFT LH HEAD ASSY	-	1	Enquire
2	475034900	STUD BOLT	475034900 STUD BOLT	-	6	Enquire
3	585030003	INTAKE CAMSHAFT LH HEAD ASSY	585030003 INTAKE CAMSHAFT LH HEAD ASSY	-	1	Enquire
4	311053392	PLUG	311053392 PLUG	-	2	Enquire
5	585030100	INTAKE CAMSHAFT RH HEAD ASSY	585030100 INTAKE CAMSHAFT RH HEAD ASSY	-	1	Enquire
6	585030202	EXHAUST CAMSHAFT RH HEAD ASSY	585030202 EXHAUST CAMSHAFT RH HEAD ASSY	-	1	Enquire
7	475030801	LH CAMSHAFT CONTROL PULLEY	475030801 LH CAMSHAFT CONTROL PULLEY	-	1	Enquire
8	585035500	RH CAMSHAFT CONTROL PULLEY	585035500 RH CAMSHAFT CONTROL PULLEY	-	1	Enquire
9	585030600	CUP	585030600 CUP	-	1	Enquire
10	475031700	PULLEY DRIVING FLANGE	475031700 PULLEY DRIVING FLANGE	-	2	Enquire
11	475036500	CAMSHAFT CHAIN PINION	475036500 CAMSHAFT CHAIN PINION	-	4	Enquire
12	311053308	CAMSHAFT DRIVING DOWEL	311053308 CAMSHAFT DRIVING DOWEL	-	4	Enquire
13	479034500	CAM DRIVING CHAIN	479034500 CAM DRIVING CHAIN	-	2	Enquire
14	11691124	NUT	11691124 NUT	-	6	Enquire
15	475038200	WASHER	475038200 WASHER	-	4	Enquire
16	475033600	WASHER	475033600 WASHER	-	2	Enquire
17	231617	SCREW M6 X 18	231617 SCREW M6 X 18	-	6	Enquire
18	10519424	WASHER	10519424 WASHER	-	6	Enquire
19	311053460	WOODRUFF KEY	311053460 WOODRUFF KEY	-	2	Enquire
20	311053314	SHIM WASHER	311053314 SHIM WASHER	-	4	Enquire
21	578031900	NTAKE VALVE	578031900 NTAKE VALVE	-	16	Enquire
22	585032002	EXHAUST VALVE	585032002 EXHAUST VALVE	-	16	Enquire
23	310620005	VALVE GUIDE	310620005 VALVE GUIDE	-	32	Enquire
24	310620314	RETAINING RING	310620314 RETAINING RING	-	32	Enquire
25	600032200	LOWER VALVE SPRING PLATE	600032200 LOWER VALVE SPRING PLATE	-	32	Enquire
26	585032300	VALVE SPRING	585032300 VALVE SPRING	-	32	Enquire
27	585032100	UPPER PLATE	585032100 UPPER PLATE	-	32	Enquire
28	571032500	HALF CONE	571032500 HALF CONE	-	64	Enquire
29	600032803	VALVE CONTROL BOWL	600032803 VALVE CONTROL BOWL	-	32	Enquire
30	600033308	VALVE CLEARANCE ADJ. CAP 2,900 THICK	600033308 VALVE CLEARANCE ADJ. CAP 2,900 THICK As necessary	-	-	Enquire
30	600033309	VALVE CLEARANCE ADJ. CAP 2,950 THICK	600033309 VALVE CLEARANCE ADJ. CAP 2,950 THICK As necessary	-	-	Enquire
30	600033310	VALVE CLEARANCE ADJ. CAP 3,000 THICK	600033310 VALVE CLEARANCE ADJ. CAP 3,000 THICK As necessary	-	-	Enquire
30	600033311	VALVE CLEARANCE ADJ. CAP 3,050 THICK	600033311 VALVE CLEARANCE ADJ. CAP 3,050 THICK As necessary	-	-	Enquire
30	600033312	VALVE CLEARANCE ADJ. CAP 3,100 THICK	600033312 VALVE CLEARANCE ADJ. CAP 3,100 THICK As necessary	-	-	Enquire
30	600033313	VALVE CLEARANCE ADJ. CAP 3,150 THICK	600033313 VALVE CLEARANCE ADJ. CAP 3,150 THICK As necessary	-	-	Enquire
30	600033307	VALVE CLEARANCE ADJ. CAP 2,850 THICK	600033307 VALVE CLEARANCE ADJ. CAP 2,850 THICK As necessary	-	-	Enquire
30	600033306	VALVE CLEARANCE ADJ. CAP 2,800 THICK	600033306 VALVE CLEARANCE ADJ. CAP 2,800 THICK As necessary	-	-	Enquire
30	600033305	VALVE CLEARANCE ADJ. CAP 2,750 THICK	600033305 VALVE CLEARANCE ADJ. CAP 2,750 THICK As necessary	-	-	Enquire
30	600033304	VALVE CLEARANCE ADJ. CAP 2,700 THICK	600033304 VALVE CLEARANCE ADJ. CAP 2,700 THICK As necessary	-	-	Enquire
30	600033303	VALVE CLEARANCE ADJ. CAP 2,650 THICK	600033303 VALVE CLEARANCE ADJ. CAP 2,650 THICK As necessary	-	-	Enquire
30	600033302	VALVE CLEARANCE ADJ. CAP 2,600 THICK	600033302 VALVE CLEARANCE ADJ. CAP 2,600 THICK As necessary	-	-	Enquire
30	600033301	VALVE CLEARANCE ADJ. CAP 2,550 THICK	600033301 VALVE CLEARANCE ADJ. CAP 2,550 THICK As necessary	-	-	Enquire
30	600033300	VALVE CLEARANCE ADJ. CAP 2,500 THICK	600033300 VALVE CLEARANCE ADJ. CAP 2,500 THICK As necessary	-	-	Enquire
30	600033314	VALVE CLEARANCE ADJ. CAP 3,200 THICK	600033314 VALVE CLEARANCE ADJ. CAP 3,200 THICK As necessary	-	-	Enquire
30	600033315	VALVE CLEARANCE ADJ. CAP 3,250 THICK	600033315 VALVE CLEARANCE ADJ. CAP 3,250 THICK As necessary	-	-	Enquire
30	600033329	VALVE CLEARANCE ADJ. CAP 3.275 THICK	600033329 VALVE CLEARANCE ADJ. CAP 3.275 THICK As necessary	-	-	Enquire
30	600033328	VALVE CLEARANCE ADJ. CAP 3.225 THICK	600033328 VALVE CLEARANCE ADJ. CAP 3.225 THICK As necessary	-	-	Enquire
30	600033327	VALVE CLEARANCE ADJ. CAP 3.175 THICK	600033327 VALVE CLEARANCE ADJ. CAP 3.175 THICK As necessary	-	-	Enquire
30	600033326	VALVE CLEARANCE ADJ. CAP 3.125 THICK	600033326 VALVE CLEARANCE ADJ. CAP 3.125 THICK As necessary	-	-	Enquire
30	600033325	VALVE CLEARANCE ADJ. CAP 3.075 THICK	600033325 VALVE CLEARANCE ADJ. CAP 3.075 THICK As necessary	-	-	Enquire
30	600033324	VALVE CLEARANCE ADJ. CAP 3.025 THICK	600033324 VALVE CLEARANCE ADJ. CAP 3.025 THICK As necessary	-	-	Enquire
30	600033323	VALVE CLEARANCE ADJ. CAP 2,975 THICK	600033323 VALVE CLEARANCE ADJ. CAP 2,975 THICK As necessary	-	-	Enquire
30	600033322	VALVE CLEARANCE ADJ. CAP 2,925 THICK	600033322 VALVE CLEARANCE ADJ. CAP 2,925 THICK As necessary	-	-	Enquire
30	600033316	VALVE CLEARANCE ADJ. CAP 3,300 THICK	600033316 VALVE CLEARANCE ADJ. CAP 3,300 THICK As necessary	-	-	Enquire
30	600033317	VALVE CLEARANCE ADJ. CAP 3,350 THICK	600033317 VALVE CLEARANCE ADJ. CAP 3,350 THICK As necessary	-	-	Enquire
30	600033318	VALVE CLEARANCE ADJ. CAP 3,400 THICK	600033318 VALVE CLEARANCE ADJ. CAP 3,400 THICK As necessary	-	-	Enquire
30	600033319	VALVE CLEARANCE ADJ. CAP 3,450 THICK	600033319 VALVE CLEARANCE ADJ. CAP 3,450 THICK As necessary	-	-	Enquire
30	600033320	VALVE CLEARANCE ADJ. CAP 3,500 THICK	600033320 VALVE CLEARANCE ADJ. CAP 3,500 THICK As necessary	-	-	Enquire
30	600033321	VALVE CLEARANCE ADJ. CAP 3,550 THICK	600033321 VALVE CLEARANCE ADJ. CAP 3,550 THICK As necessary	-	-	Enquire
31	578036700	Shoe	578036700 Shoe	-	2	Enquire
32	231617	SCREW M6 X 18	231617 SCREW M6 X 18	-	4	Enquire
33	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
34	9555	Valve Adjusting Cap Kit	9555 Valve Adjusting Cap Kit	-	1	Enquire
