Name: TIMING CONTROL
Rating: 4.8 (1 reviews)

TIMING CONTROL of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - TIMING CONTROL

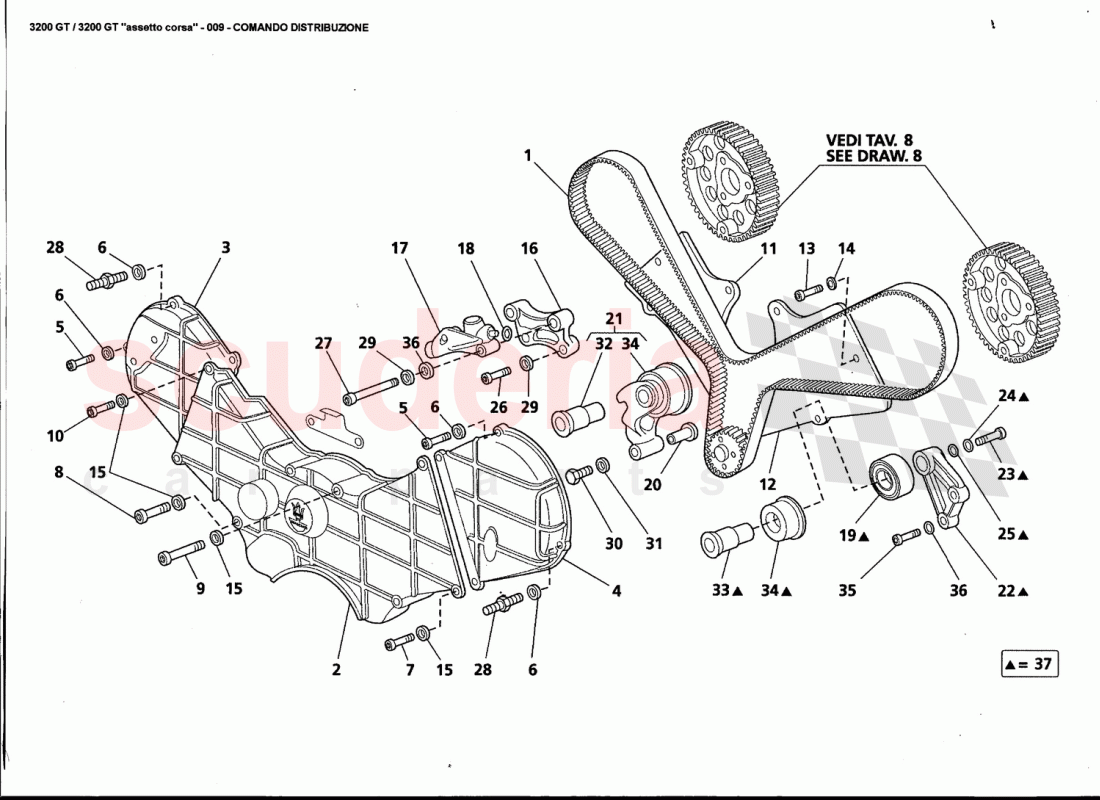

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	98025	TIMING BELT	$148.54	To Order

Photo	Part No	Description	Price (each)	Stock
	585038700	BELT FRONT CASING	$58.76	To Order

Photo	Part No	Description	Price (each)	Stock
	585007400	FRONT RH BELT CASING PLATE	$506.03	To Order

Photo	Part No	Description	Price (each)	Stock
	585007300	FRONT LH BELT CASING PLATE	$510.00	To Order

Photo	Part No	Description	Price (each)	Stock
	186196	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102210	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305821	SCREW M6 X 40	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14306021	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14304824	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREWM6X35	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	479034100	RH REAR SHLID	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	479034200	LH REAR SHILD	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	311620303	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	578038000	SUPPORT	$153.39	To Order

Photo	Part No	Description	Price (each)	Stock
	495034800	Tensioner	$346.33	To Order

Photo	Part No	Description	Price (each)	Stock
	578031100	SPACER TH. 1,5	$16.90	To Order
	578031200	SPACER TH. 2,5	$4.66	To Order
	578031300	SPACER TH. 3,5	$4.66	To Order

Photo	Part No	Description	Price (each)	Stock
	311020107	BEARING	$100.85	To Order

Photo	Part No	Description	Price (each)	Stock
	578037601	Bush	$22.26	To Order

Photo	Part No	Description	Price (each)	Stock
	585949600	TIGHTENING PULLEY	$626.31	To Order

Photo	Part No	Description	Price (each)	Stock
	479033800	SUPPORT	$147.79	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREWM8X50	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	12604470	RETAINING WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	452013301	FLAT WASHER	$62.13	To Order

Photo	Part No	Description	Price (each)	Stock
	311020320	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14359421	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	573003300	STUD BOLT	$65.38	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	98183	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	578037800	TIGHTENING PULLEY PIN	$51.71	To Order

Photo	Part No	Description	Price (each)	Stock
	321053343	TIGHTENING PULLEYPIN	$115.38	To Order

Photo	Part No	Description	Price (each)	Stock
	311020350	PULLEY	$45.23	To Order

Photo	Part No	Description	Price (each)	Stock
	585414500	SCREW	$79.45	To Order

Photo	Part No	Description	Price (each)	Stock
	312225445	FLAT WASHER	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	578948700	COMPLETE FIXED TIGHTENING	$297.37	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	98025	TIMING BELT	98025 TIMING BELT	$148.54	1
2	585038700	BELT FRONT CASING	585038700 BELT FRONT CASING	$58.76	1
3	585007400	FRONT RH BELT CASING PLATE	585007400 FRONT RH BELT CASING PLATE	$506.03	1
4	585007300	FRONT LH BELT CASING PLATE	585007300 FRONT LH BELT CASING PLATE	$510.00	1
5	186196	SCREW	186196 SCREW	-	3	Enquire
6	102210	WASHER	102210 WASHER	-	4	Enquire
7	14305821	SCREW M6 X 40	14305821 SCREW M6 X 40	$2.05	3
8	14306021	SCREW	14306021 SCREW	$2.39	1
9	14304824	SCREW	14304824 SCREW	$2.39	3
10	231622	SCREWM6X35	231622 SCREWM6X35	$1.27	1
11	479034100	RH REAR SHLID	479034100 RH REAR SHLID	$10.14	1
12	479034200	LH REAR SHILD	479034200 LH REAR SHILD	$10.14	1
13	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	6
14	311620303	WASHER	311620303 WASHER	$1.97	6
15	10519424	WASHER	10519424 WASHER	$1.55	8
16	578038000	SUPPORT	578038000 SUPPORT	$153.39	1
17	495034800	Tensioner	495034800 Tensioner	$346.33	1
18	578031100	SPACER TH. 1,5	578031100 SPACER TH. 1,5	$16.90	1
18	578031200	SPACER TH. 2,5	578031200 SPACER TH. 2,5	$4.66	1
18	578031300	SPACER TH. 3,5	578031300 SPACER TH. 3,5	$4.66	1
19	311020107	BEARING	311020107 BEARING	$100.85	2
20	578037601	Bush	578037601 Bush	$22.26	2
21	585949600	TIGHTENING PULLEY	585949600 TIGHTENING PULLEY	$626.31	1
22	479033800	SUPPORT	479033800 SUPPORT	$147.79	1
23	14306924	SCREWM8X50	14306924 SCREWM8X50	$2.83	1
24	12604470	RETAINING WASHER	12604470 RETAINING WASHER	$1.55	2
25	452013301	FLAT WASHER	452013301 FLAT WASHER	$62.13	1
26	311020320	SCREW	311020320 SCREW	$2.39	4
27	14359421	SCREW	14359421 SCREW	$2.83	1
28	573003300	STUD BOLT	573003300 STUD BOLT	$65.38	2
29	12604474	WASHER	12604474 WASHER	$1.55	5
30	98183	SCREW	98183 SCREW	$2.83	1
31	12647021	WASHER	12647021 WASHER As necessary	$2.00	-
32	578037800	TIGHTENING PULLEY PIN	578037800 TIGHTENING PULLEY PIN	$51.71	1
33	321053343	TIGHTENING PULLEYPIN	321053343 TIGHTENING PULLEYPIN	$115.38	1
34	311020350	PULLEY	311020350 PULLEY	$45.23	1
35	585414500	SCREW	585414500 SCREW	$79.45	2
36	312225445	FLAT WASHER	312225445 FLAT WASHER	$1.41	3
37	578948700	COMPLETE FIXED TIGHTENING	578948700 COMPLETE FIXED TIGHTENING	$297.37	1
