Name: PUMP AND VACUUM TANK - Valid for GS from Ass.Nr.4446 not for Ass.Nr.4491, 4499 and 4500- Valid for GD
Rating: 4.1 (1 reviews)

View All

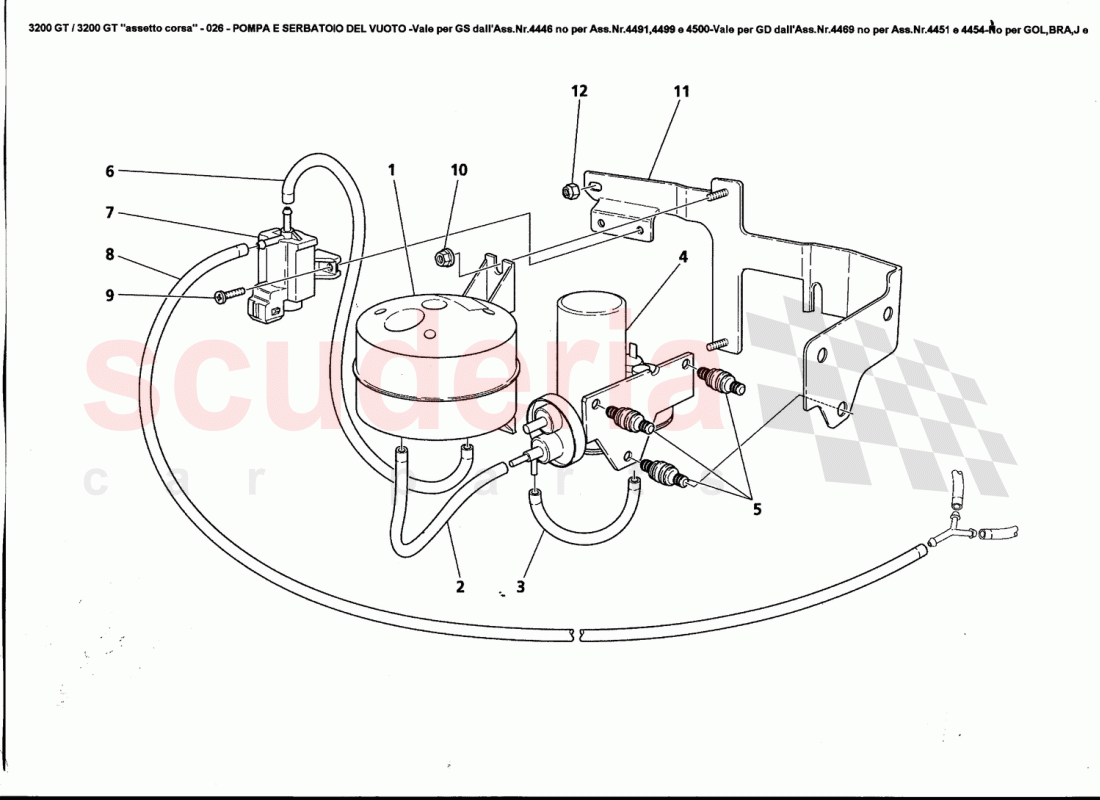

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	330328400	VACUUM TANK	$31.39	To Order

Photo	Part No	Description	Price (each)	Stock
	300100803	RUBBER HOSE	$99.75	To Order

Photo	Part No	Description	Price (each)	Stock
	300100803	RUBBER HOSE	$99.75	To Order

Photo	Part No	Description	Price (each)	Stock
	325520172	VACUUM PUMP	$342.11	To Order

Photo	Part No	Description	Price (each)	Stock
	325520345	PAD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	300100803	RUBBER HOSE	$99.75	To Order

Photo	Part No	Description	Price (each)	Stock
	315769	On/Off Solenoid Valve	$76.55	To Order

Photo	Part No	Description	Price (each)	Stock
	300100803	RUBBER HOSE	$99.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW TCEI M5 x 12	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	383700144	BRACKET FIXING VACUUM TANK	$43.38	To Order

Photo	Part No	Description	Price (each)	Stock
	14059214	Nut Flanged M6	$1.48	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	330328400	VACUUM TANK	330328400 VACUUM TANK	$31.39	1
2	300100803	RUBBER HOSE	300100803 RUBBER HOSE Supplied a meters / Quantity minimum 1 m. or multiples	$99.75	-
3	300100803	RUBBER HOSE	300100803 RUBBER HOSE Supplied a meters / Quantity minimum 1 m. or multiples	$99.75	-
4	325520172	VACUUM PUMP	325520172 VACUUM PUMP	$342.11	1
5	325520345	PAD	325520345 PAD	$1.97	3
6	300100803	RUBBER HOSE	300100803 RUBBER HOSE Supplied a meters / Quantity minimum 1 m. or multiples	$99.75	-
7	315769	On/Off Solenoid Valve	315769 On/Off Solenoid Valve	$76.55	1
8	300100803	RUBBER HOSE	300100803 RUBBER HOSE Supplied a meters / Quantity minimum 1 m. or multiples	$99.75	-
9	14304124	SCREW TCEI M5 x 12	14304124 SCREW TCEI M5 x 12	$1.97	2
10	14039614	NUT	14039614 NUT	$1.54	2
11	383700144	BRACKET FIXING VACUUM TANK	383700144 BRACKET FIXING VACUUM TANK	$43.38	1
12	14059214	Nut Flanged M6	14059214 Nut Flanged M6	$1.48	2
