Name: POLY-V BELT SYSTEM
Rating: 5.0 (1 reviews)

View All

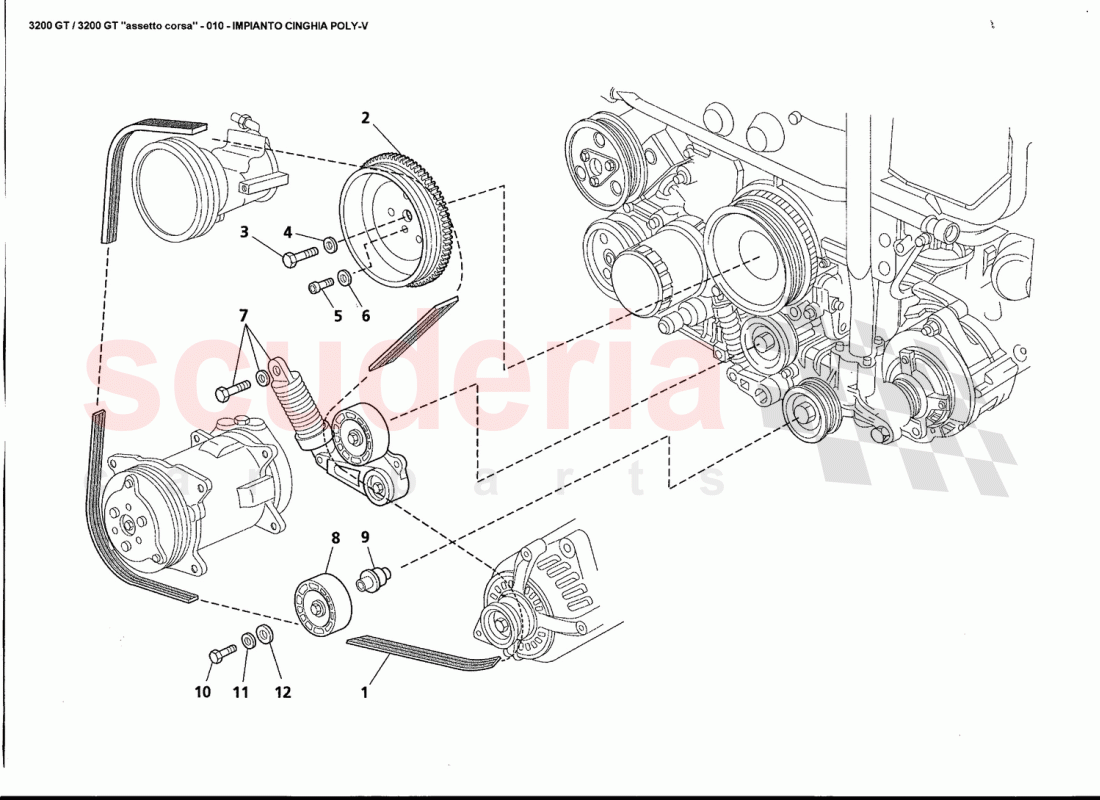

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	97965	POLY-V BELT	$39.62	To Order

Photo	Part No	Description	Price (each)	Stock
	585023700	CRANKSHAFT FRONT PULLEY	$238.23	To Order

Photo	Part No	Description	Price (each)	Stock
	11113021	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	470014600	WASHER	$6.49	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	578030400	TENSIONER	$396.12	To Order

Photo	Part No	Description	Price (each)	Stock
	578030500	FIXED TIGHTENING PULLEY	$43.38	To Order

Photo	Part No	Description	Price (each)	Stock
	97974	SUPPORT	$40.49	To Order

Photo	Part No	Description	Price (each)	Stock
	11343831	SCREW	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	134700105	RETAINING WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	98096	WASHER	$2.97	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	97965	POLY-V BELT	97965 POLY-V BELT	$39.62	1
2	585023700	CRANKSHAFT FRONT PULLEY	585023700 CRANKSHAFT FRONT PULLEY	$238.23	1
3	11113021	SCREW	11113021 SCREW	$2.83	1
4	470014600	WASHER	470014600 WASHER	$6.49	1
5	14432274	SCREW	14432274 SCREW Valid from Ass.Nr. 1845	$1.97	4
5	14432271	SCREW	14432271 SCREW Valid till Ass.Nr. 1844	$1.97	4
6	10519424	WASHER	10519424 WASHER	$1.55	4
7	578030400	TENSIONER	578030400 TENSIONER	$396.12	1
8	578030500	FIXED TIGHTENING PULLEY	578030500 FIXED TIGHTENING PULLEY	$43.38	1
9	97974	SUPPORT	97974 SUPPORT	$40.49	1
10	11343831	SCREW	11343831 SCREW	$3.40	1
11	134700105	RETAINING WASHER	134700105 RETAINING WASHER	$1.97	1
12	98096	WASHER	98096 WASHER	$2.97	1
