Maserati 3200 GT / Assetto Corsa - CYLINDER HEAD, RH FRAME

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
585000002 RH CYLINDER HEAD Enquire To Order
585000002 RH CYLINDER HEAD Enquire To Order
Photo Part No Description Price (each) Stock
475005401 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RN97853 FLAT WASHER Enquire To Order
Photo Part No Description Price (each) Stock
585007602 RH CYLINDER HEAD FRAME Enquire To Order
Photo Part No Description Price (each) Stock
479000700 FRONT COVER Enquire To Order
Photo Part No Description Price (each) Stock
475003000 CENTRING RING Enquire To Order
Photo Part No Description Price (each) Stock
479001400 HEAD REAR COVER RH Enquire To Order
Photo Part No Description Price (each) Stock
585008801 HEAD UPPER COVER RH Enquire To Order
Photo Part No Description Price (each) Stock
479008001 OIL VENT UNION Enquire To Order
Photo Part No Description Price (each) Stock
310620369 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
479001500 THREADED ROD Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
585002400 OIL ADJUSTMENT DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
GRN83302 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
BN96601 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
585410200 STUD Enquire To Order
Photo Part No Description Price (each) Stock
10393020 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
GRN96618 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
573003300 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14306424 SCREW M8 X 25 Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREWM8X50 Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 Enquire To Order
Photo Part No Description Price (each) Stock
14305920 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14496400 SPRING WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14306424 SCREW M8 X 25 Enquire To Order
Photo Part No Description Price (each) Stock
311053307 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14305620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
479005800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
311820308 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
585002400 OIL ADJUSTMENT DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
585005500 FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
172303 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14058429 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11500224 STUD Enquire To Order
View All

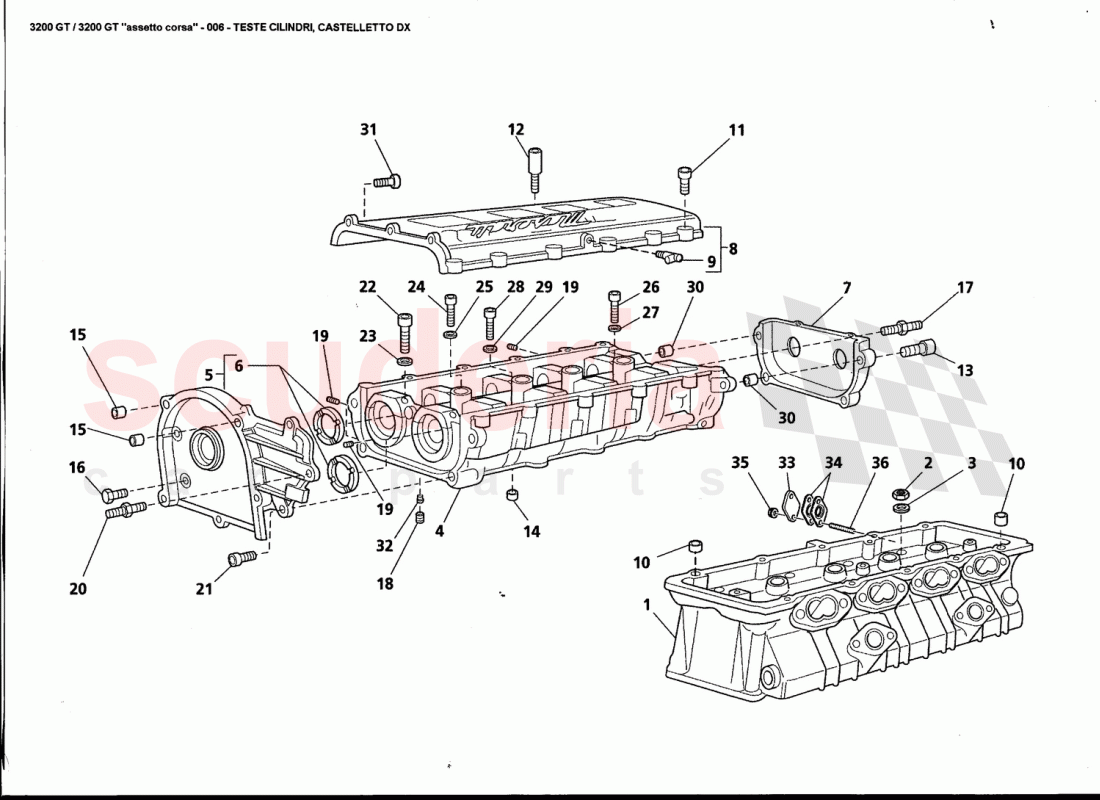

CYLINDER HEAD, RH FRAME of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 585000002
RH CYLINDER HEAD
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 / Not for BRA,GOL,J and AUS 		- 1 Enquire
1 585000002
RH CYLINDER HEAD
Valid till stock exhaustion / Valid for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 		- 1 Enquire
2 475005401
NUT 		- 10 Enquire
3 RN97853
FLAT WASHER 		- 10 Enquire
4 585007602
RH CYLINDER HEAD FRAME 		- 1 Enquire
5 479000700
FRONT COVER 		- 1 Enquire
6 475003000
CENTRING RING 		- 2 Enquire
7 479001400
HEAD REAR COVER RH 		- 1 Enquire
8 585008801
HEAD UPPER COVER RH 		- 1 Enquire
9 479008001
OIL VENT UNION 		- 1 Enquire
10 310620369
DOWEL 		- 2 Enquire
11 231617
SCREW M6 X 18 		- 10 Enquire
12 479001500
THREADED ROD 		- 4 Enquire
13 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		- 3 Enquire
14 585002400
OIL ADJUSTMENT DOWEL 		- 1 Enquire
15 GRN83302
DOWEL 		- 2 Enquire
16 BN96601
SCREW 		- 2 Enquire
17 585410200
STUD 		- 1 Enquire
18 10393020
PLUG 		- 2 Enquire
19 GRN96618
DOWEL 		- 4 Enquire
20 573003300
STUD BOLT 		- 1 Enquire
21 14306424
SCREW M8 X 25 		- 1 Enquire
22 14306924
SCREWM8X50 		- 10 Enquire
23 12601374
WASHERD. 8,40-15X 0,8 		- 10 Enquire
24 14305920
SCREW 		- 3 Enquire
25 14496400
SPRING WASHER 		- 3 Enquire
26 14306424
SCREW M8 X 25 		- 8 Enquire
27 311053307
WASHER 		- 8 Enquire
28 14305620
SCREW 		- 16 Enquire
29 479005800
WASHER 		- 16 Enquire
30 311820308
DOWEL 		- 2 Enquire
31 231617
SCREW M6 X 18 		- 3 Enquire
32 585002400
OIL ADJUSTMENT DOWEL 		- 2 Enquire
33 585005500
FLANGE
Valid for BRA.J.GOL and AUS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 		- 1 Enquire
34 172303
GASKET
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		- 2 Enquire
35 14058429
NUT
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		- 2 Enquire
36 11500224
STUD
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		- 2 Enquire
