Name: INTEKE MANIFOLD AND INJECTION SYSTEM
Rating: 4.5 (1 reviews)

INTEKE MANIFOLD AND INJECTION SYSTEM of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - INTEKE MANIFOLD AND INJECTION SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	585002501	INTAKE MANIFOLD	$985.54	To Order

Photo	Part No	Description	Price (each)	Stock

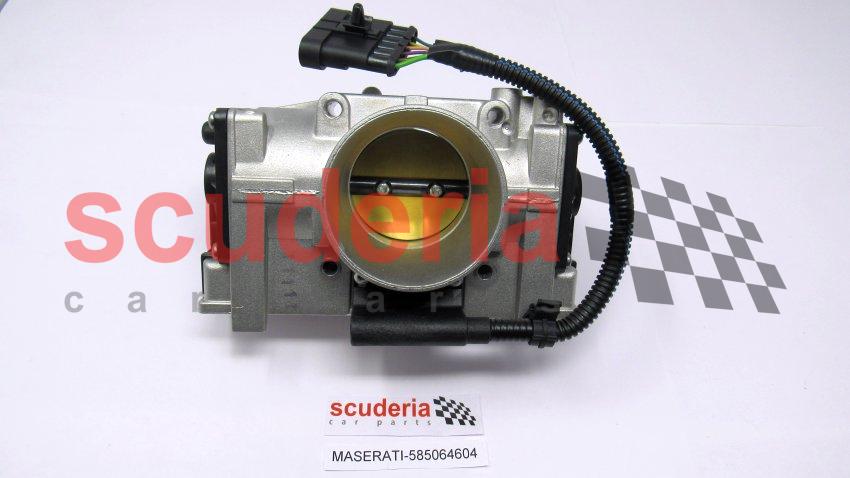

	585064604	THROTTLE BODY DRIVE BY WIRE	$2,266.09	To Order

Photo	Part No	Description	Price (each)	Stock
	585063500	THROTTLE BODY COVER	$67.97	To Order

Photo	Part No	Description	Price (each)	Stock
	108006080	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock

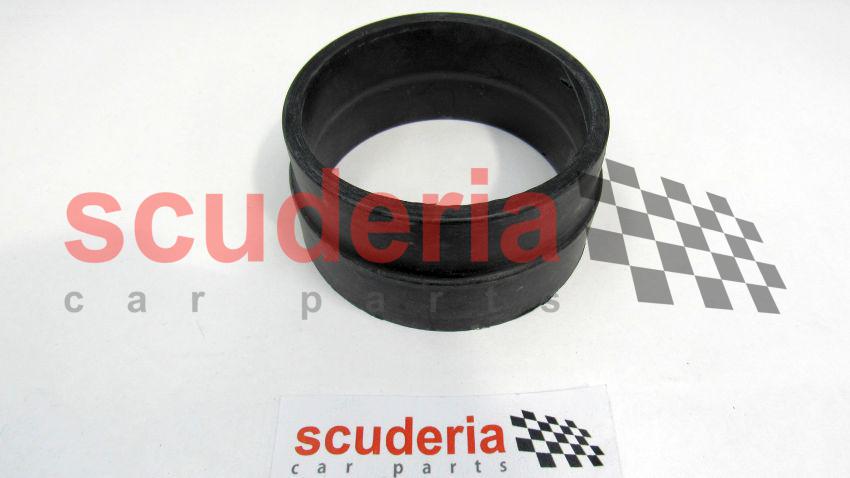

	585065100	SLEEVE	$113.08	To Order

Photo	Part No	Description	Price (each)	Stock
	98100	CLAMP	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	585063020	INJECTOR	$136.30	To Order
	585063000	INJECTOR	$306.09	To Order

Photo	Part No	Description	Price (each)	Stock
	470063400	INJECTOR RETAINING SPRING	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	300100803	RUBBER HOSE	$99.75	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	585412100	UNION	$3.98	To Order

Photo	Part No	Description	Price (each)	Stock
	585060300	AIR DEFLECTOR ON THROTTLE BODY	$116.78	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	585073620	PETROL PRESSURE REGULATOR	$71.50	To Order
	585073600	PETROL PRESSURE REGULATOR	$161.03	To Order

Photo	Part No	Description	Price (each)	Stock
	585060002	RH PETROL PIPES	$413.09	To Order

Photo	Part No	Description	Price (each)	Stock
	585060102	LH PETROL PIPES	$344.31	To Order

Photo	Part No	Description	Price (each)	Stock
	TN97414	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GN97084	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	495062900	PETROL BREATHER VALVE	$7.81	To Order

Photo	Part No	Description	Price (each)	Stock
	470079700	AIR TEMPERATURE VALVE	$121.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW M8 X 25	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	389200134	RIGID PIPE	$103.99	To Order

Photo	Part No	Description	Price (each)	Stock
	379200408	CLIP	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585064201	PETROL DELIVERY PIPE	$375.89	To Order
	585064200	PETROL DELIVERY PIPE	$375.89	To Order

Photo	Part No	Description	Price (each)	Stock
	585065201	PETROL RETURN PIPE	$510.82	To Order
	585065201	PETROL RETURN PIPE	$510.82	To Order

Photo	Part No	Description	Price (each)	Stock
	585002601	THROTTLE BODY COVER	$85.63	To Order

Photo	Part No	Description	Price (each)	Stock
	585411201	GASKET	$66.78	To Order

Photo	Part No	Description	Price (each)	Stock
	312053322	SCREW	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	585063600	THROTTLE BODY GASKET	$50.00	To Order

Photo	Part No	Description	Price (each)	Stock
	585008902	UNION	$20.61	To Order

View All

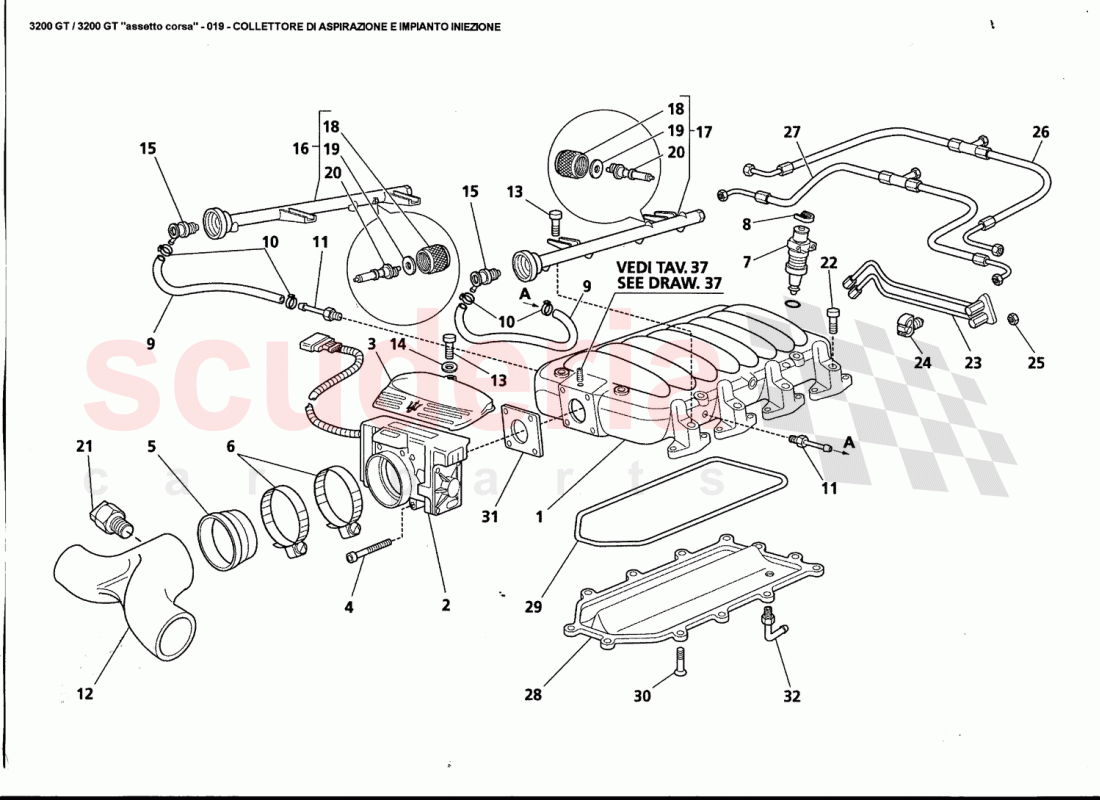

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	585002501	INTAKE MANIFOLD	585002501 INTAKE MANIFOLD	$985.54	1
2	585064604	THROTTLE BODY DRIVE BY WIRE	585064604 THROTTLE BODY DRIVE BY WIRE	$2,266.09	1
3	585063500	THROTTLE BODY COVER	585063500 THROTTLE BODY COVER	$67.97	1
4	108006080	SCREW	108006080 SCREW	$2.39	4
5	585065100	SLEEVE	585065100 SLEEVE	$113.08	1
6	98100	CLAMP	98100 CLAMP	$6.62	1
7	585063020	INJECTOR	585063020 INJECTOR Only for BRA	$136.30	8
7	585063000	INJECTOR	585063000 INJECTOR Not for BRA	$306.09	8
8	470063400	INJECTOR RETAINING SPRING	470063400 INJECTOR RETAINING SPRING	$3.95	8
9	300100803	RUBBER HOSE	300100803 RUBBER HOSE	$99.75	2
10	262109	COLLAR	262109 COLLAR	$2.69	4
11	585412100	UNION	585412100 UNION	$3.98	3
12	585060300	AIR DEFLECTOR ON THROTTLE BODY	585060300 AIR DEFLECTOR ON THROTTLE BODY	$116.78	1
13	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	6
14	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	$2.41	6
15	585073620	PETROL PRESSURE REGULATOR	585073620 PETROL PRESSURE REGULATOR Only for BRA	$71.50	2
15	585073600	PETROL PRESSURE REGULATOR	585073600 PETROL PRESSURE REGULATOR Not for BRA	$161.03	2
16	585060002	RH PETROL PIPES	585060002 RH PETROL PIPES	$413.09	1
17	585060102	LH PETROL PIPES	585060102 LH PETROL PIPES	$344.31	1
18	TN97414	PLUG	TN97414 PLUG	-	2	Enquire
19	GN97084	GASKET	GN97084 GASKET	-	2	Enquire
20	495062900	PETROL BREATHER VALVE	495062900 PETROL BREATHER VALVE	$7.81	2
21	470079700	AIR TEMPERATURE VALVE	470079700 AIR TEMPERATURE VALVE	$121.11	1
22	14306424	SCREW M8 X 25	14306424 SCREW M8 X 25	$2.49	16
23	389200134	RIGID PIPE	389200134 RIGID PIPE	$103.99	1
24	379200408	CLIP	379200408 CLIP	$1.97	11
25	14054577	NUT	14054577 NUT	-	1	Enquire
26	585064201	PETROL DELIVERY PIPE	585064201 PETROL DELIVERY PIPE Not for BRA	$375.89	1
26	585064200	PETROL DELIVERY PIPE	585064200 PETROL DELIVERY PIPE Only for BRA	$375.89	1
27	585065201	PETROL RETURN PIPE	585065201 PETROL RETURN PIPE Only for BRA	$510.82	1
27	585065201	PETROL RETURN PIPE	585065201 PETROL RETURN PIPE Not for BRA	$510.82	1
28	585002601	THROTTLE BODY COVER	585002601 THROTTLE BODY COVER	$85.63	1
29	585411201	GASKET	585411201 GASKET	$66.78	1
30	312053322	SCREW	312053322 SCREW	$6.62	12
31	585063600	THROTTLE BODY GASKET	585063600 THROTTLE BODY GASKET	$50.00	1
32	585008902	UNION	585008902 UNION	$20.61	1
