OIL PUMP AND WATER PUMP of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - OIL PUMP AND WATER PUMP

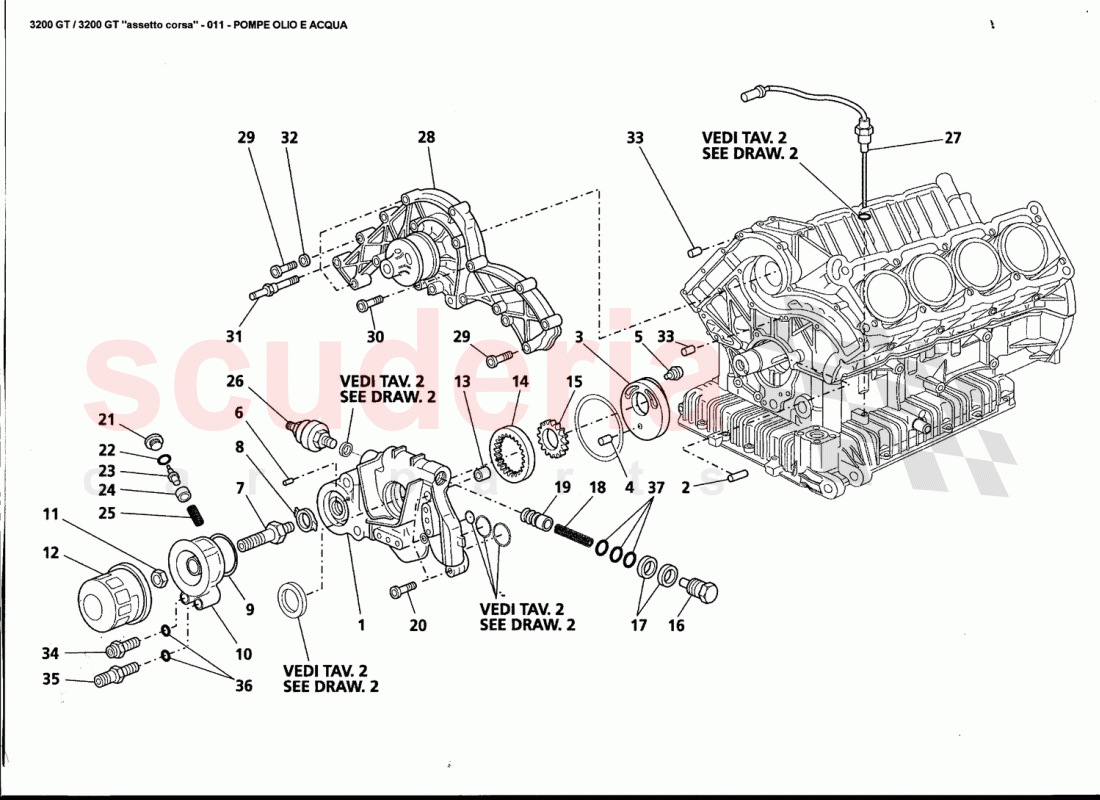

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	479040102	OIL CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	571982101	OIL PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	501047800	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314020329	CENTRING ROLLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585041300	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	97730	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14464981	RUBBER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585041200	THERMOSTATIC VALVE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	97732	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	479040900	Oil Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311820309	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	479040500	OIL PUMP DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	479040400	OIL PUMP DRIVING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	452045001	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311820317	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	571044400	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	571044500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	571044100	THERMOSTAT BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	571044200	THERMOSTAT BULB VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	571044600	THERMOSTAT VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183452	OIL PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	479043400	OIL LEVEL TRANSMITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	578045900	WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREWM6X35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	479045100	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GN97042	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314020329	CENTRING ROLLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	372830306	NIPPLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	578045300	NIPPLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GN97762	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	479040102	OIL CONTROL UNIT	479040102 OIL CONTROL UNIT	-	1	Enquire
2	RUL97054	ROLLER	RUL97054 ROLLER	-	1	Enquire
3	571982101	OIL PUMP COVER	571982101 OIL PUMP COVER	-	1	Enquire
4	311820315	CENTRING ROLLER	311820315 CENTRING ROLLER	-	1	Enquire
5	501047800	PIN	501047800 PIN	-	1	Enquire
6	314020329	CENTRING ROLLER	314020329 CENTRING ROLLER	-	1	Enquire
7	585041300	PIN	585041300 PIN	-	1	Enquire
8	97730	WASHER	97730 WASHER	-	1	Enquire
9	14464981	RUBBER GASKET	14464981 RUBBER GASKET	-	1	Enquire
10	585041200	THERMOSTATIC VALVE BODY	585041200 THERMOSTATIC VALVE BODY	-	1	Enquire
11	97732	NUT	97732 NUT	-	1	Enquire
12	479040900	Oil Filter	479040900 Oil Filter	-	1	Enquire
13	311820309	Dowel	311820309 Dowel	-	2	Enquire
14	479040500	OIL PUMP DRIVEN GEAR	479040500 OIL PUMP DRIVEN GEAR	-	1	Enquire
15	479040400	OIL PUMP DRIVING GEAR	479040400 OIL PUMP DRIVING GEAR	-	1	Enquire
16	452045001	PLUG	452045001 PLUG	-	1	Enquire
17	311820317	GASKET	311820317 GASKET	-	2	Enquire
18	452048601	OIL PRESSURE VALVE SPRING	452048601 OIL PRESSURE VALVE SPRING	-	1	Enquire
19	311820319	OIL PRESSURE ADJUSTMENT VALVE	311820319 OIL PRESSURE ADJUSTMENT VALVE	-	1	Enquire
20	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	9	Enquire
21	571044400	PLUG	571044400 PLUG	-	1	Enquire
22	571044500	GASKET	571044500 GASKET	-	1	Enquire
23	571044100	THERMOSTAT BULB	571044100 THERMOSTAT BULB	-	1	Enquire
24	571044200	THERMOSTAT BULB VALVE	571044200 THERMOSTAT BULB VALVE	-	1	Enquire
25	571044600	THERMOSTAT VALVE SPRING	571044600 THERMOSTAT VALVE SPRING	-	1	Enquire
26	183452	OIL PRESSURE SENSOR	183452 OIL PRESSURE SENSOR	-	1	Enquire
27	479043400	OIL LEVEL TRANSMITTER	479043400 OIL LEVEL TRANSMITTER	-	1	Enquire
28	578045900	WATER PUMP	578045900 WATER PUMP	-	1	Enquire
29	231622	SCREWM6X35	231622 SCREWM6X35	-	11	Enquire
30	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	14305521 ALLEN SCREW SOCKET HEAD M6 X 30	-	1	Enquire
31	479045100	STUD BOLT	479045100 STUD BOLT	-	3	Enquire
32	GN97042	GASKET	GN97042 GASKET	-	1	Enquire
33	314020329	CENTRING ROLLER	314020329 CENTRING ROLLER	-	2	Enquire
34	372830306	NIPPLE	372830306 NIPPLE	-	1	Enquire
35	578045300	NIPPLE	578045300 NIPPLE	-	1	Enquire
36	GN97762	GASKET	GN97762 GASKET	-	2	Enquire
37	311053307	WASHER	311053307 WASHER	-	3	Enquire
