CRANKSHAFT, PISTONS, CONNECTING RODS AND FLYWHEEL

Find Your Part

Maserati 3200 GT / Assetto Corsa - CRANKSHAFT, PISTONS, CONNECTING RODS AND FLYWHEEL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
585020001 CRANKSHAFT $8,845.87 To Order
585020001 CRANKSHAFT $8,845.87 To Order
Photo Part No Description Price (each) Stock
479021802 LOWER SHIM HALF-RING $70.15 To Order
479021702 LOWER SHIM HALF-RING $13.13 To Order
479021900 LOWER SHIM WASHER $65.94 To Order
Photo Part No Description Price (each) Stock
479021402 SHIM HALF-RING $67.89 To Order
479021302 SHIM HALF-RING $13.13 To Order
479021500 UPPER SHIM WASHER $29.73 To Order
Photo Part No Description Price (each) Stock
311453303 DOWEL $17.61 To Order
Photo Part No Description Price (each) Stock
178003015 BEARING $26.81 To Order
Photo Part No Description Price (each) Stock
310820302 RETAINING RING $1.97 To Order
Photo Part No Description Price (each) Stock
310820301 DOWEL $5.22 To Order
Photo Part No Description Price (each) Stock
585022800 ENGINE FLYWHEEL ASSY $1,764.52 To Order
Photo Part No Description Price (each) Stock
15973930 BOLT $7.61 To Order
Photo Part No Description Price (each) Stock
585023300 CONNECTING ROD AND CAP $303.17 To Order
Photo Part No Description Price (each) Stock
374631303 FLANGE $4.22 To Order
Photo Part No Description Price (each) Stock
374631334 DAMPER PART $12.86 To Order
Photo Part No Description Price (each) Stock
470023100 DOWEL $2.83 To Order
Photo Part No Description Price (each) Stock
391250310 RETAINING RING $5.90 To Order
Photo Part No Description Price (each) Stock
585025301 PISTON ASSY $844.59 To Order
585025300 PISTON ASSY $903.79 To Order
Photo Part No Description Price (each) Stock
479022603 OIL SCRAPER $179.20 To Order
Photo Part No Description Price (each) Stock
479022502 LOWER PISTON RING $180.75 To Order
Photo Part No Description Price (each) Stock
479022402 UPPER PISTON RING $85.66 To Order
Photo Part No Description Price (each) Stock
479020900 CONNECTING ROD BUSHING $28.63 To Order
Photo Part No Description Price (each) Stock
479020201 MAIN BEARING STANDARD $46.64 To Order
Photo Part No Description Price (each) Stock
14328300 PLUG $2.83 To Order
Photo Part No Description Price (each) Stock
96811 BOLT $3.53 To Order
11363030 BOLT $3.53 To Order
Photo Part No Description Price (each) Stock
578100200 CONVERTER DRIVING DISK $282.17 To Order
Photo Part No Description Price (each) Stock
578100600 CONVERTER CENTRING FLANGE $600.68 To Order
Photo Part No Description Price (each) Stock
574100500 CROWN GEAR $569.59 To Order
Photo Part No Description Price (each) Stock
374631302 PIN $9.30 To Order
Photo Part No Description Price (each) Stock
479024901 CRANKSHAFT FRONT PULLEY $102.00 To Order
View All

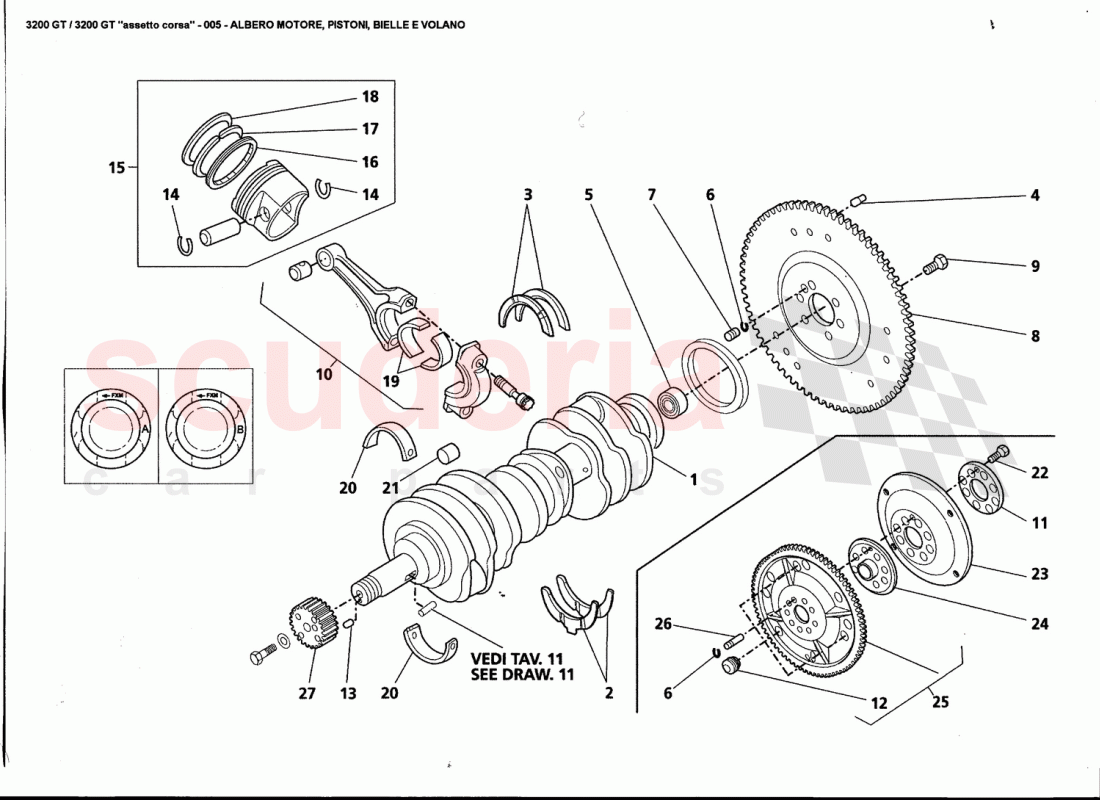

CRANKSHAFT, PISTONS, CONNECTING RODS AND FLYWHEEL of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 585020001
CRANKSHAFT
Valid for Automatic Trasmission 		$8,845.87 1
1 585020001
CRANKSHAFT
Valid for Manual Trasmission 		$8,845.87 1
2 479021802
LOWER SHIM HALF-RING
Class B 		$70.15 1
2 479021702
LOWER SHIM HALF-RING
Class A 		$13.13 2
2 479021900
LOWER SHIM WASHER
Class C 		$65.94 2
3 479021402
SHIM HALF-RING
Class B 		$67.89 1
3 479021302
SHIM HALF-RING
Class A 		$13.13 2
3 479021500
UPPER SHIM WASHER
Class C 		$29.73 2
4 311453303
DOWEL
Valid for Manual Trasmission 		$17.61 3
5 178003015
BEARING
Valid for Manual Trasmission 		$26.81 1
6 310820302
RETAINING RING 		$1.97 1
7 310820301
DOWEL
Valid for Manual Trasmission 		$5.22 1
8 585022800
ENGINE FLYWHEEL ASSY
Valid for Manual Trasmission 		$1,764.52 1
9 15973930
BOLT 		$7.61 8
10 585023300
CONNECTING ROD AND CAP
In the order, specify the colour of the sticker 		$303.17 8
11 374631303
FLANGE
Valid for Automatic Trasmission 		$4.22 1
12 374631334
DAMPER PART
Valid for Automatic Trasmission 		$12.86 3
13 470023100
DOWEL 		$2.83 1
14 391250310
RETAINING RING 		$5.90 16
15 585025301
PISTON ASSY
Class B / In the order, specify class A or B 		$844.59 8
15 585025300
PISTON ASSY
Class A / In the order, specify class A or B 		$903.79 8
16 479022603
OIL SCRAPER 		$179.20 8
17 479022502
LOWER PISTON RING 		$180.75 8
18 479022402
UPPER PISTON RING 		$85.66 8
19 479020900
CONNECTING ROD BUSHING 		$28.63 16
20 479020201
MAIN BEARING STANDARD 		$46.64 10
21 14328300
PLUG 		$2.83 8
22 96811
BOLT
Valid for Automatic Trasmission / Valid from engine Nr.565 		$3.53 8
22 11363030
BOLT
Valid for Automatic Trasmission / Valid till engine Nr.564 		$3.53 8
23 578100200
CONVERTER DRIVING DISK
Valid for Automatic Trasmission 		$282.17 1
24 578100600
CONVERTER CENTRING FLANGE
Valid for Automatic Trasmission 		$600.68 1
25 574100500
CROWN GEAR
Valid for Automatic Trasmission 		$569.59 1
26 374631302
PIN
Valid for Automatic Trasmission 		$9.30 1
27 479024901
CRANKSHAFT FRONT PULLEY 		$102.00 1
