Engine Hood (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

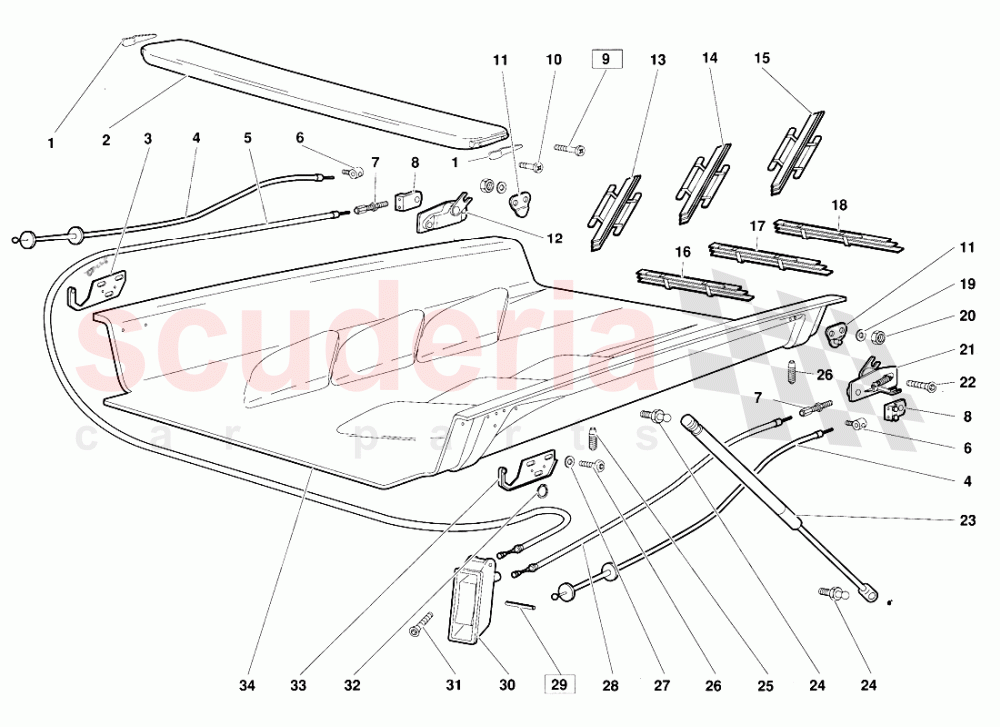

Lamborghini Diablo (1990-1998) - Engine Hood (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9460100	GASKET	9460100 GASKET (Valid for June 1992 version) GUARNIZIONE	-	2	Enquire
002	9460101	REAR WING	9460101 REAR WING (Valid for June 1992 version) ALETTA	-	1	Enquire
003	9460319	RIGHT HINGE	9460319 RIGHT HINGE (Valid for June 1992 version) CERNIERA DESTRA	-	1	Enquire
004	9460003	CABLE	9460003 CABLE (Valid for June 1992 version) CAVO APERTURA Dl EMERGENZA	-	2	Enquire
005	9460006	RIGHT CABLE	9460006 RIGHT CABLE (Valid for June 1992 version) CAVO DESTRO APERTURA COFANO	-	1	Enquire
006	9460210	CLAMP	9460210 CLAMP (Valid for June 1992 version) MORSETTO	-	2	Enquire
007	9460213	ADJ/SCREW	9460213 ADJ/SCREW (Valid for June 1992 version) TESTA REGISTRO	-	2	Enquire
008	9460212	DOUBLE CLAMP	9460212 DOUBLE CLAMP use 410814333	-	2	Enquire
009	8700549	SCREW	8700549 SCREW (Valid for June 1992 version) VITE (sostituisce il 008700546)	-	2	Enquire
010	8700547	SCREW	8700547 SCREW (Valid for June 1992 version) VITE	-	2	Enquire
011	9460201	LOCK STRIKER	9460201 LOCK STRIKER (Valid for June 1992 version) PIASTRINA Dl AGGANCIO	-	2	Enquire
012	9460200	RIGHT LOCK	9460200 RIGHT LOCK (Valid for June 1992 version) SERRATURA DESTRA	-	1	Enquire
013	9460400	GRILLE	9460400 GRILLE (Valid for June 1992 version) GRIGLIA	-	1	Enquire
014	9460402	GRILLE	9460402 GRILLE (Valid for June 1992 version) GRIGLIA	-	1	Enquire
015	9460404	GRILLE	9460404 GRILLE (Valid for June 1992 version) GRIGLIA	-	1	Enquire
016	9460401	GRILLE	9460401 GRILLE (Valid for June 1992 version) GRIGLIA	-	1	Enquire
017	9460403	GRILLE	9460403 GRILLE (Valid for June 1992 version) GRIGLIA	-	1	Enquire
018	9460405	GRILLE	9460405 GRILLE (Valid for June 1992 version) GRIGLIA	-	1	Enquire
019	8400601	WASHER	8400601 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
020	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO	-	4	Enquire
021	9460202	LEFT LOCK	9460202 LEFT LOCK (Valid for June 1992 version) SERRATURA SINISTRA	-	1	Enquire
022	8700613	SCREW	8700613 SCREW (Valid for June 1992 version) VITE	-	4	Enquire
023	92004388	ENGINE COVER STRUT	92004388 ENGINE COVER STRUT (Valid for June 1992 version) AMMORTIZZATORE A GAS	-	2	Enquire
024	9459305	BALL PIN	9459305 BALL PIN (Valid for June 1992 version) PERNO	-	4	Enquire
025	9460214	RUBBER BUMPER	9460214 RUBBER BUMPER (Valid for June 1992 version) TAMPONE COMMA	-	4	Enquire
026	8740685	SCREW	8740685 SCREW (Valid for June 1992 version) VITE	-	6	Enquire
027	N91115501	WASHER	N91115501 WASHER (Valid for June 1992 version) RONDELLA	-	6	Enquire
028	9460007	LEFT CABLE	9460007 LEFT CABLE (Valid for June 1992 version) CAVO SINISTRO APERTURA COFANO	-	1	Enquire
029	8900304	PIN - (Valid for June 1992 version) SPINA (sostituisce il 008900305)	8900304 PIN - (Valid for June 1992 version) SPINA (sostituisce il 008900305) (Valid for June 1992 version) SA (sostituisce il 008900305)	-	1	Enquire
030	410823537	DOOR OPENING INTERIOR HANDLE ASSEMBLY	410823537 DOOR OPENING INTERIOR HANDLE ASSEMBLY	-	1	Enquire
031	8700539	SCREW	8700539 SCREW (Valid for June 1992 version) VITE	-	1	Enquire
032	8580802	RETAINER RING	8580802 RETAINER RING (Valid for June 1992 version) ANELLO RITEGNO	-	2	Enquire
033	9460320	LEFT HINGE	9460320 LEFT HINGE (Valid for June 1992 version) CERNIERA SINISTRA	-	1	Enquire
034	9460000	ENGINE BONNET	9460000 ENGINE BONNET (Valid for June 1992 version) COFANO MOTORE	-	1	Enquire
