Rear Hood and Wing (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Rear Hood and Wing (Valid for June 1992 Version)

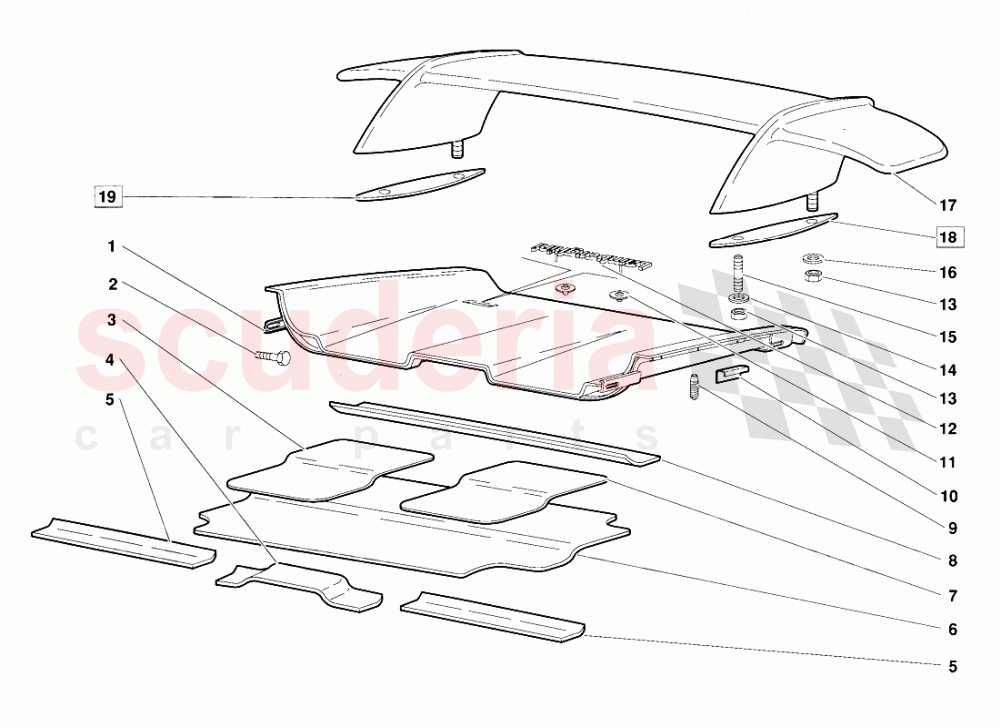

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9429001	REAR BONNET	9429001 REAR BONNET (Valid for June 1992 version) COFANO POSTERIORE	-	1	Enquire
002	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT (Valid for June 1992 version) VITE	$0.95	2
003	9455242	RIGHT LINING	9455242 RIGHT LINING (Valid for June 1992 version) ISOLANTE	$82.80	1
004	9429108	CHANNEL	9429108 CHANNEL (Valid for June 1992 version) PROFILATO	$83.50 MSRP: ~~87.30~~ (4.4% off)	1
005	9429109	CHANNEL	9429109 CHANNEL (Valid for June 1992 version) PROFILATO	$59.56 MSRP: ~~62.30~~ (4.4% off)	2
006	9455244	LINING	9455244 LINING (Valid for June 1992 version) ISOLANTE	$675.98	1
007	9455243	LEFT LINING	9455243 LEFT LINING (Valid for June 1992 version) ISOLANTE	$82.80	1
008	9429111	CHANNEL	9429111 CHANNEL (Valid for June 1992 version) PROFILATO	$29.91	1
009	9460214	RUBBER BUMPER IN STOCK	9460214 RUBBER BUMPER (Valid for June 1992 version) TAMPONE GOMMA IN STOCK	$8.69	6
010	9429112	CHANNEL	9429112 CHANNEL (Valid for June 1992 version) PIASTRA	$52.16 MSRP: ~~54.60~~ (4.5% off)	2
011	6128567	CLIP	6128567 CLIP (Valid for June 1992 version) MOLLETTA	$1.22	2
012	6128566	ORNAMENT	6128566 ORNAMENT (Valid for June 1992 version) FREGIO LAMBORGHINI	$182.37 MSRP: ~~189.50~~ (3.8% off)	1
013	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO	$1.96 MSRP: ~~7.29~~ (73.1% off)	4
014	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.28	2
015	8300663	STUD	8300663 STUD (Valid for June 1992 version) PRIGIONIERO	$25.00 MSRP: ~~26.10~~ (4.2% off)	2
016	8410609	WASHER	8410609 WASHER (Valid for June 1992 version) RONDELLA	$2.05	2
017	9490000	PAINTED REAR WING	9490000 PAINTED REAR WING (Valid for June 1992 version) ALETTONE (OPTIONAL)	$7,127.76 MSRP: ~~7,450.00~~ (4.3% off)	1
018	9490006	LEFT GASKET	9490006 LEFT GASKET (Valid for June 1992 version) GUARNIZIONE SINISTRA	$168.74	1
019	9490005	RIGHT GASKET	9490005 RIGHT GASKET (Valid for June 1992 version) GUARNIZIONE DESTRA	$168.74	1
