Doors (Valid For June 1992 Version)

Lamborghini Diablo (1990-1998)

Find Your Part

Lamborghini Diablo (1990-1998) - Doors (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

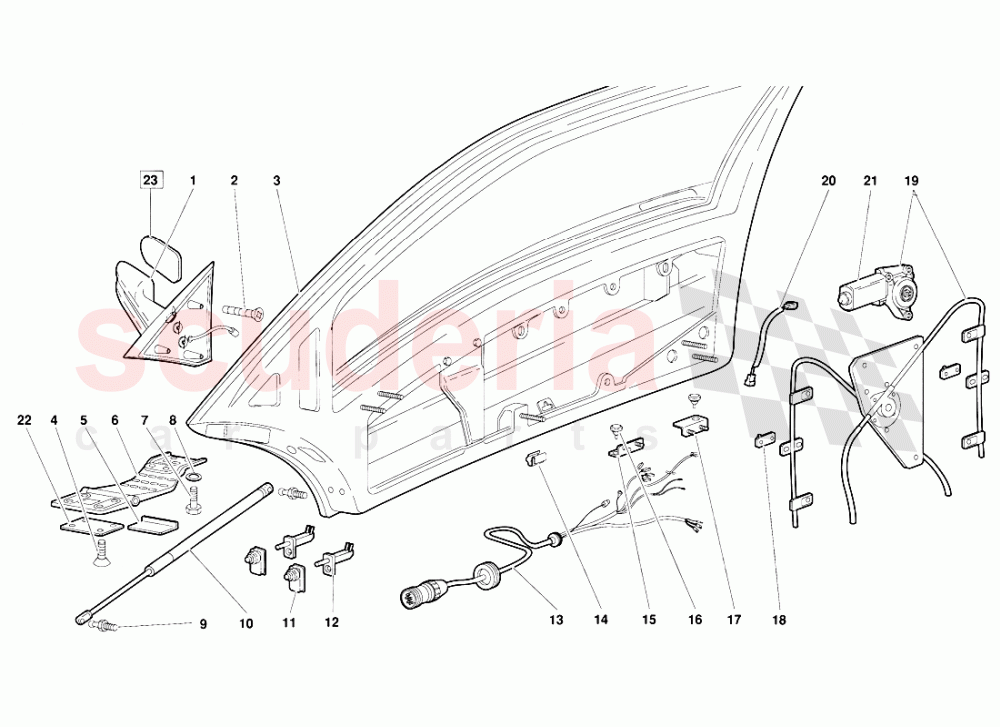

Doors (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9490401
LEFT REAR VIEW MIR.
(Valid for June 1992 version) RETROVISORE SINISTRO COMPLETO 		- 1 Enquire
001 9490400
RIGHT REAR VIEW MIR.
(Valid for June 1992 version) RETROVISORE DESTRO COMPLETO 		- 1 Enquire
002 8700329
SCREW
(Valid for June 1992 version) VITE 		- 6 Enquire
003 9421006
RIGHT DOOR
(Valid for June 1992 version) PORTA DESTRA 		- 1 Enquire
003 9421007
LEFT DOOR
(Valid for June 1992 version) PORTA SINISTRA 		- 1 Enquire
004 8700849
SCREW
(Valid for June 1992 version) VITE 		- 8 Enquire
005 9421616
GLASS LIFTING KNOB
(Valid for June 1992 version) PROFILATO 		- 2 Enquire
006 410831401
LH HINGE
(Valid for June 1992 version) CERNIERA SINISTRA 		- 1 Enquire
006 9421359
RIGHT HINGE
(Valid for June 1992 version) CERNIERA DESTRA 		- 1 Enquire
007 8101008
SCREW
(Valid for June 1992 version) VITE 		- 8 Enquire
008 8411005
WASHER
(Valid for June 1992 version) RONDELLA 		- 8 Enquire
009 9459305
BALL PIN
(Valid for June 1992 version) PERNO 		- 4 Enquire
010 9421031
DOOR STRUT
(Valid for June 1992 version) MARTINETTO 		- 2 Enquire
011 893947565A
BOOT 		- 4 Enquire
012 5931743
SWITCH
(Valid for June 1992 version) INTERRUTTORE 		- 4 Enquire
013 6130205
CABLE HARNESS
(Valid for June 1992 version) CABLAGGIO PORTA SINISTRA 		- 1 Enquire
013 6130204
CABLE HARNESS
(Valid for June 1992 version) CABLAGGIO PORTA DESTRA 		- 1 Enquire
014 8830302
CLAMP
(Valid for June 1992 version) FERMAGLIO 		- 10 Enquire
015 9421407
LEFT DOOR PLATE
(Valid for June 1992 version) PIASTRINA FINE CORSA CRISTALLO 		- 2 Enquire
016 9421408
RUBBER BUMPER
(Valid for June 1992 version) PARACOLPI COMMA 		- 4 Enquire
017 9421406
RIGHT DOOR PLATE
(Valid for June 1992 version) PIASTRINA FINE CORSA CRISTALLO 		- 2 Enquire
018 9421608
BRACKET
(Valid for June 1992 version) PIASTRINA ALZACRISTALLO 		- 4 Enquire
019 9421600
RIGHT KIT WIND. REGUL
(Valid for June 1992 version) KIT ALZACRISTALLO DESTRO 		- 1 Enquire
019 9421601
LEFT KIT WINDOW REGUL.
(Valid for June 1992 version) KIT ALZACRISTALLO SINISTRO 		- 1 Enquire
020 9421606
ELECT CABLE
(Valid for June 1992 version) CAVI MOTORING ALZACRISTALLO 		- 2 Enquire
021 9421605
LEFT ELECT MOTOR
(Valid for June 1992 version) MOTORING ELETTRICO PER PORTA SX 		- 1 Enquire
021 9421604
RIGHT ELECT MOTOR
(Valid for June 1992 version) MOTORING ELETTRICO PER PORTA DX 		- 1 Enquire
022 4132053
SHIM
(Valid for June 1992 version) SPESSORE 1.2MM 		- 1 Enquire
022 4132051
SHIM
(Valid for June 1992 version) SPESSORE0.8MM 		- 1 Enquire
022 4132052
SHIM
(Valid for June 1992 version) SPESSORE 1 MM 		- 1 Enquire
022 4132054
SHIM
(Valid for June 1992 version) SPESSORE 1.5 MM 		- 1 Enquire
023 9490412
RIGHT MIRROR
(Valid for June 1992 version) SPECCHIO DESTRO 		- 1 Enquire
023 9490413
LEFT MIRROR
(Valid for June 1992 version) SPECCHIO SINISTRO 		- 1 Enquire
