Rear Body Elements (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

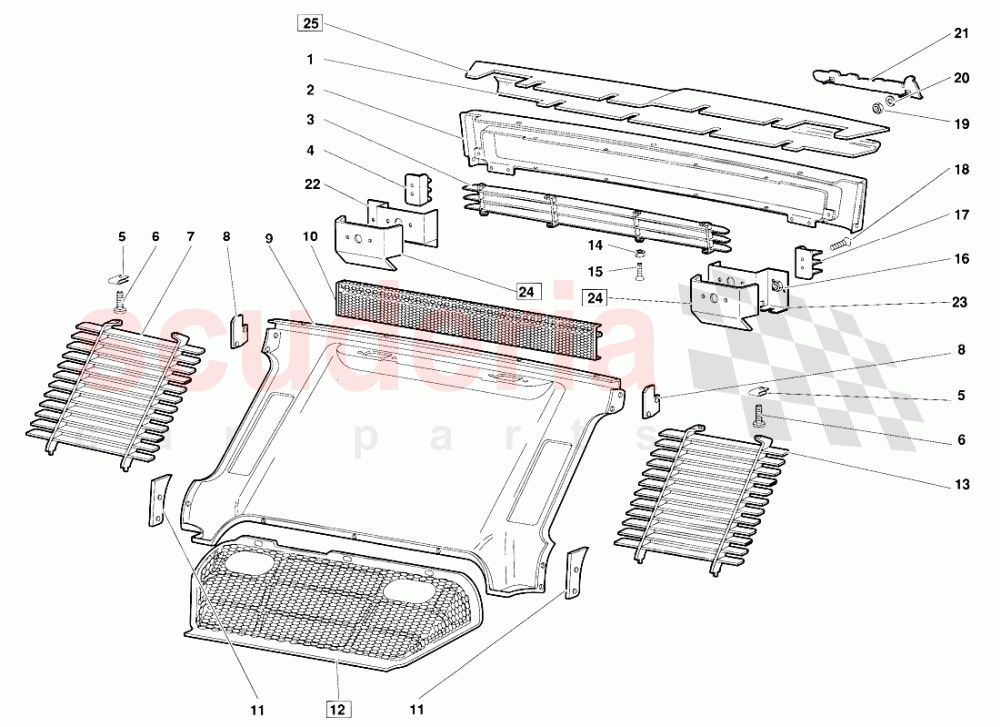

Lamborghini Diablo (1990-1998) - Rear Body Elements (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9430132	SHIELD	9430132 SHIELD PARATIA ANTICALORE	-	1	Enquire
002	9410210	REAR FRAME	9410210 REAR FRAME CORNICE POSTERIORE	-	1	Enquire
003	9430008	GRILLE	9430008 GRILLE	-	1	Enquire
004	9430136	GRILLE	9430136 GRILLE (Valid for June 1992 version) GRIGLIA DESTRA	-	1	Enquire
005	WHT003383	CLIP	WHT003383 CLIP (Valid for June 1992 version) PIASTRINA FILETTATA	-	4	Enquire
006	N10247302	OVAL HEAD PANEL SCREW	N10247302 OVAL HEAD PANEL SCREW (Valid for June 1992 version) VITE	-	4	Enquire
007	9430103	RIGHT GRILLE	9430103 RIGHT GRILLE (Valid for June 1992 version) GRIGLIA INFERIORE DESTRA	-	1	Enquire
008	9410205	SPACER	9410205 SPACER (Valid for June 1992 version) DISTANZIALE	-	2	Enquire
009	9410200	REAR PANEL	9410200 REAR PANEL (Valid for June 1992 version) ELEMENTO SCOCCA POSTERIORE	-	1	Enquire
010	9430135	NET	9430135 NET (Valid for June 1992 version) RETE METALLICA	-	1	Enquire
011	9410206	SPACER	9410206 SPACER (Valid for June 1992 version) DISTANZIALE	-	2	Enquire
012	9430121	NET	9430121 NET (Valid for June 1992 version) GRIGLIA (fino 12710)	-	1	Enquire
012	9430138	GRILLE	9430138 GRILLE (Valid for June 1992 version) GRIGLIA (dalla 12711) (Particolare intercambiabile solamente se accoppiato con i terminal! di scarico 004432725 e 004432726)	-	1	Enquire
013	9430104	LEFT GRILLE	9430104 LEFT GRILLE (Valid for June 1992 version) GRIGLIA INFERIORE SINISTRA	-	1	Enquire
014	8200301	NUT	8200301 NUT (Valid for June 1992 version) DADO	-	8	Enquire
015	8700328	SCREW	8700328 SCREW (Valid for June 1992 version) VITE	-	8	Enquire
016	8200301	NUT	8200301 NUT (Valid for June 1992 version) DADO	-	4	Enquire
017	9430134	GRILLE	9430134 GRILLE (Valid for June 1992 version) GRIGLIA LATERALE SINISTRA	-	1	Enquire
018	8700328	SCREW	8700328 SCREW (Valid for June 1992 version) VITE	-	4	Enquire
019	8200302	NUT	8200302 NUT (Valid for June 1992 version) DADO	-	2	Enquire
020	8400303	WASHER	8400303 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
021	9466101	ORNAMENT	9466101 ORNAMENT (Valid for June 1992 version) FREGIO DIABLO	-	1	Enquire
022	9410211	SUPPORT - SUPPORTO	9410211 SUPPORT - SUPPORTO (Valid for June 1992 version) O FANALE DESTRO	-	1	Enquire
023	9410212	SUPPORT - SUPPORTO	9410212 SUPPORT - SUPPORTO (Valid for June 1992 version) O FANALE SINISTRO	-	1	Enquire
024	9455246	LINING	9455246 LINING (Valid for June 1992 version) ISOLAMENTO	-	1	Enquire
025	9455245	INSULATOR	9455245 INSULATOR (Valid for June 1992 version) ISOLAMENTO GALORE CORNICE	-	1	Enquire
