Windows of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Windows

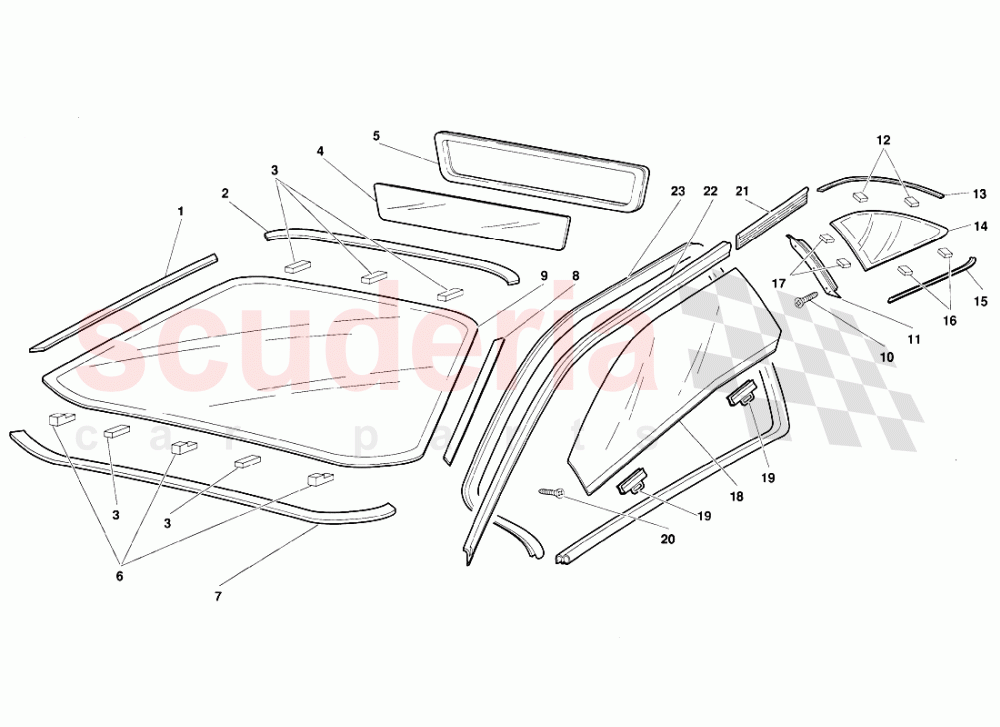

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9415204	RIGHT FRAME	9415204 RIGHT FRAME CORNICE LATERALE DESTRA	$415.44	1
002	9415200	TOP FRAME	9415200 TOP FRAME CORNICE SUPERIORE	$529.77	1
003	410845235	WINDSHIELD SPACER IN STOCK	410845235 WINDSHIELD SPACER IN STOCK	$45.12	5
004	9418100	REAR GLASS	9418100 REAR GLASS CRISTALLO POSTERIORE	$849.89 MSRP: ~~889.00~~ (4.4% off)	1
005	9418101	GASKET GLAS	9418101 GASKET GLAS GUARNIZIONE VETRO	-	1	Enquire
006	9415101	SPACER	9415101 SPACER DISTANZIALE	$15.57	3
007	9415201	BOTTOM FRAME	9415201 BOTTOM FRAME CORNICE	$473.31	1
008	9415205	LEFT FRAME	9415205 LEFT FRAME CORNICE	$525.45	1
009	9415107	FRONT GLASS	9415107 FRONT GLASS CRISTALLO ANTERIORE	$8,062.44	1
010	8700317	SCREW	8700317 SCREW VITE	$0.36	6
011	9417104	RIGHT FRAME	9417104 RIGHT FRAME CORNICE DESTRA	$622.42	1
011	9417105	LEFT FRAME	9417105 LEFT FRAME CORNICE SINISTRA	$466.09	1
012	410845626	SPACER	410845626 SPACER	$11.83	4
013	9417106	RIGHT FRAME	9417106 RIGHT FRAME CORNICE SUPERIORE DESTRA	$719.42	1
013	9417107	LEFT FRAME	9417107 LEFT FRAME CORNICE SUPERIORE SINISTRO	$367.66	1
014	70004149	RIGHT HAND GLASS	70004149 RIGHT HAND GLASS CRISTALLO LATERALE DESTRO	$11,464.01	1
014	70004150	LEFT HAND GLASS	70004150 LEFT HAND GLASS CRISTALLO LATERALE SINISTRO	$11,464.01	1
015	9417103	LEFT FRAME	9417103 LEFT FRAME CORNICE INFERIORE SINISTRA	$209.09 MSRP: ~~218.00~~ (4.1% off)	1
015	9417102	RIGHT FRAME	9417102 RIGHT FRAME CORNICE INFERIORE DESTRA	$277.92	1
016	400845633	QUARTER WINDOW GLASS SHIM	400845633 QUARTER WINDOW GLASS SHIM DISTANZIALE	$16.86	4
017	9417110	SPACER	9417110 SPACER DISTANZIALE	$16.86	4
018	72004147	RIGHT DOOR GLASS	72004147 RIGHT DOOR GLASS	$8,677.59	1
018	72004148	LEFT DOOR GLASS	72004148 LEFT DOOR GLASS	$4,740.49	1
019	9421607	BRACKET	9421607 BRACKET STAFFA	$59.27	4
020	8700211	BLACK SCREW	8700211 BLACK SCREW VITE	$0.07	4
021	9421733	GASKET	9421733 GASKET GUARNIZIONE	$41.11	2
022	72001177	GASKET	72001177 GASKET	$542.81	2
023	72010206	LHS GASKET	72010206 LHS GASKET GUARNIZIONE	$879.65	1
023	72010205	RHS GASKET	72010205 RHS GASKET	$713.41	1
