Lamborghini Diablo (1990-1998) - Frame Floor Panels (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

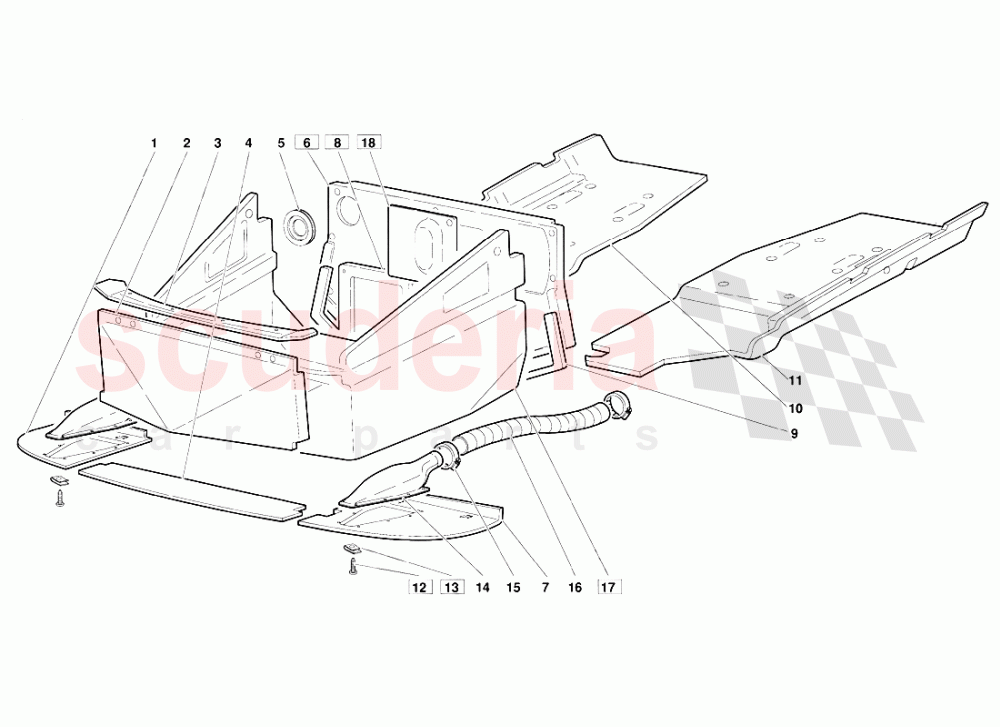

Frame Floor Panels (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9411110
SHELF PANEL
(Valid for June 1992 version) PIANALE LATERALE DX 		- 1 Enquire
002 9411105
PANEL
(Valid for June 1992 version) PARETE ANTERIORE 		- 1 Enquire
003 9411113
FRAME
(Valid for June 1992 version) CORNICE 		- 1 Enquire
004 9411106
PANEL
(Valid for June 1992 version) PIANALE CENTRALE 		- 1 Enquire
005 9409215
GASKET
(Valid for June 1992 version) GUARNIZIONE IN COMMA 		- 1 Enquire
006 9409230
PANEL
(Valid for June 1992 version) PANNELLO CENTRALE (dalla 12789) 		- 1 Enquire
006 9409220
PANEL
(Valid for June 1992 version) PANNELLO CENTRALE (fino 12788) 		- 1 Enquire
007 9411111
SHELF PANEL
(Valid for June 1992 version) PIANALE LATERALE SX 		- 1 Enquire
008 9409227
FRAME
(Valid for June 1992 version) CORNICE AMPLIFICATORE (dalla 12789) 		- 1 Enquire
008 9409210
PANEL
(Valid for June 1992 version) CORNICE AMPLIFICATORE (fino 12788) 		- 1 Enquire
009 9409219
GASKET
(Valid for June 1992 version) GUARNIZIONE 		- 1 Enquire
010 9411203
SHELF PANEL
(Valid for June 1992 version) PIANALE ABITACOLO LATO DX 		- 1 Enquire
011 9411204
SHELF PANEL
(Valid for June 1992 version) PIANALE ABITACOLO LATO SX 		- 1 Enquire
012 N91049601
OVAL HEAD PANEL SCREW (COMBI)
(Valid for June 1992 version) VITE (sostituisce il 008700453) 		- 16 Enquire
013 8220401
PLATE
(Valid for June 1992 version) PIASTRINA FILETTATA (sostituisce il 008200301) 		- 16 Enquire
014 9453132
AIR INTAKE
(Valid for June 1992 version) PRESA D'ARIA TIPO NACA 		- 2 Enquire
015 8837501
STRAP
(Valid for June 1992 version) FASCETTA 		- 4 Enquire
016 9453133
PIPE
(Valid for June 1992 version) TUBO 		- 2 Enquire
017 9409225
COVERING
(Valid for June 1992 version) RIVESTIMENTO INTERNO BAULE 		- 1 Enquire
018 9409231
INSPECTION LID
(Valid for June 1992 version) SPORTELLO ISPEZIONE POMPA FRENI (dalla 12789) 		- 1 Enquire
