Rear Wheel and Hub Carrier of Lamborghini Lamborghini Diablo (1990-1998)

View All

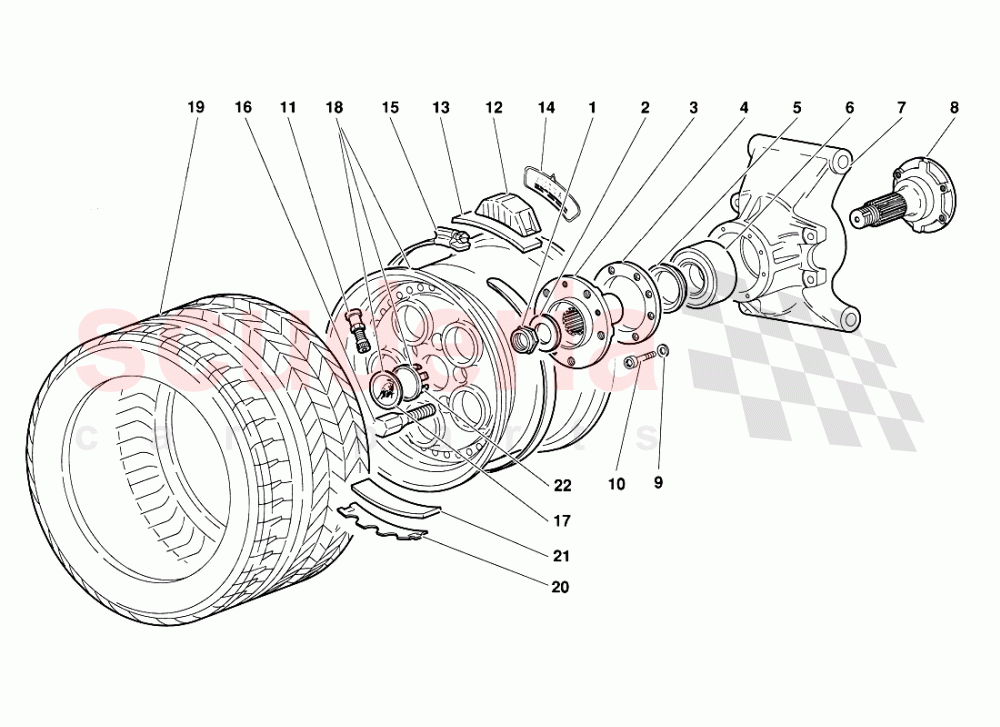

Lamborghini Diablo (1990-1998) - Rear Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5231418	NUT	5231418 NUT DADO	$1,006.01	2
002	8403103	WASHER	8403103 WASHER RONDELLA	$147.03	2
003	5225918	HUB	5225918 HUB MOZZO PORTARUOTA	-	2	Enquire
004	5231740	FLANGE	5231740 FLANGE FLANGIA	$399.50	2
005	5225957	SPACER	5225957 SPACER DISTANZIALE	$110.91	2
006	8514501	BEARING	8514501 BEARING CUSCINETTO	$115.64 MSRP: ~~121.00~~ (4.4% off)	2
007	5232148	HUB HOUSING	5232148 HUB HOUSING PORTAMOZZO DESTRO	$7,736.75	1
007	5232147	HUB HOUSING	5232147 HUB HOUSING PORTAMOZZO SINISTRA	$8,388.13	1
008	5225917	FLANGE	5225917 FLANGE FLANGIA	-	2	Enquire
009	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.77 MSRP: ~~7.38~~ (48.9% off)	16
010	8100601	SCREW	8100601 SCREW VITE	$0.27	16
011	5330906	VALVE	5330906 VALVE VALVOLA	$51.18	2
012	5131891	LOW TYRE P. SENSOR	5131891 LOW TYRE P. SENSOR TRASMETTITORE PRESSIONE PNEUM.	-	2	Enquire
013	5131894	GASKET	5131894 GASKET GUARNIZIONE	$2.67 MSRP: ~~2.70~~ (1.1% off)	2
014	5132551	PLATE	5132551 PLATE TARGHETTA POSIZIONE TRASMET.	$16.25	1
015	5131893	STRAP	5131893 STRAP FASCETTA	-	2	Enquire
016	5234416	STUD	5234416 STUD	$160.67	10
017	52006282	ORNAMENT IN STOCK	52006282 ORNAMENT FREGIO CON LOGO IN STOCK	$180.93	2
018	5227259	REAR RIM	5227259 REAR RIM CERCHIO RUOTA POSTERIORE	$2,518.63	2
019	5329987	TIRE	5329987 TIRE PN. ANTERIORE PIRELLI 335/35 ZR17	-	2	Enquire
019	5332474	PNEUMATIC - (Valid for SWITZERLAND version - October 1991) PNEUMATICO POSTERIORE 335/35 ZR 1 7 BRIDGESTONE	5332474 PNEUMATIC - (Valid for SWITZERLAND version - October 1991) PNEUMATICO POSTERIORE 335/35 ZR 1 7 BRIDGESTONE PNEUMATICO POST. BRIDGESTONE	-	2	Enquire
020	5131892	BALANCE WEIGHT	5131892 BALANCE WEIGHT CONTRAPPESO PER TRASMETTITORE	$33.01	2
021	5131895	GASKET	5131895 GASKET GUARNIZIONE	$3.43 MSRP: ~~3.50~~ (2% off)	2
022	5229261	COVER	5229261 COVER	-	2	Enquire
