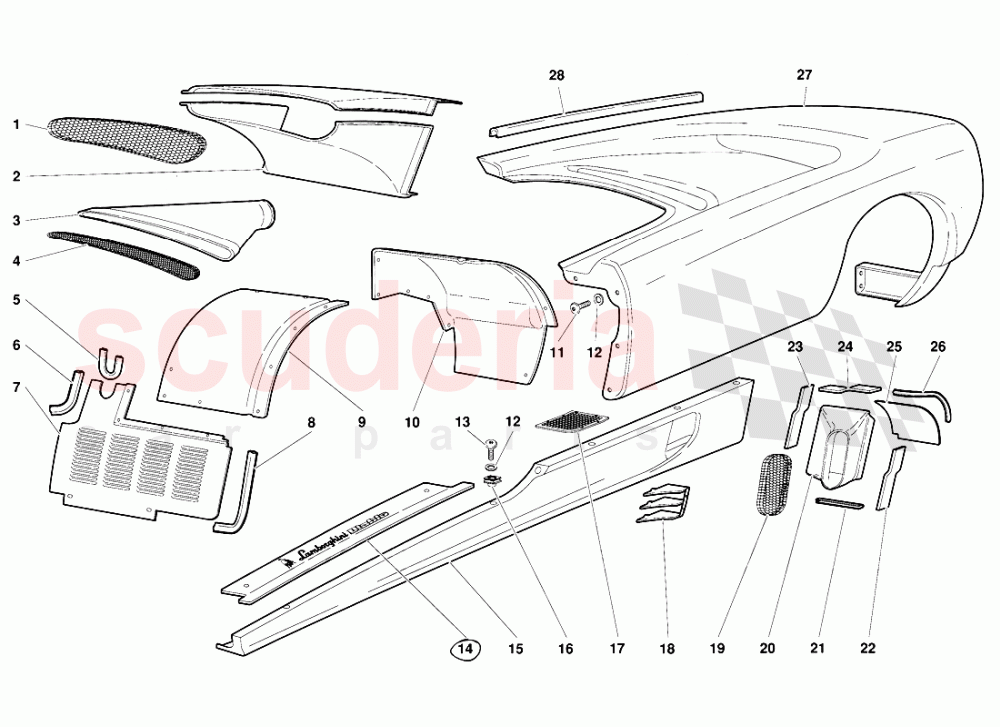

Lamborghini Diablo (1990-1998) - Body Elements-Left Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9430125	NET	9430125 NET RETE	-	1	Enquire
002	9453101	CONVEYOR	9453101 CONVEYOR CONVOGLIATORE	-	1	Enquire
003	9453103	CONVEYOR	9453103 CONVEYOR CONVOGLIATORE	-	1	Enquire
004	9430127	NET	9430127 NET RETE	-	1	Enquire
005	9411513	GASKET	9411513 GASKET GUARNIZIONE	-	1	Enquire
006	9411512	GASKET	9411512 GASKET GUARNIZIONE	-	1	Enquire
007	9411504	PROTECTION	9411504 PROTECTION ELEMENTO PASSARUOTA POST.	-	1	Enquire
008	9411511	GASKET	9411511 GASKET GUARNIZIONE	-	1	Enquire
009	9411505	REAR WHEELBOX	9411505 REAR WHEELBOX ELEMENTO PASSARUOTA POST.	-	1	Enquire
010	9411506	REAR WHEELBOX	9411506 REAR WHEELBOX ELEMENTO PASSARUOTA POST.	-	1	Enquire
011	8740685	SCREW	8740685 SCREW VITE	-	11	Enquire
012	8400624	WASHER	8400624 WASHER RONDELLA	-	11	Enquire
013	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	9	Enquire
014	9458308	DOORSILL MOULDING	9458308 DOORSILL MOULDING BATTICALCAGNO	-	1	Enquire
015	9410301	SIDE PANEL	9410301 SIDE PANEL BRANCARDO	-	1	Enquire
016	N90327506	SPEED NUT	N90327506 SPEED NUT PIASTRINA FILETTATA	-	9	Enquire
017	9430131	GRILLE	9430131 GRILLE GRIGLIA	-	1	Enquire
018	9430002	GRILLE	9430002 GRILLE GRIGLIA	-	1	Enquire
019	9430102	NET	9430102 NET RETE	-	1	Enquire
020	9453104	CONVEYOR	9453104 CONVEYOR CONVOGLIATORE	-	1	Enquire
021	9453123	GASKET	9453123 GASKET GUARNIZIONE	-	1	Enquire
022	9453126	GASKET	9453126 GASKET GUARNIZIONE	-	1	Enquire
023	9453125	GASKET	9453125 GASKET GUARNIZIONE	-	1	Enquire
024	9453124	GASKET	9453124 GASKET GUARNIZIONE	-	1	Enquire
025	9453117	CONVEYOR	9453117 CONVEYOR CONVOGLIATORE	-	1	Enquire
026	9490200	GASKET	9490200 GASKET GUARNIZIONE	-	1	Enquire
027	9410003	REAR MUDGUARD FEN.	9410003 REAR MUDGUARD FEN. PARAFANGO POSTERIORE SINISTRO	-	1	Enquire
028	9490110	GASKET	9490110 GASKET GUARNIZIONE	-	1	Enquire
