Lamborghini Diablo (1990-1998) - Windscreen Wiper and Headlamp Washers

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

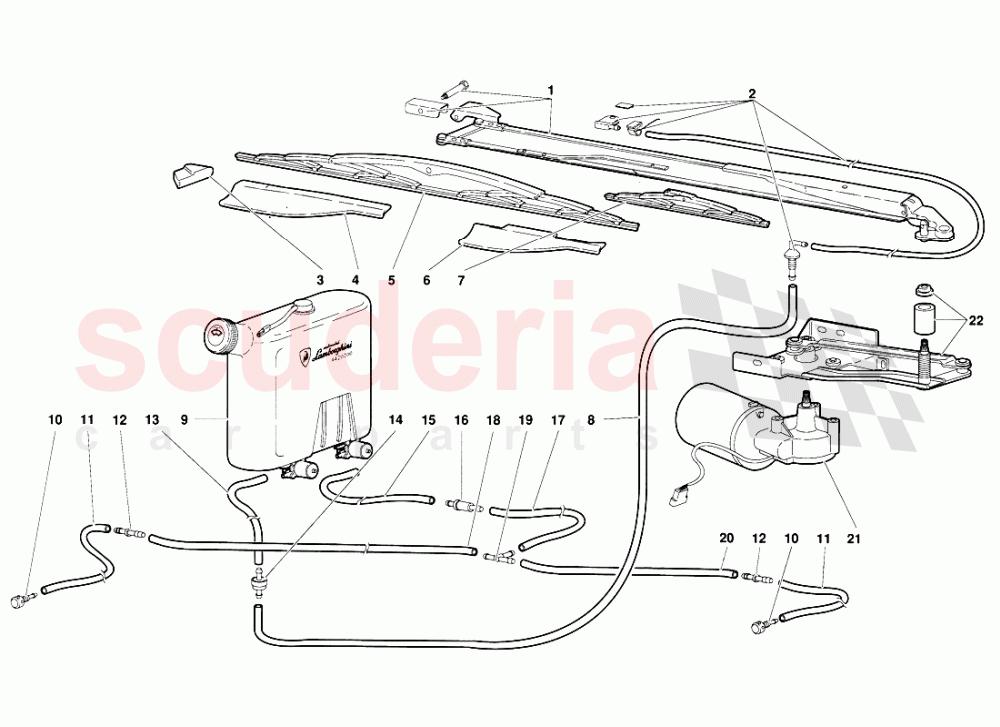

Windscreen Wiper and Headlamp Washers of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9420113
WIPER ARM
BRACCIOTERGITORE 		- 1 Enquire
002 418955215
WINDSCREEN WASHER
LAVAPARABREZZA 		$137.10 1
003 9420119
RUBBER PAD
TAMPONE COMMA 		$58.75 1
004 9420118
FIN
ALETTA 		$266.75 1
005 9420114
BRUSH
SPAZZOLA LUNGA 		$71.36 1
006 9420117
FIN
ALETTA 		$266.75 1
007 9420115
BRUSH
SPAZZOLA CORTA 		- 1 Enquire
008 9420211
PIPE
TUBO 		$7.31 1
009 9420200
WATER RESERVOIR
SERBATOIO ACQUA 		$107.23 1
010 400955985
NOZZLE
UGELLO 		$5.79 2
011 9420215
PIPE
TUBO 		$9.20 2
012 9420208
CONNECTION
RACCORDO A 2 VIE 		$1.50 2
013 9420201
PIPE
TUBO 		$13.40 (1.5% off) 1
014 9420210
VALVE
VALVOLA Dl NON RITORNO 		$6.45 1
015 9420216
PIPE
TUBO 		$6.28 (1.9% off) 1
016 9420217
VALVE
VALVOLA Dl NON RITORNO 		$6.75 1
017 9420212
PIPE
TUBO 		$28.14 1
018 9420213
PIPE
TUBO 		$6.28 1
019 9420209
3 WAY CONNECTION
RACCORDO A 3 VIE 		$2.61 1
020 9420214
PIPE
TUBO 		$21.36 1
021 9420112
ELECT MOTOR
MOTORING TERGI 		$602.99 (4.1% off) 1
