Bumpers of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Bumpers

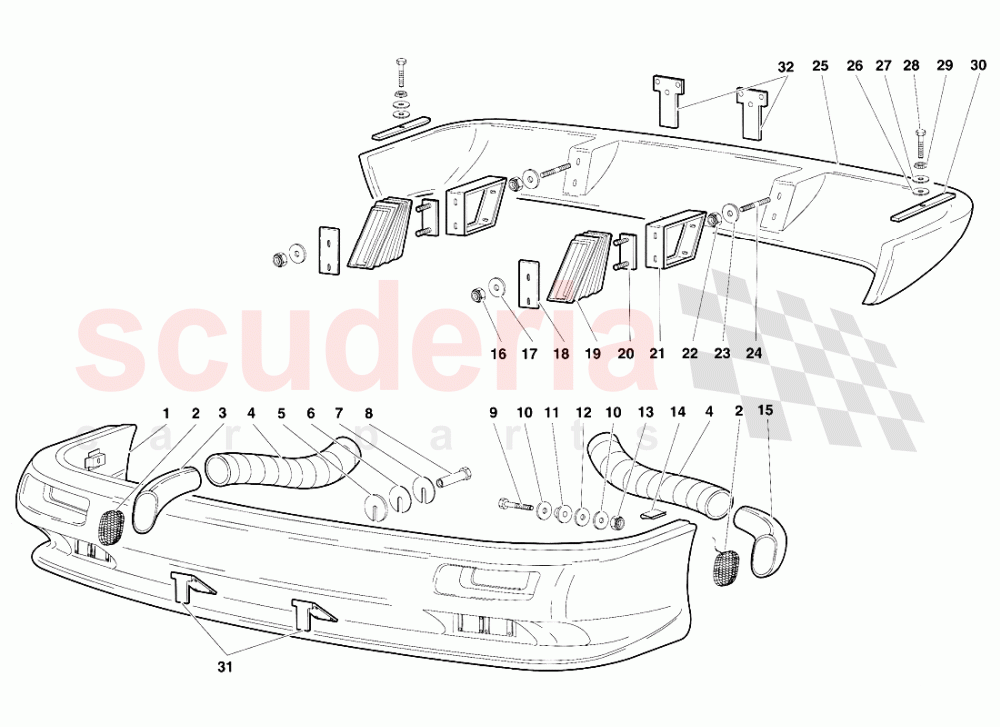

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9463004	FRONT BUMPER	9463004 FRONT BUMPER PARAURTI ANTERIORE	$13,693.11	1
002	9430128	NET	9430128 NET RETINA	$68.97	2
003	9453108	RIGHT AIR INTAKE	9453108 RIGHT AIR INTAKE PRESA D'ARIA DESTRA	$254.97 MSRP: ~~267.00~~ (4.5% off)	1
004	9453109	PIPE	9453109 PIPE TUBO	$89.34	2
005	410807255	5.0 MM SHIM	410807255 5.0 MM SHIM SPESSORE Dl REGISTRO	$153.25	1
006	7063145	SHIM	7063145 SHIM use : 410807567	-	1	Enquire
007	9463115	SHIM	9463115 SHIM SPESSORE Dl REGISTRO	$25.69 MSRP: ~~26.85~~ (4.3% off)	1
008	9463117	SCREW	9463117 SCREW VITE	$46.59	2
009	8100832	SCREW	8100832 SCREW	$2.56	2
010	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.30	4
011	9463109	WASHER	9463109 WASHER DISTANZIALE	$43.12 MSRP: ~~43.60~~ (1.1% off)	2
012	9463110	SPACER	9463110 SPACER RONDELLA	$15.21	2
013	8200809	NUT	8200809 NUT DADO	$1.96	2
014	8220506	CLIP IN STOCK	8220506 CLIP MOLLETTA IN STOCK	$42.51	8
015	9453115	LEFT AIR INTAKE	9453115 LEFT AIR INTAKE PRESA D'ARIA SINISTRA	$254.97 MSRP: ~~267.00~~ (4.5% off)	1
016	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.15 MSRP: ~~7.25~~ (70.3% off)	4
017	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.30	4
018	9463220	PLATE	9463220 PLATE PIASTRA	$38.85	2
019	9463204	SHIELD	9463204 SHIELD SOFFIETTO	$243.19	2
020	9463209	PLATE	9463209 PLATE PIASTRA	$11.31 MSRP: ~~11.45~~ (1.2% off)	2
021	9463208	SUPPORT - SUPPORTO	9463208 SUPPORT - SUPPORTO O	$244.64	2
022	8200809	NUT	8200809 NUT DADO	$1.96	4
023	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 RONDELLA IN STOCK	$1.55	4
024	8300820	STUD	8300820 STUD PRIGIONIERO	$2.48 MSRP: ~~7.03~~ (64.7% off)	4
025	9463005	REAR BUMPER	9463005 REAR BUMPER PARAURTI POSTERIORE	$10,911.88	1
026	9463110	SPACER	9463110 SPACER DISTANZIALE	$15.21	2
027	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.30	2
028	8100831	SCREW	8100831 SCREW VITE	$0.25 MSRP: ~~7.35~~ (96.6% off)	2
029	8410816	WASHER	8410816 WASHER RONDELLA	$0.07	2
030	9463207	SPACER	9463207 SPACER DISTANZIALE	$122.94	2
031	9466111	BRACKET	9466111 BRACKET PORTATARGA ANTERIORE	$179.48	2
032	9466112	BRACKET	9466112 BRACKET PORTATARGA POSTERIORE	$227.27	2
