Front Body Elements (Valid for October 1991 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

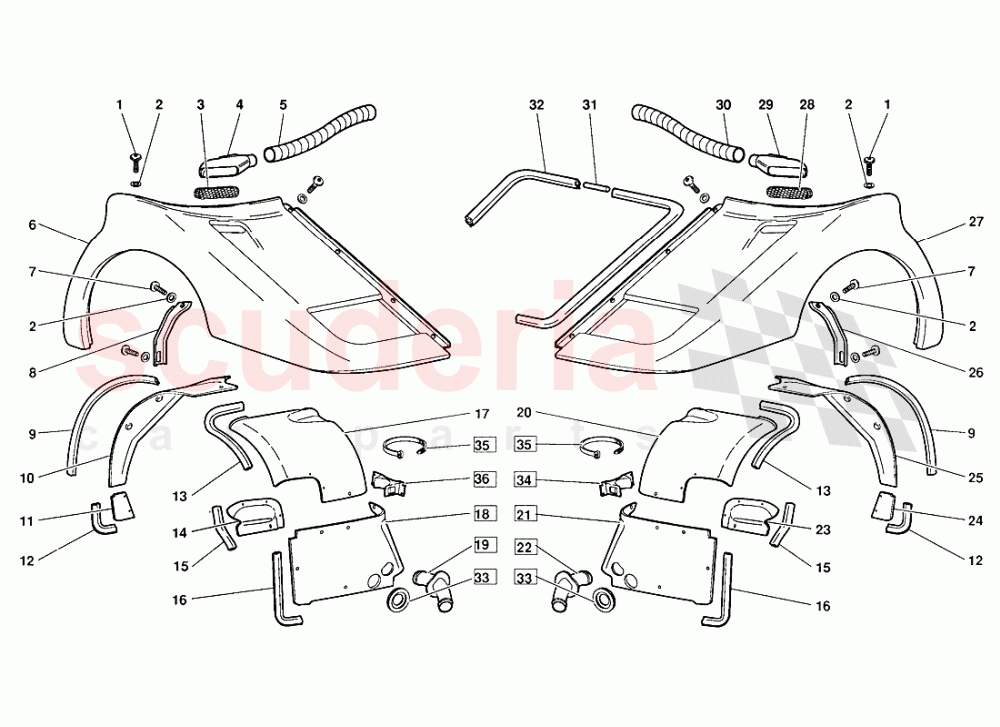

Lamborghini Diablo (1990-1998) - Front Body Elements (Valid for October 1991 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8740685	SCREW	8740685 SCREW (Valid for October 1991 version) VITE	-	20	Enquire
002	8400624	WASHER	8400624 WASHER (Valid for October 1991 version) RONDELLA	-	20	Enquire
003	9430122	RIGHT NET	9430122 RIGHT NET (Valid for October 1991 version) RETE	-	1	Enquire
004	9453002	RIGHT AIR INTAKE	9453002 RIGHT AIR INTAKE (Valid for October 1991 version) PRESA D'ARIA	-	1	Enquire
005	9453129	RIGHT PIPE	9453129 RIGHT PIPE (Valid for October 1991 version) TUBO	-	1	Enquire
006	9410000	RIGHT FR.MUDGU./FEN.	9410000 RIGHT FR.MUDGU./FEN. (Valid for October 1991 version) PARAFANGO ANTERIORE DESTRO	-	1	Enquire
007	8700662	SCREW	8700662 SCREW (Valid for October 1991 version) VITE	-	8	Enquire
008	9409118	BRACKET	9409118 BRACKET (Valid for October 1991 version) STAFFA DESTRA	-	1	Enquire
009	9411410	GASKET	9411410 GASKET (Valid for October 1991 version) GUARNIZIONE	-	2	Enquire
010	9411402	RIGHT FR. WHEELBOX	9411402 RIGHT FR. WHEELBOX (Valid for October 1991 version) ELEMENTO PASSARUOTA DESTRO	-	1	Enquire
011	9411406	SMALL RIGHT PANEL	9411406 SMALL RIGHT PANEL (Valid for October 1991 version) PIASTRA DESTRA	-	1	Enquire
012	9411411	GASKET	9411411 GASKET (Valid for October 1991 version) GUARNIZIONE	-	2	Enquire
013	9411417	GASKET	9411417 GASKET (Valid for October 1991 version) GUARNIZIONE	-	2	Enquire
014	9411412	RIGHT LID INSPECTION	9411412 RIGHT LID INSPECTION (Valid for October 1991 version) ELEMENTO PASSARUOTA ANTERIORE	-	1	Enquire
015	9411416	GASKET	9411416 GASKET (Valid for October 1991 version) GUARNIZIONE	-	2	Enquire
016	9411408	GASKET	9411408 GASKET (Valid for October 1991 version) GUARNIZIONE	-	2	Enquire
017	9411401	FR. WHEELBOX	9411401 FR. WHEELBOX (Valid for October 1991 version) ELEMENTO PASSARUOTA ANTERIORE	-	1	Enquire
018	9411419	FR. WHEELBOX	9411419 FR. WHEELBOX (Valid for October 1991 version) (COMPONENTI EVIDENZIATI FRANNO PARTE DEL KIT CODICE 003133178 PER MODIFICA PRESE ARIA FRENI) ELEMENTO PASSARUOTA ANTERIORE	-	1	Enquire
019	9453134	RIGHT UNION	9453134 RIGHT UNION (Valid for October 1991 version) (COMPONENTI EVIDENZIATI FRANNO PARTE DEL KIT CODICE 003133178 PER MODIFICA PRESE ARIA FRENI) BOCCHETTONE DESTRO	-	1	Enquire
020	9411404	LEFT FR. WHEELBOX	9411404 LEFT FR. WHEELBOX (Valid for October 1991 version) ELEMENTO PASSARUOTA ANTERIORE	-	1	Enquire
021	9411420	FR. WHEELBOX	9411420 FR. WHEELBOX (Valid for October 1991 version) (COMPONENTI EVIDENZIATI FRANNO PARTE DEL KIT CODICE 003133178 PER MODIFICA PRESE ARIA FRENI) ELEMENTO PASSARUOTA ANTERIORE	-	1	Enquire
022	9453135	LEFT UNION	9453135 LEFT UNION (Valid for October 1991 version) (COMPONENTI EVIDENZIATI FRANNO PARTE DEL KIT CODICE 003133178 PER MODIFICA PRESE ARIA FRENI) BOCCHETTONE SINISTRO	-	1	Enquire
023	9411413	INSPECTION LID	9411413 INSPECTION LID (Valid for October 1991 version) ELEMENTO PASSARUOTA ANTERIORE	-	1	Enquire
024	9411407	SMALL LEFT PANEL	9411407 SMALL LEFT PANEL (Valid for October 1991 version) PIASTRA SINISTRA	-	1	Enquire
025	9411405	LEFT FR. WHEELBOX	9411405 LEFT FR. WHEELBOX (Valid for October 1991 version) ELEMENTO PASSARUOTA ANTERIORE	-	1	Enquire
026	9409119	BRACKET	9409119 BRACKET (Valid for October 1991 version) STAFFA SINISTRA	-	1	Enquire
027	9410001A	REPAIR PANEL	9410001A REPAIR PANEL LEFT	-	1	Enquire
027	9410001	LEFT FR.MUDGU./FEN.	9410001 LEFT FR.MUDGU./FEN. (Valid for October 1991 version) PARAFANGO ANTERIORE SINISTRO	-	1	Enquire
028	9430123	LEFT NET	9430123 LEFT NET (Valid for October 1991 version) RETE	-	1	Enquire
029	9453003	LEFT AIR INTAKE	9453003 LEFT AIR INTAKE (Valid for October 1991 version) PRESA D'ARIA	-	1	Enquire
030	9453130	LEFT PIPE	9453130 LEFT PIPE (Valid for October 1991 version) TUBO	-	1	Enquire
031	9490112	UNION	9490112 UNION (Valid for October 1991 version) GIUNZIONE	-	1	Enquire
032	9490111	GASKET	9490111 GASKET (Valid for October 1991 version) GUARNIZIONE COFANO ANTERIORE	-	1	Enquire
033	9411418	GASKET	9411418 GASKET (Valid for October 1991 version) (COMPONENTI EVIDENZIATI FRANNO PARTE DEL KIT CODICE 003133178 PER MODIFICA PRESE ARIA FRENI) ANELLO GOMMA PASSA TUBO	-	2	Enquire
034	9411422	LEFT RETAINER	9411422 LEFT RETAINER (Valid for October 1991 version) (COMPONENTI EVIDENZIATI FRANNO PARTE DEL KIT CODICE 003133178 PER MODIFICA PRESE ARIA FRENI) CAVALLOTTO SINISTRO	-	1	Enquire
035	8830306	CLAMP	8830306 CLAMP (Valid for October 1991 version) (COMPONENTI EVIDENZIATI FRANNO PARTE DEL KIT CODICE 003133178 PER MODIFICA PRESE ARIA FRENI) FASCETTA	-	2	Enquire
036	410805890	RIGHT SUPPORT	410805890 RIGHT SUPPORT (Valid for October 1991 version) (COMPONENTI EVIDENZIATI FRANNO PARTE DEL KIT CODICE 003133178 PER MODIFICA PRESE ARIA FRENI) CAVALLOTTO SINISTRO	-	1	Enquire
