Windscreen Wiper and Headlamp Washers (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Windscreen Wiper and Headlamp Washers (Valid for June 1992 Version)

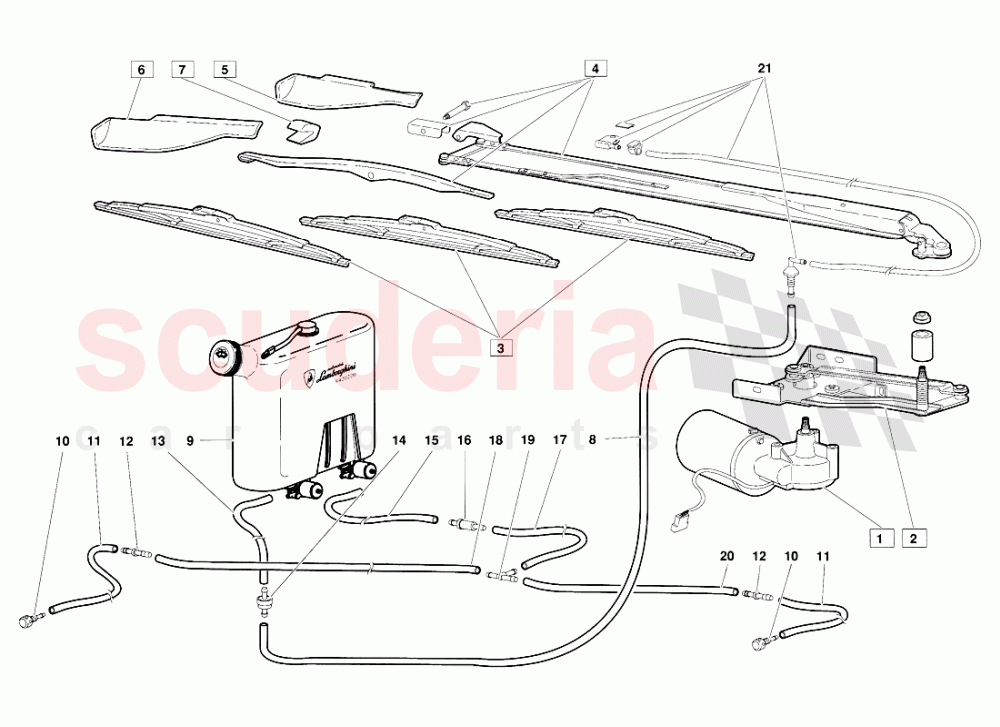

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9420112	ELECT MOTOR	9420112 ELECT MOTOR (Valid for June 1992 version) MOTORING TERGI (dalla 12609)	$602.99 MSRP: ~~629.00~~ (4.1% off)	1
002	9420111	LEVER ASSEMBLY	9420111 LEVER ASSEMBLY (Valid for June 1992 version) MECCANISMO TERGI (dalla 12609)	$1,594.30	1
003	9420126	BRUSH	9420126 BRUSH (Valid for June 1992 version) SPAZZOLA TERGI (dalla 12609)	$31.26 MSRP: ~~31.60~~ (1.1% off)	3
004	9420125	WIPER ARM	9420125 WIPER ARM (Valid for June 1992 version) BRACCIO TERGITORE (dalla 12609)	-	1	Enquire
004	AA0000066	WIND SCREEN WHIPER KIT	AA0000066 WIND SCREEN WHIPER KIT (Valid for June 1992 version) KIT Dl MODIFICA TERGICRISTALLO A 3 SPAZZOLE COMPRENDENTE LO 009420126 e 009420125	$692.37	1
005	9420127	FIN	9420127 FIN (Valid for June 1992 version) ALETTA INTERNA (dalla 12609)	$1,166.68	1
006	9420128	FIN	9420128 FIN (Valid for June 1992 version) ALETTA ESTERNA (dalla 12609)	$2,258.06	1
007	9420129	RUBBER BUMPER	9420129 RUBBER BUMPER (Valid for June 1992 version) PARACOLPI COMMA (dalla 12609)	$34.54	1
008	9420211	PIPE	9420211 PIPE (Valid for June 1992 version) TUBO	$7.31	1
009	9420200	WATER RESERVOIR	9420200 WATER RESERVOIR (Valid for June 1992 version) SERBATOIO ACQUA	$107.23	1
010	400955985	NOZZLE	400955985 NOZZLE (Valid for June 1992 version) UGELLO	$5.79	2
011	9420215	PIPE	9420215 PIPE (Valid for June 1992 version) TUBO	$9.20	2
012	9420208	CONNECTION	9420208 CONNECTION (Valid for June 1992 version) RACCORDO A 2 VIE	$1.50	2
013	9420201	PIPE	9420201 PIPE (Valid for June 1992 version) TUBO	$13.40 MSRP: ~~13.60~~ (1.5% off)	1
014	9420210	VALVE	9420210 VALVE (Valid for June 1992 version) VALVOLA Dl NON RITORNO	$6.45	1
015	9420216	PIPE	9420216 PIPE (Valid for June 1992 version) TUBO	$6.28 MSRP: ~~6.40~~ (1.9% off)	1
016	9420217	VALVE	9420217 VALVE (Valid for June 1992 version) VALVOLA Dl NON RITORNO	$6.75	1
017	9420212	PIPE	9420212 PIPE (Valid for June 1992 version) TUBO	$28.14	1
018	9420213	PIPE	9420213 PIPE (Valid for June 1992 version) TUBO	$6.28	1
019	9420209	3 WAY CONNECTION	9420209 3 WAY CONNECTION (Valid for June 1992 version) RACCORDO A 3 VIE	$2.61	1
020	9420214	PIPE	9420214 PIPE (Valid for June 1992 version) TUBO	$21.36	1
021	418955215	WINDSCREEN WASHER	418955215 WINDSCREEN WASHER (Valid for June 1992 version) LAVAPARABREZZA	$137.10	1
