Headlamps of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Headlamps

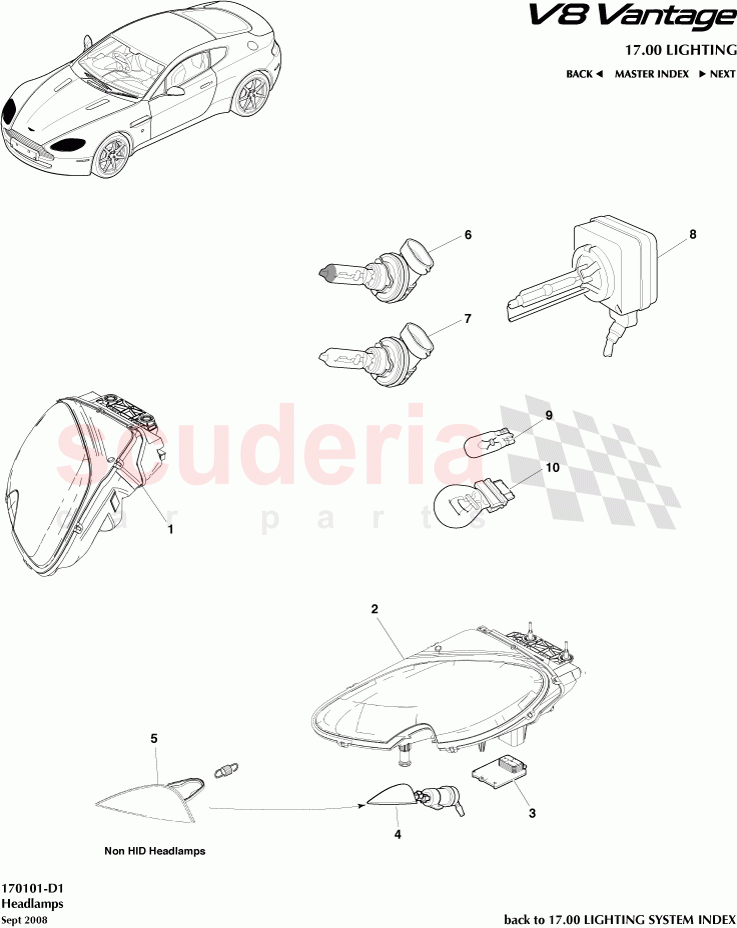

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3313W029DE	Headlamp RH RHD - Xenon	Enquire	To Order
	6G3313W029EE	HEADLIGHT RH LHD	Enquire	To Order
	6G3313W029FE	HEADLAMP RH FED - HID	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3313W030DE	HEADLAMP ASSY LH RHD - HID	Enquire	To Order
	6G3313W030EE	HEADLAMP LH LHD - HID	Enquire	To Order
	6G3313W030FE	HEADLAMP ASSY LH FED - HID	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4313C169AB	BALLAST ASSEMBLY-HEADLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3313C025AB	JETWASH COVER NOZZLE ASSY & PUMP	Enquire	To Order
	6G3313C024AB	HEADLAMP WASH COVER NOZZLE ASSEMBLY & PUMP	Enquire	To Order
	6G3313C025AB	JETWASH COVER NOZZLE ASSY & PUMP	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G333710536	Jet Wash Cover RH	Enquire	To Order
	6G333710537	JET WASH COVER LH V8 NON HID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4U5A13N021AA	BEAM BULB H11	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4399703AA	MAIN BEAM BULB 65W TYPE H9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710226	Bulb, HID, Dip Beam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313465AAPK	BULB W5W BLUE PK 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313465BA	BULB PY27/7W DIRECTION INDICATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

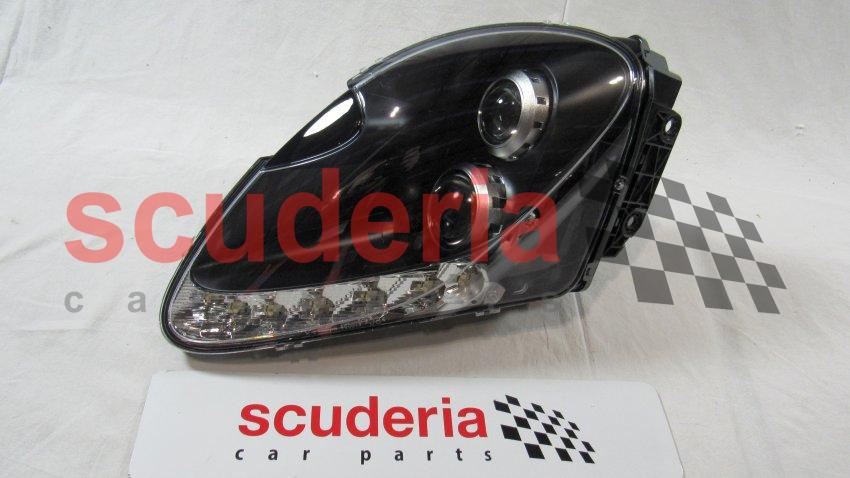

1	6G3313W029DE	Headlamp RH RHD - Xenon	6G3313W029DE Headlamp RH RHD - Xenon Wash and leveling, includes jet wash	-	1	Enquire
1	6G3313W029EE	HEADLIGHT RH LHD	6G3313W029EE HEADLIGHT RH LHD Wash and leveling, includes jet wash	-	1	Enquire
1	6G3313W029FE	HEADLAMP RH FED - HID	6G3313W029FE HEADLAMP RH FED - HID Wash and leveling, includes jet wash	-	1	Enquire
1	BG3313W029AD	HEADLAMP ASSY RH RHD	BG3313W029AD HEADLAMP ASSY RH RHD 11MY	-	1	Enquire
1	BG3313W029BF	HEADLAMP ASSY RH LHD	BG3313W029BF HEADLAMP ASSY RH LHD 11MY	-	1	Enquire
1	BG3313W029CD	HEADLAMP ASSY RH FED	BG3313W029CD HEADLAMP ASSY RH FED 11MY	-	1	Enquire
1	6G3313W029AD	HEADLAMP ASSY RH RHD - HALOGEN	6G3313W029AD HEADLAMP ASSY RH RHD - HALOGEN	-	1	Enquire
1	6G3313W029BD	HEADLAMP ASSY RH LHD HALOGEN	6G3313W029BD HEADLAMP ASSY RH LHD HALOGEN	-	1	Enquire
1	6G3313W029CC	HEADLAMP ASSY RH FED HALOGEN	6G3313W029CC HEADLAMP ASSY RH FED HALOGEN	-	1	Enquire
2	6G3313W030DE	HEADLAMP ASSY LH RHD - HID	6G3313W030DE HEADLAMP ASSY LH RHD - HID Wash and leveling, includes jet wash	-	1	Enquire

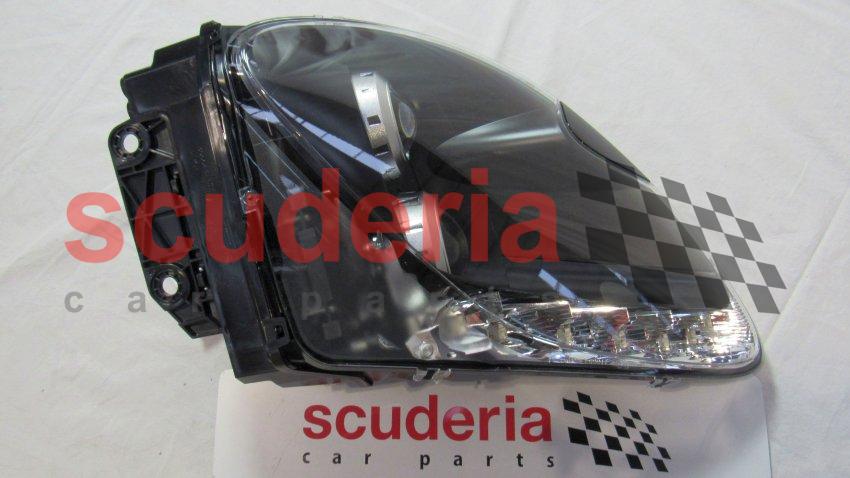

2	6G3313W030EE	HEADLAMP LH LHD - HID	6G3313W030EE HEADLAMP LH LHD - HID Wash and leveling, includes jet wash	-	1	Enquire
2	6G3313W030FE	HEADLAMP ASSY LH FED - HID	6G3313W030FE HEADLAMP ASSY LH FED - HID Wash and leveling, includes jet wash	-	1	Enquire
2	BG3313W030AD	HEADLAMP ASSY LH RHD	BG3313W030AD HEADLAMP ASSY LH RHD 11MY	-	1	Enquire
2	BG3313W030BF	HEADLAMP ASSY LH LHD	BG3313W030BF HEADLAMP ASSY LH LHD 11MY	-	1	Enquire
2	BG3313W030CD	HEADLAMP ASSY LH FED	BG3313W030CD HEADLAMP ASSY LH FED 11MY	-	1	Enquire
2	6G3313W030AD	HEADLAMP ASSY LH RHD - HALOGEN	6G3313W030AD HEADLAMP ASSY LH RHD - HALOGEN	-	1	Enquire
2	6G3313W030BD	HEADLAMP ASSY LH LHD - HALOGEN	6G3313W030BD HEADLAMP ASSY LH LHD - HALOGEN	-	1	Enquire
2	6G3313W030CC	HEADLAMP ASSY LH FED - HALOGEN	6G3313W030CC HEADLAMP ASSY LH FED - HALOGEN	-	1	Enquire
3	4G4313C169AB	BALLAST ASSEMBLY-HEADLAMP	4G4313C169AB BALLAST ASSEMBLY-HEADLAMP	-	-	Enquire

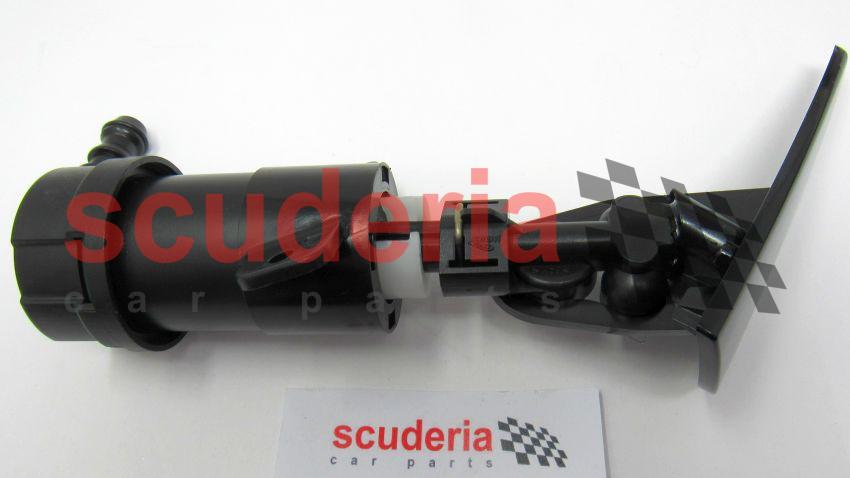

4	6G3313C025AB	JETWASH COVER NOZZLE ASSY & PUMP	6G3313C025AB JETWASH COVER NOZZLE ASSY & PUMP Without deployment mechanism	-	1	Enquire
4	6G3313C024AB	HEADLAMP WASH COVER NOZZLE ASSEMBLY & PUMP	6G3313C024AB HEADLAMP WASH COVER NOZZLE ASSEMBLY & PUMP Without deployment mechanism	-	1	Enquire
4	6G3313C025AB	JETWASH COVER NOZZLE ASSY & PUMP	6G3313C025AB JETWASH COVER NOZZLE ASSY & PUMP	-	1	Enquire
4	6G3313C024AB	HEADLAMP WASH COVER NOZZLE ASSEMBLY & PUMP	6G3313C024AB HEADLAMP WASH COVER NOZZLE ASSEMBLY & PUMP	-	1	Enquire

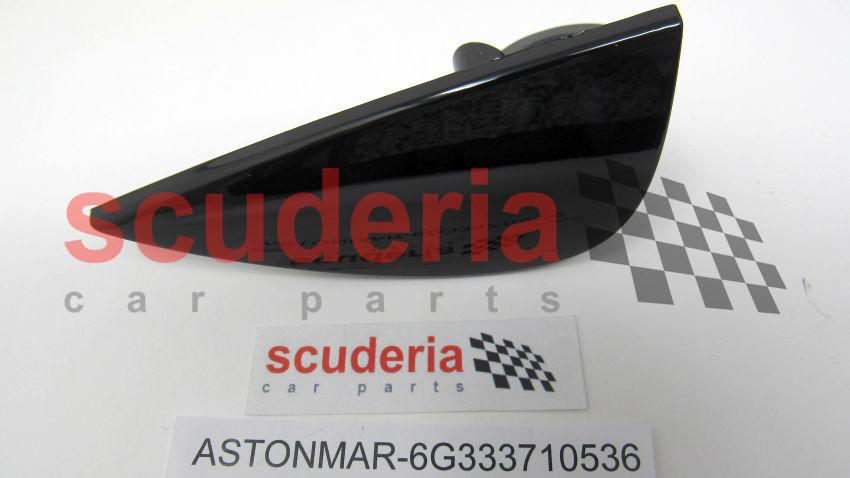

5	6G333710536	Jet Wash Cover RH	6G333710536 Jet Wash Cover RH including spring	-	1	Enquire

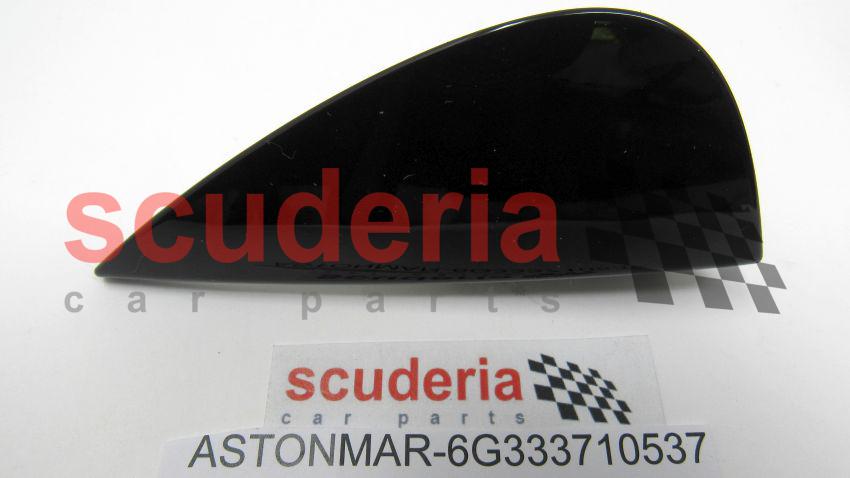

5	6G333710537	JET WASH COVER LH V8 NON HID	6G333710537 JET WASH COVER LH V8 NON HID including spring	-	1	Enquire
6	4U5A13N021AA	BEAM BULB H11	4U5A13N021AA BEAM BULB H11 Dip Beam	-	-	Enquire
7	4G4399703AA	MAIN BEAM BULB 65W TYPE H9	4G4399703AA MAIN BEAM BULB 65W TYPE H9 Main Beam	-	-	Enquire
8	4G433710226	Bulb, HID, Dip Beam	4G433710226 Bulb, HID, Dip Beam Dip Beam (HID)	-	-	Enquire
9	4G4313465AAPK	BULB W5W BLUE PK 2	4G4313465AAPK BULB W5W BLUE PK 2 Side lights	-	-	Enquire
10	4G4313465BA	BULB PY27/7W DIRECTION INDICATOR	4G4313465BA BULB PY27/7W DIRECTION INDICATOR Indicator	-	-	Enquire
