Aston Martin V8 Vantage (upto 2016) - IP and Cowl Wiring (2012)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CG4314K024BD RHD ALPINE FACIA HARNESS Enquire To Order
CG4314401BD LHD ALPINE FACIA HARNESS Enquire To Order
CG4314K024AD Harness assy, facia, B and O Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CD2314B079AC CENTRE STACK MANUAL Enquire To Order
CG3314B079AD Harness assy, Centre Stack AUTO Enquire To Order
Photo Part No Description Price (each) Stock
8D339137BA Harness Assembly, Passive Anti Theft System (PATS) Link Enquire To Order
Photo Part No Description Price (each) Stock
9D3314N003AA Inline bracket, Instrument Panel (IP), RHS Enquire To Order
Photo Part No Description Price (each) Stock
9D3314N003BB Inline bracket, Instrument Panel (IP), LHS Enquire To Order
Photo Part No Description Price (each) Stock
707138 SCREW-M5 x 8 PAN HD Enquire To Order
Photo Part No Description Price (each) Stock
CG4314D454BC Link Harness, Garmin Sat Nav Enquire To Order
View All

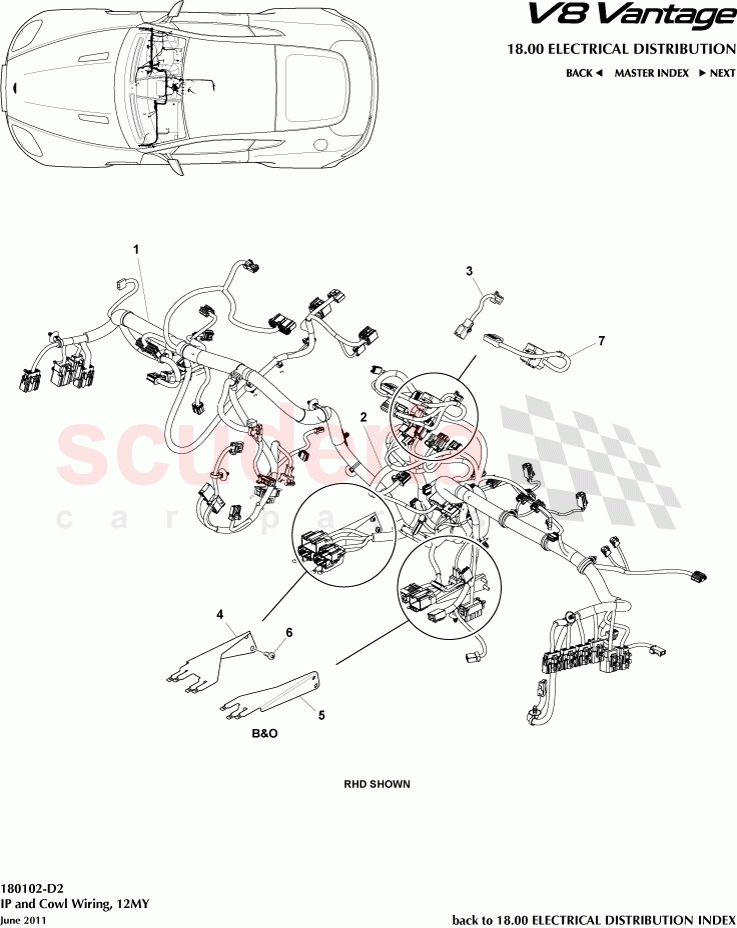

IP and Cowl Wiring (2012) of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CG4314K024BD
RHD ALPINE FACIA HARNESS 		- 1 Enquire
1 CG4314401BD
LHD ALPINE FACIA HARNESS 		- 1 Enquire
1 CG4314K024AD
Harness assy, facia, B and O 		- 1 Enquire
1 CG4314401AD
LHD B & O FACIA HARNESS 		- 1 Enquire
2 CD2314B079AC
CENTRE STACK MANUAL 		- 1 Enquire
2 CG3314B079AD
Harness assy, Centre Stack AUTO 		- 1 Enquire
3 8D339137BA
Harness Assembly, Passive Anti Theft System (PATS) Link 		- 1 Enquire
4 9D3314N003AA
Inline bracket, Instrument Panel (IP), RHS 		- 1 Enquire
5 9D3314N003BB
Inline bracket, Instrument Panel (IP), LHS 		- 1 Enquire
6 707138
SCREW-M5 x 8 PAN HD 		- 4 Enquire
7 CG4314D454BC
Link Harness, Garmin Sat Nav 		- 1 Enquire
