Air Con Lines and Fittings (RHD) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Air Con Lines and Fittings (RHD)

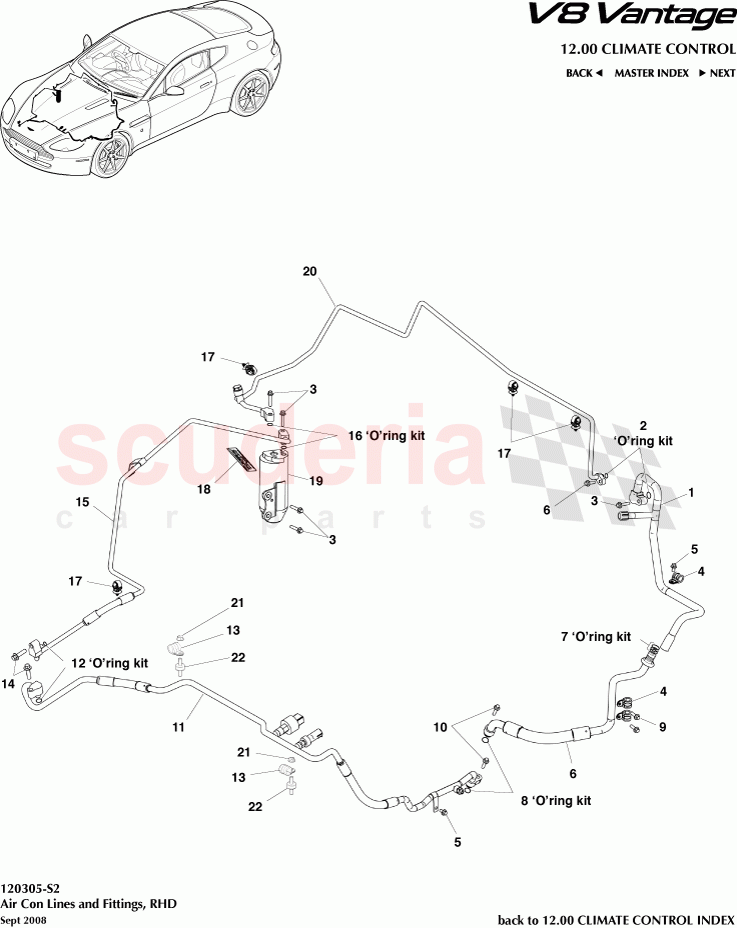

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG3319A705DA	TUB ASY-A/C EVP OLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699699	'P' CLIP - 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HG3319A705CA	TBE AC EVAP OTLT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HG3319972AA	AIR CONDITIONING HOSE PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699634	P-Clip,13 x 15 x M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HG3319D719AA	TUBE AC DEHY INLET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701180	Clip, 14 x 4, Push In	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319E891AD	Air Conditioning Drier	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HG3319835CA	TB AC DEHY EVAP RH	Enquire	To Order
	HG3319835CA	TB AC DEHY EVAP RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G336C778BA	Isolator, Oil Cooler Pipe Mounting	Enquire	IN STOCK
	4G43717B19AB	Air con refrigerant	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AG3319A705DA	TUB ASY-A/C EVP OLET	AG3319A705DA TUB ASY-A/C EVP OLET	-	1	Enquire
2	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	6G438910446PK O RING-V8 EVAPORATOR PACK OF 2	-	1	Enquire
3	703199	Bolt M6x30 HEX FLG Chrome Free IN STOCK	703199 Bolt M6x30 HEX FLG Chrome Free IN STOCK	-	5	Enquire
4	699699	'P' CLIP - 16	699699 'P' CLIP - 16	-	3	Enquire
5	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head IN STOCK	-	2	Enquire
6	HG3319A705CA	TBE AC EVAP OTLT RH	HG3319A705CA TBE AC EVAP OTLT RH	-	1	Enquire
7	4G438910912PK	O-RINGS-EVAP & COND A/C PIPES (PACK OF 3)	4G438910912PK O-RINGS-EVAP & COND A/C PIPES (PACK OF 3)	-	1	Enquire
8	4G438910909PK	O-Ring Compressor (Pack of 2) IN STOCK	4G438910909PK O-Ring Compressor (Pack of 2) IN STOCK	-	1	Enquire
9	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	3	Enquire
10	703025	Screw, M6 x 25, Hex Flange Head IN STOCK	703025 Screw, M6 x 25, Hex Flange Head IN STOCK	-	2	Enquire
11	HG3319972AA	AIR CONDITIONING HOSE PIPE IN STOCK	HG3319972AA AIR CONDITIONING HOSE PIPE IN STOCK	-	1	Enquire
12	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2) IN STOCK	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2) IN STOCK	-	1	Enquire
13	699634	P-Clip,13 x 15 x M6 IN STOCK	699634 P-Clip,13 x 15 x M6 IN STOCK	-	2	Enquire
14	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	-	2	Enquire
15	HG3319D719AA	TUBE AC DEHY INLET IN STOCK	HG3319D719AA TUBE AC DEHY INLET IN STOCK	-	1	Enquire
16	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) IN STOCK	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) IN STOCK	-	1	Enquire
17	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In	-	4	Enquire
19	4G4319E891AD	Air Conditioning Drier IN STOCK	4G4319E891AD Air Conditioning Drier IN STOCK	-	1	Enquire
20	HG3319835CA	TB AC DEHY EVAP RH	HG3319835CA TB AC DEHY EVAP RH 08MY From (V) D07649	-	1	Enquire
20	HG3319835CA	TB AC DEHY EVAP RH	HG3319835CA TB AC DEHY EVAP RH 07MY	-	1	Enquire
21	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head IN STOCK	-	2	Enquire
22	6G336C778BA	Isolator, Oil Cooler Pipe Mounting IN STOCK	6G336C778BA Isolator, Oil Cooler Pipe Mounting IN STOCK	-	2	Enquire
22	4G43717B19AB	Air con refrigerant	4G43717B19AB Air con refrigerant	-	-	Enquire
