Aston Martin V8 Vantage (upto 2016) - Air Distribution Components

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3304432AD Duct Assembly, Windshield Deflector, LHD $149.98 To Order
6G3304432BD Duct Assembly, Windshield Deflector, RHD $149.98 To Order
Photo Part No Description Price (each) Stock
703156 Screw/Washer M6x18 Chrome Free $0.82 To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.80 To Order
Photo Part No Description Price (each) Stock
703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP $0.12 To Order
Photo Part No Description Price (each) Stock
8G4318D404AC Duct Assembly, Heater Air Distribution, LHD $85.36 To Order
8G4318D404BC Duct Assembly, Heater Air Distribution, RHD $99.18 To Order
4G4318D404AD DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE LHD $589.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
702943 Rivet, 3.2 x 12.5, Blind Al Dome Head $0.07 To Order
Photo Part No Description Price (each) Stock
4G4318C491AJ Grille - Window Defrost $642.89 To Order
Photo Part No Description Price (each) Stock
6G3379231AC Screw, M3.5 x 38, Flat Hd Csk $0.50 To Order
Photo Part No Description Price (each) Stock
8G4319C804AE Duct Assembly, A/C Instrument Panel Centre to RH $59.42 To Order
6G3319C735AB DUCT - AIRCON INSTRUMENT PANEL REGISTER RH $41.90 To Order
Photo Part No Description Price (each) Stock
8G4319C805AE Duct Assembly, A/C Instrument Panel Centre to LH $87.81 To Order
6G3319C850AB DUCT - AIRCON INSTRUMENT PANEL REGISTER LH $58.69 To Order
Photo Part No Description Price (each) Stock
4G4318D404CA FOAM SEAL - AIR DISTRIBUTION DUCTS $2.60 To Order
Photo Part No Description Price (each) Stock
8D33046B30BB Register Assembly, RH, Iridium Silver $154.15 To Order
4G43046B30BB Register Assembly, Air Con, RH $154.06 To Order
Photo Part No Description Price (each) Stock
8D33046B31BB Register Assembly, LH, Iridium Silver $154.15 To Order
4G43046B31BB Register Assembly, Air Con, LH $150.94 To Order
Photo Part No Description Price (each) Stock
701447 Screw, M4 x 12, Pan Head, Torx Screw $0.34 To Order
Photo Part No Description Price (each) Stock
4G43C046B80AC SE I/PNL DEF OPG GRL $9.82 To Order
Photo Part No Description Price (each) Stock
4G4319E658AC Hose, A/C Window Demister $59.32 To Order
Photo Part No Description Price (each) Stock
4G43014K00BC AIRCON FOOTWELL DUCT LH - RHD ASSY $136.32 To Order
4G4319E680AD Connector, A/C Demister Hose $9.82 To Order
Photo Part No Description Price (each) Stock
9D33014K97AA Duct Assembly, Aircon Footwell, LH, LHD $8.08 To Order
8G43014K97BB Duct Assembly, Aircon Footwell, LH, RHD $41.56 To Order
9D33014K97AA Duct Assembly, Aircon Footwell, LH, LHD $8.08 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43014K00DB AIRCON FOOTWELL DUCT RH - RHD ASSY $196.24 To Order
7G43014K00AA Plug Assembly, Foot Duct Outlet $13.91 To Order
Photo Part No Description Price (each) Stock
8G43014K96AB Duct Assembly, Aircon Footwell, RH, LHD $41.56 To Order
9D33014K96AA Duct Assembly, Aircon Footwell, RH, RHD $8.08 To Order
Photo Part No Description Price (each) Stock
9G43370807AA Bracket Assembly, Tyre Pressure Monitoring $12.19 To Order
9G43370807AA Bracket Assembly, Tyre Pressure Monitoring $12.19 To Order
View All

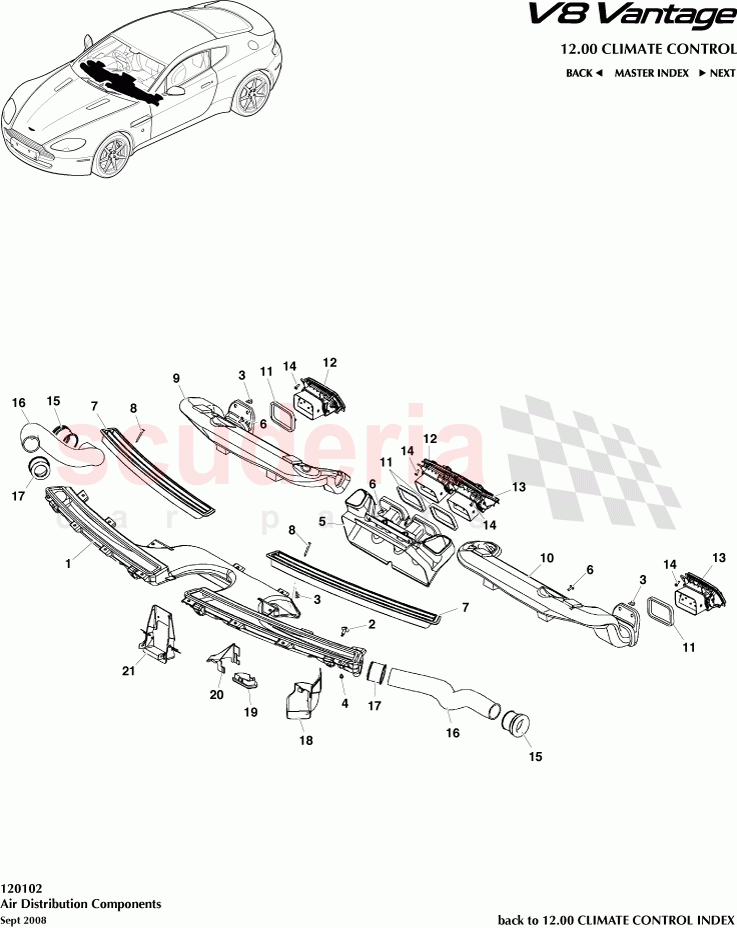

Air Distribution Components of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G3304432AD
Duct Assembly, Windshield Deflector, LHD 		$149.98 1
1 6G3304432BD
Duct Assembly, Windshield Deflector, RHD 		$149.98 1
2 703156
Screw/Washer M6x18 Chrome Free
08MY From (V) D07649 		$0.82 4
3 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
08MY From (V) D07649 		$2.80 6
4 703068
4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP
08MY From (V) D07649 		$0.12 12
5 8G4318D404AC
Duct Assembly, Heater Air Distribution, LHD
08MY From (V) D07649 		$85.36 1
5 8G4318D404BC
Duct Assembly, Heater Air Distribution, RHD
08MY From (V) D07649 		$99.18 1
5 4G4318D404AD
DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE LHD
07MY 		$589.46 1
5 4G4318D404BD
DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE RHD
07MY 		$589.46 1
6 702943
Rivet, 3.2 x 12.5, Blind Al Dome Head
08MY From (V) D07649 		$0.07 4
7 4G4318C491AJ
Grille - Window Defrost 		$642.89 2
8 6G3379231AC
Screw, M3.5 x 38, Flat Hd Csk 		$0.50 4
9 8G4319C804AE
Duct Assembly, A/C Instrument Panel Centre to RH
08MY From (V) D07649 		$59.42 1
9 6G3319C735AB
DUCT - AIRCON INSTRUMENT PANEL REGISTER RH
07MY 		$41.90 1
10 8G4319C805AE
Duct Assembly, A/C Instrument Panel Centre to LH
08MY From (V) D07649 		$87.81 1
10 6G3319C850AB
DUCT - AIRCON INSTRUMENT PANEL REGISTER LH
07MY 		$58.69 1
11 4G4318D404CA
FOAM SEAL - AIR DISTRIBUTION DUCTS 		$2.60 4
12 8D33046B30BB
Register Assembly, RH, Iridium Silver
Silver 		$154.15 2
12 4G43046B30BB
Register Assembly, Air Con, RH
Black 		$154.06 2
13 8D33046B31BB
Register Assembly, LH, Iridium Silver
Silver 		$154.15 2
13 4G43046B31BB
Register Assembly, Air Con, LH
Black 		$150.94 2
14 701447
Screw, M4 x 12, Pan Head, Torx Screw
08MY From (V) D07649 		$0.34 12
15 4G43C046B80AC
SE I/PNL DEF OPG GRL 		$9.82 2
16 4G4319E658AC
Hose, A/C Window Demister 		$59.32 2
17 4G43014K00BC
AIRCON FOOTWELL DUCT LH - RHD ASSY
07MY 		$136.32 1
17 4G4319E680AD
Connector, A/C Demister Hose 		$9.82 2
18 9D33014K97AA
Duct Assembly, Aircon Footwell, LH, LHD
08MY From (V) D07649 		$8.08 1
18 8G43014K97BB
Duct Assembly, Aircon Footwell, LH, RHD
08MY From (V) D07649 		$41.56 1
18 9D33014K97AA
Duct Assembly, Aircon Footwell, LH, LHD
9.5MY 		$8.08 1
18 9D33014K96AA
Duct Assembly, Aircon Footwell, RH, RHD
9.5MY 		$8.08 1
19 4G43014K00DB
AIRCON FOOTWELL DUCT RH - RHD ASSY
07MY 		$196.24 1
19 7G43014K00AA
Plug Assembly, Foot Duct Outlet 		$13.91 1
20 8G43014K96AB
Duct Assembly, Aircon Footwell, RH, LHD
08MY From (V) D07649 		$41.56 1
20 9D33014K96AA
Duct Assembly, Aircon Footwell, RH, RHD
08MY From (V) D07649 		$8.08 1
21 9G43370807AA
Bracket Assembly, Tyre Pressure Monitoring
08MY From (V) D07649 		$12.19 1
21 9G43370807AA
Bracket Assembly, Tyre Pressure Monitoring
07MY 		$12.19 1
