Forward Wiring Assembly of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

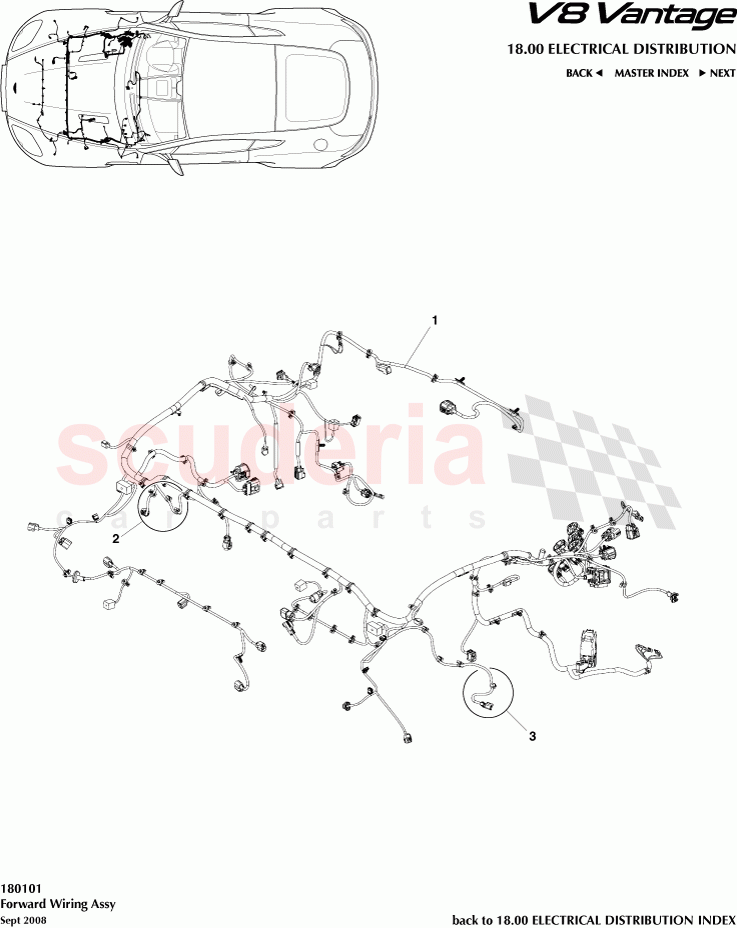

Aston Martin V8 Vantage (upto 2016) - Forward Wiring Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G3314290MB	RH FORWARD HARNESS ASSY	Enquire	To Order
	8G3314290JB	LH FORWARD HARNESS ASSY	Enquire	To Order
	8G3314290AA	LH FORWARD HARNESS ASSY	Enquire	To Order

...and 19 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G439010444	WHEEL SPEED SENSOR- RH FRONT V8 VANTAGE HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG3315K877AB	FRONT BUMPER HARNESS	Enquire	To Order
	9G3315K877AB	FRONT BUMPER HARNESS	Enquire	To Order
	6G439010445	WHEEL SPEED SENSOR- LH FRONT V8 VANTAGE HARNESS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G3314290MB	RH FORWARD HARNESS ASSY	8G3314290MB RH FORWARD HARNESS ASSY 08MY From (V) D07649	-	1	Enquire
1	8G3314290JB	LH FORWARD HARNESS ASSY	8G3314290JB LH FORWARD HARNESS ASSY 08MY From (V) D07649	-	1	Enquire
1	8G3314290AA	LH FORWARD HARNESS ASSY	8G3314290AA LH FORWARD HARNESS ASSY 08MY From (V) D07649	-	1	Enquire
1	8G3314290LB	RH FORWARD HARNESS ASSY	8G3314290LB RH FORWARD HARNESS ASSY 08MY From (V) D07649	-	1	Enquire
1	8G3314290HB	LH FORWARD HARNESS ASSY	8G3314290HB LH FORWARD HARNESS ASSY 08MY From (V) D07649	-	1	Enquire
1	8G3314290BA	RH FORWARD HARNESS ASSY	8G3314290BA RH FORWARD HARNESS ASSY 08MY From (V) D07649	-	1	Enquire
1	CG3314290HA	Harness, assy, fwd, LHD	CG3314290HA Harness, assy, fwd, LHD 12.25MY	-	1	Enquire
1	CG3314290LA	Harness, assy, fwd, RHD	CG3314290LA Harness, assy, fwd, RHD 12.25MY	-	1	Enquire
1	6G3314290ME	RH FORWARD HARNESS ASSY	6G3314290ME RH FORWARD HARNESS ASSY 07MY	-	1	Enquire
1	6G3314290JE	LH FORWARD HARNESS ASSY	6G3314290JE LH FORWARD HARNESS ASSY 07MY	-	1	Enquire
1	6G3314290KE	RH FORWARD HARNESS ASSY	6G3314290KE RH FORWARD HARNESS ASSY 07MY	-	1	Enquire
1	6G3314290EE	LH FORWARD HARNESS ASSY	6G3314290EE LH FORWARD HARNESS ASSY 07MY	-	1	Enquire
1	6G3314290LE	RH FORWARD HARNESS ASSY	6G3314290LE RH FORWARD HARNESS ASSY 07MY	-	1	Enquire
1	6G3314290HE	LH FORWARD HARNESS ASSY	6G3314290HE LH FORWARD HARNESS ASSY 07MY	-	1	Enquire
1	6G3314290AF	RH FORWARD HARNESS ASSY	6G3314290AF RH FORWARD HARNESS ASSY 07MY	-	1	Enquire
1	6G3314290DE	LH FORWARD HARNESS ASSY	6G3314290DE LH FORWARD HARNESS ASSY 07MY	-	1	Enquire
1	9G3314290MC	Harness, assy, fwd, halogen, RHD	9G3314290MC Harness, assy, fwd, halogen, RHD 09MY	-	1	Enquire
1	9G3314290JC	Harness, assy, fwd, halogen, LHD	9G3314290JC Harness, assy, fwd, halogen, LHD 09MY	-	1	Enquire
1	9G3314290LC	RH FORWARD HARNESS ASSY	9G3314290LC RH FORWARD HARNESS ASSY 09MY	-	1	Enquire
1	9G3314290HC	HARNESS-LH FORWARD ASSY	9G3314290HC HARNESS-LH FORWARD ASSY 09MY	-	1	Enquire
1	BG3314290HD	LH FORWARD HARNESS ASSEMBLY	BG3314290HD LH FORWARD HARNESS ASSEMBLY V8S	-	1	Enquire
1	BG3314290LD	RH FORWARD HARNESS ASSEMBLY	BG3314290LD RH FORWARD HARNESS ASSEMBLY V8S	-	1	Enquire
2	6G439010444	WHEEL SPEED SENSOR- RH FRONT V8 VANTAGE HARNESS	6G439010444 WHEEL SPEED SENSOR- RH FRONT V8 VANTAGE HARNESS	-	1	Enquire
3	BG3315K877AB	FRONT BUMPER HARNESS	BG3315K877AB FRONT BUMPER HARNESS V8S/ 12.25MY	-	1	Enquire
3	9G3315K877AB	FRONT BUMPER HARNESS	9G3315K877AB FRONT BUMPER HARNESS 09MY	-	1	Enquire
3	6G439010445	WHEEL SPEED SENSOR- LH FRONT V8 VANTAGE HARNESS	6G439010445 WHEEL SPEED SENSOR- LH FRONT V8 VANTAGE HARNESS	-	1	Enquire
