Parking Reversing Aid of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

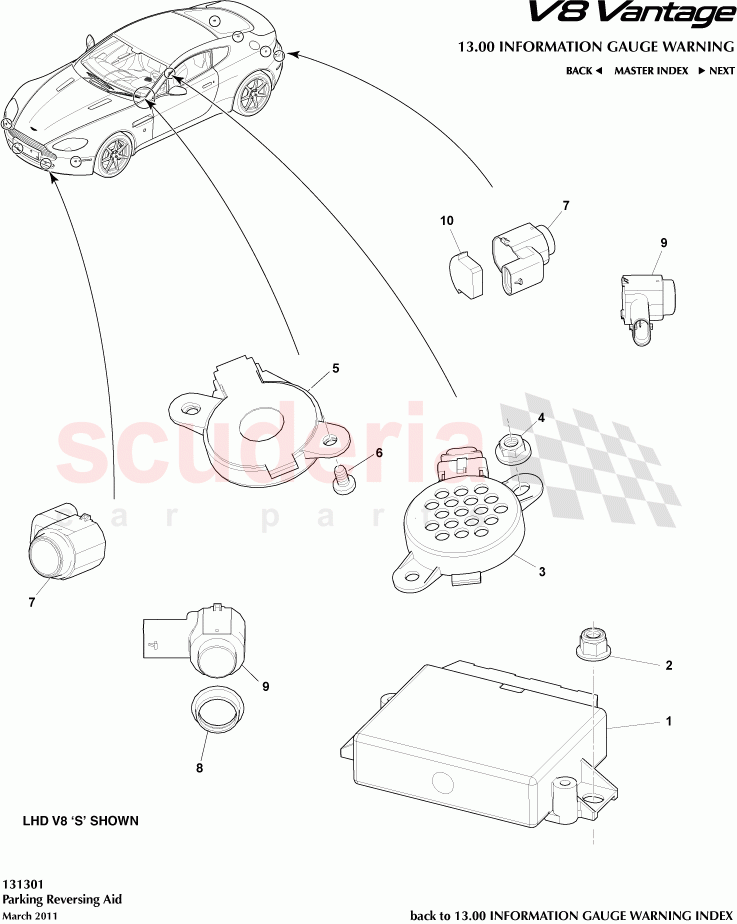

Aston Martin V8 Vantage (upto 2016) - Parking Reversing Aid

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G433711061	Module, Parking Aid	Enquire	To Order
	9G433711061	Module, Parking Aid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G333710502	RPS SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G333710502	RPS SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333710004	Bracket, Park Aid Sensor Inner	Enquire	To Order
	AH4215K859AB	Gen 5.3 Parking Aid Sensor 0 Deg Global Asic	Enquire	ARRIVING SOON
	4G433710045	SENSOR, PARKING AID, FRONT AND REAR-INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G9215K859AB	GEN 5.3 PARKING AID SENSOR 90 DEG GLOBAL ASIC	Enquire	To Order
	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	Enquire	To Order
	4G433710044	Sensor Parking Aid Rear 90 degrees Outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33090400AA	Heat Shield, Sensor, Parking Aid	Enquire	To Order
	6G3315A860AA	SWITCH - REAR PARKING DISTANCE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G433711061	Module, Parking Aid	9G433711061 Module, Parking Aid 09MY	-	1	Enquire
1	9G433711061	Module, Parking Aid	9G433711061 Module, Parking Aid	-	1	Enquire
2	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	2	Enquire
3	9G333710502	RPS SPEAKER	9G333710502 RPS SPEAKER	-	1	Enquire
4	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
5	9G333710502	RPS SPEAKER	9G333710502 RPS SPEAKER	-	2	Enquire
6	703178	M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE	-	2	Enquire
7	8D333710004	Bracket, Park Aid Sensor Inner	8D333710004 Bracket, Park Aid Sensor Inner V8S/12.25MY	-	4	Enquire
7	AH4215K859AB	Gen 5.3 Parking Aid Sensor 0 Deg Global Asic ARRIVING SOON	AH4215K859AB Gen 5.3 Parking Aid Sensor 0 Deg Global Asic V8S/12.25MY ARRIVING SOON	-	4	Enquire
7	4G433710045	SENSOR, PARKING AID, FRONT AND REAR-INNER	4G433710045 SENSOR, PARKING AID, FRONT AND REAR-INNER	-	4	Enquire
8	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	9G9215B864AA Parking Sensor Decoupling Ring Gen 5.3 V8S/12.25MY	-	8	Enquire
9	9G9215K859AB	GEN 5.3 PARKING AID SENSOR 90 DEG GLOBAL ASIC	9G9215K859AB GEN 5.3 PARKING AID SENSOR 90 DEG GLOBAL ASIC V8S/12.25MY	-	4	Enquire
9	9G9215B864AA	Parking Sensor Decoupling Ring Gen 5.3	9G9215B864AA Parking Sensor Decoupling Ring Gen 5.3 V8S	-	4	Enquire
9	4G433710044	Sensor Parking Aid Rear 90 degrees Outer	4G433710044 Sensor Parking Aid Rear 90 degrees Outer	-	4	Enquire
10	8D33090400AA	Heat Shield, Sensor, Parking Aid	8D33090400AA Heat Shield, Sensor, Parking Aid V8S/12.25MY	-	2	Enquire
10	6G3315A860AA	SWITCH - REAR PARKING DISTANCE	6G3315A860AA SWITCH - REAR PARKING DISTANCE	-	1	Enquire
