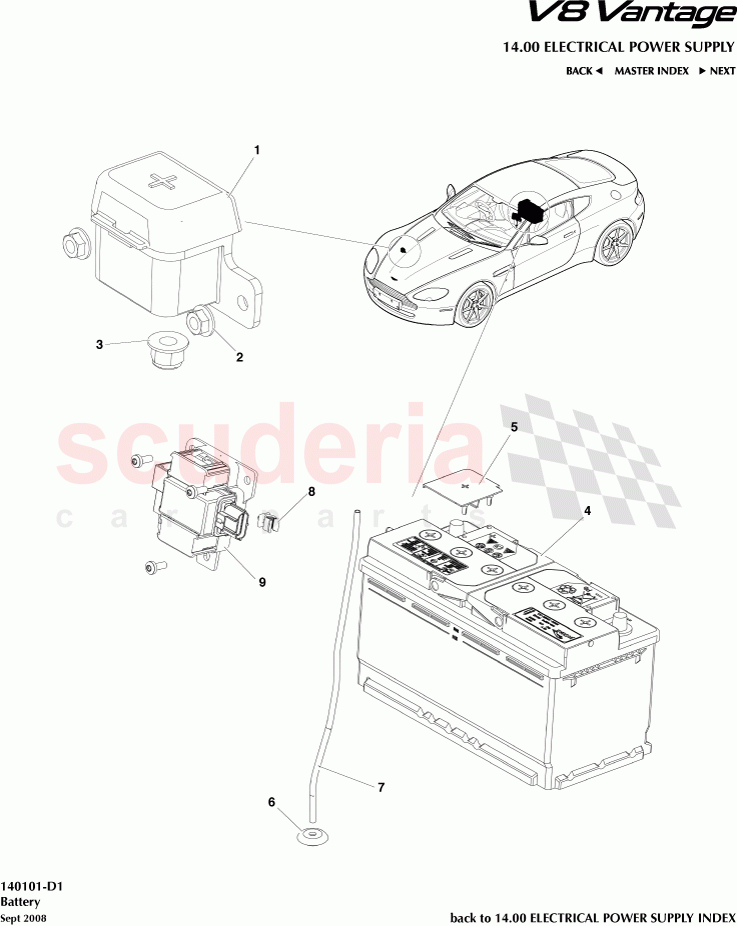

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3314B600BF	Jumpstart Terminal Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703216PK	NUT M8 HEXAGON FLANGED (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785928	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE)	Enquire	To Order
	3785928/WM	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS(SAE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710115	BATTERY TERML COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781850	Grommet, battery vent tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372636AA	Tube, Battery Vent, 390mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4379125AA	CLIP - BRAKE PIPE DOUBLE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G3314B600BF	Jumpstart Terminal Assy	6G3314B600BF Jumpstart Terminal Assy	-	1	Enquire
2	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
3	703216PK	NUT M8 HEXAGON FLANGED (PACK OF 10)	703216PK NUT M8 HEXAGON FLANGED (PACK OF 10)	-	1	Enquire
4	3785928	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE)	3785928 BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE) -UK Only	-	1	Enquire
4	3785928/WM	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS(SAE)	3785928/WM BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS(SAE)	-	1	Enquire
5	4G433710115	BATTERY TERML COVER	4G433710115 BATTERY TERML COVER	-	1	Enquire
6	3781850	Grommet, battery vent tube	3781850 Grommet, battery vent tube	-	1	Enquire
7	1R12372636AA	Tube, Battery Vent, 390mm	1R12372636AA Tube, Battery Vent, 390mm	-	1	Enquire
8	4G4379125AA	CLIP - BRAKE PIPE DOUBLE	4G4379125AA CLIP - BRAKE PIPE DOUBLE 07MY	-	1	Enquire
9	1R12370397AE	Switch - Battery Disconnect	1R12370397AE Switch - Battery Disconnect 06 & 06.5MY	-	1	Enquire
9	7G43370397AC	Battery Disconnect Switch	7G43370397AC Battery Disconnect Switch 07MY	-	1	Enquire
