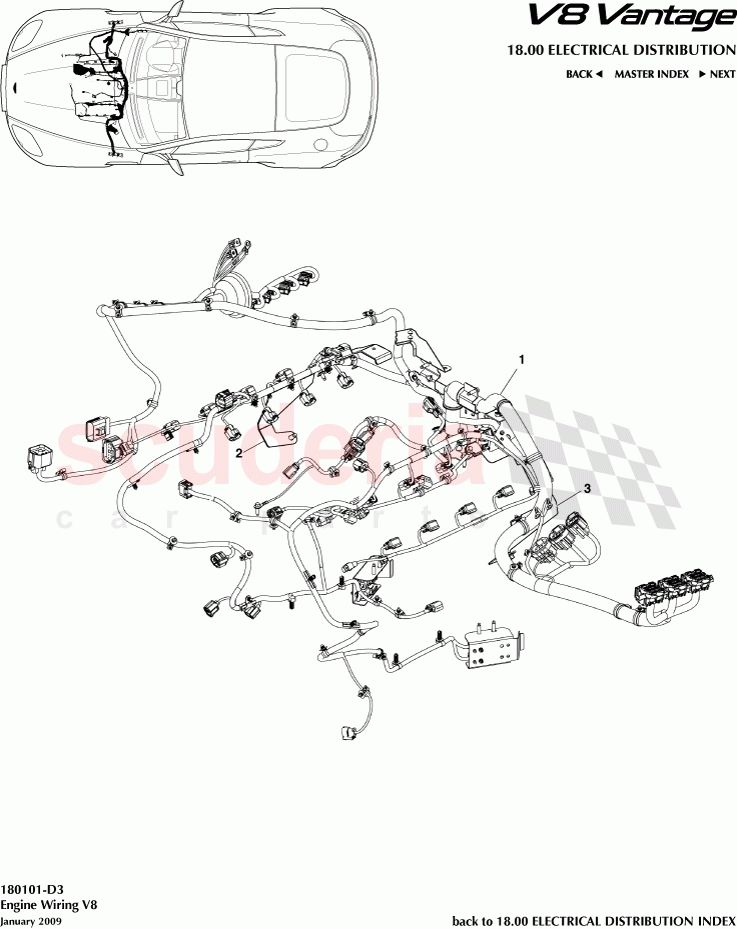

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3314W163AA	Bracket, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337C078AC	Harness assy, AXLE TRANSMISSION ASM (7 SPEED)	Enquire	To Order
	BG3314W163HA	Bracket, Engine Wiring Support	Enquire	To Order
	BG3314W163AC	Bracket, Wiring Harness assy	Enquire	To Order

...and 7 more part variants. See table on right for more details.

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G3312B637AA	HARNESS ASSY ENGINE	8G3312B637AA HARNESS ASSY ENGINE 08MY From (V) D07649	-	1	Enquire
1	6G3312B637AG	HARNESS ASSY ENGINE	6G3312B637AG HARNESS ASSY ENGINE 07MY	-	1	Enquire
1	9G3312B637AC	HARNESS ASSY ENGINE	9G3312B637AC HARNESS ASSY ENGINE 09MY	-	1	Enquire
1	BG3312B637AC	HARNESS ASSY ENGINE	BG3312B637AC HARNESS ASSY ENGINE V8 S	-	1	Enquire
2	6G3314W163AA	Bracket, RHS	6G3314W163AA Bracket, RHS	-	1	Enquire
3	BG337C078AC	Harness assy, AXLE TRANSMISSION ASM (7 SPEED)	BG337C078AC Harness assy, AXLE TRANSMISSION ASM (7 SPEED)	-	1	Enquire
3	BG3314W163HA	Bracket, Engine Wiring Support	BG3314W163HA Bracket, Engine Wiring Support	-	1	Enquire
3	BG3314W163AC	Bracket, Wiring Harness assy	BG3314W163AC Bracket, Wiring Harness assy	-	1	Enquire
3	BG3314W163BC	Bracket, Wiring Harness assy	BG3314W163BC Bracket, Wiring Harness assy	-	1	Enquire
3	BG3314A004AA	Bracket, HEGO INLINE Conn	BG3314A004AA Bracket, HEGO INLINE Conn	-	1	Enquire
3	BG339137KB	Harness, CPS link	BG339137KB Harness, CPS link	-	1	Enquire
3	6G3314W163BA	Bracket, LHS	6G3314W163BA Bracket, LHS	-	1	Enquire
3	702565	BOLT M6 X 16	702565 BOLT M6 X 16	-	1	Enquire
3	702298	BOLT M8x16 HEX FLG	702298 BOLT M8x16 HEX FLG	-	1	Enquire
3	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	1	Enquire
